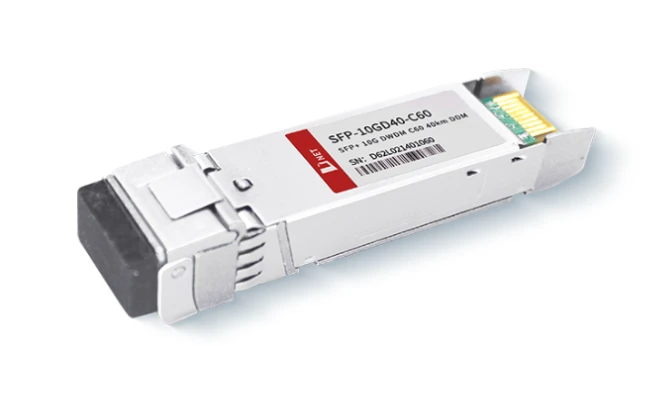

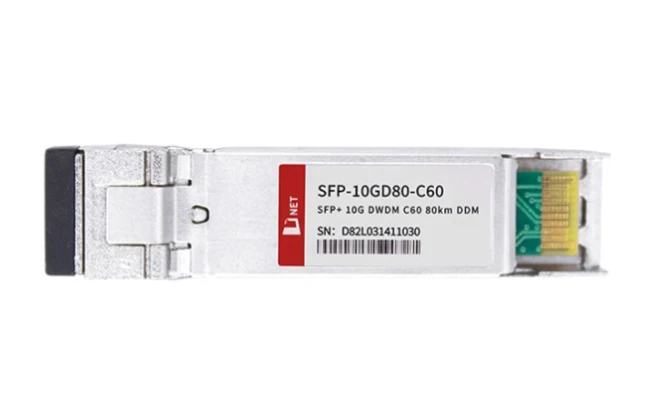

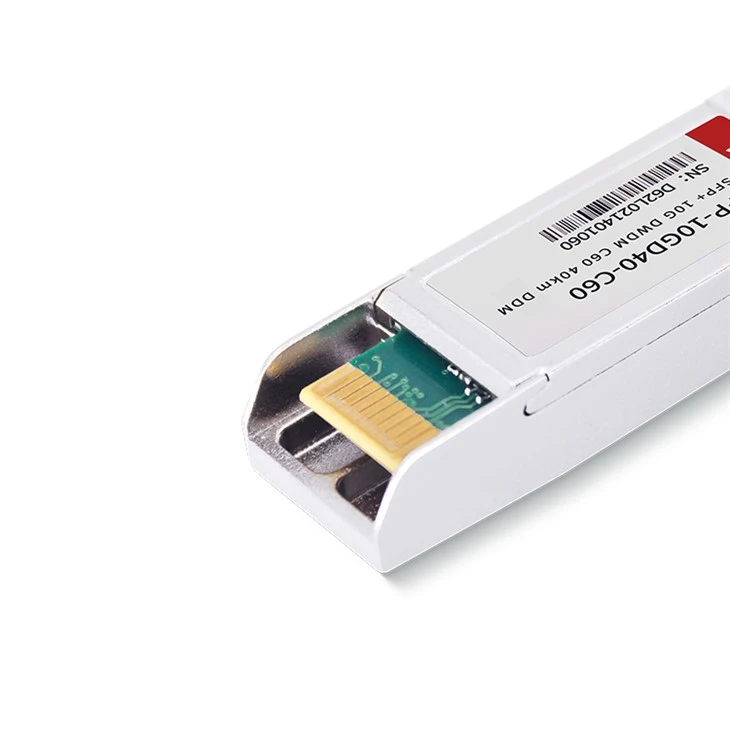

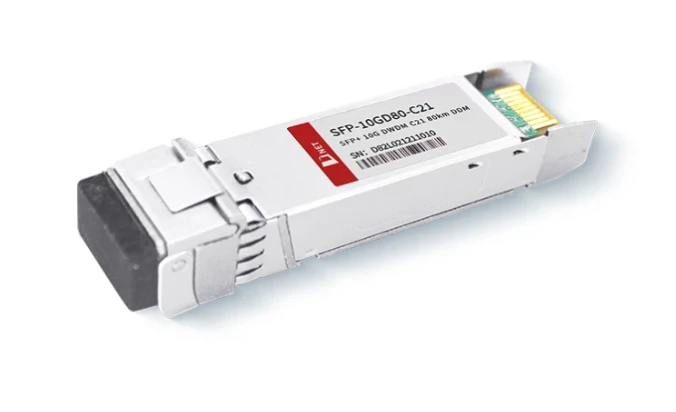

What is SFP+ Transceivers
SFP+ (Small Form-factor Pluggable Plus) transceivers are compact, hot-pluggable optical modules used for data communication and telecommunication networking. They are designed to offer a high-speed connection with a maximum transfer rate of up to 10 Gbps. These transceivers can support various types of networks, including local area networks (LANs), metropolitan area networks (MANs), and storage area networks (SANs).
The "SFP" in SFP+ stands for Small Form-factor Pluggable, which signifies the module's size and the fact that it can be plugged into a port on a network device such as switches, routers, or servers. The "+" denotes an enhancement over the standard SFP, providing higher speed and more advanced features.
Benefits of SFP+ Transceivers
High speed
SFP+ transceivers can operate at data rates up to 10 Gbps, making them ideal for high-throughput networking environments. This high speed enables efficient data transfer, which is essential for applications such as cloud computing, data center interconnects, and high-frequency trading.
Flexibility and scalability
SFP+ modules are hot-swappable, allowing network administrators to upgrade or expand their network infrastructure without shutting down the system. They can easily replace or add new modules to accommodate changing network needs or upgrade to higher speeds without replacing the entire hardware.
Energy efficiency
Compared to earlier generations of optical modules, SFP+ transceivers are designed to be more energy-efficient. They consume less power while maintaining high-speed data transmission, contributing to lower operational costs and reduced environmental impact.
Wide range of applications
SFP+ transceivers support various applications due to their compatibility with different fiber types and wavelengths. Whether it’s for short distances within a data center or longer distances between data centers, SFP+ provides versatile connectivity solutions.
Cost-effectiveness
By allowing for modular upgrades, SFP+ transceivers help organizations avoid the cost of upgrading entire systems. Network administrators can simply swap out older modules with newer ones to take advantage of improved technology without incurring the expense of a complete hardware overhaul.
Compact size
With their small form factor, SFP+ modules save space within network equipment, allowing for more efficient use of space in high-density environments. This compactness also contributes to better airflow and cooling within network devices, enhancing overall system reliability.
Digital diagnostics monitoring
SFP+ modules feature built-in digital monitoring capabilities, which allow for real-time performance analysis. Network administrators can monitor parameters such as optical output power, received input power, and temperature, enabling proactive troubleshooting and minimizing downtime.
Interoperability
SFP+ transceivers are designed for interoperability across different vendors' equipment, providing network administrators with the freedom to choose components based on performance and cost rather than being locked into a single vendor's ecosystem.
Network optimization
Due to their high-speed capabilities, SFP+ transceivers enable network optimization by supporting high-bandwidth applications and reducing latency, which is critical for time-sensitive applications like financial services and online gaming.
Reduced complexity
By using standardized SFP+ modules, network configurations become simpler, reducing the complexity of managing and maintaining the network infrastructure. This simplicity can lead to faster deployment times and easier troubleshooting.
SFP+ 10G SR (short reach)
Designed for use over multimode fiber with a typical reach of up to 300 meters (using OM3 fiber) and up to 550 meters (using OM4 fiber). They operate at a wavelength of 850 nm and are commonly used for connections within a data center.
SFP+ 10G LR (long reach)
Optimized for use on single-mode fiber, offering a reach of up to 10 kilometers at a wavelength of 1310 nm. This type is well-suited for connections between buildings or data centers in close proximity.
SFP+ 10G ER (extended reach)
Extends the reach on single-mode fiber even further, typically providing a range of up to 40 kilometers at a wavelength of 1550 nm. These transceivers employ optical amplifiers or Erbium-doped fiber amplifiers (EDFAs) to maintain signal strength over longer distances.
SFP+ 10G ZR (zero dispersion reach)
Similar to ER transceivers, ZR modules are designed for even longer reaches of up to 80 or 120 kilometers. They operate at a wavelength of 1550 nm and are optimized for transparent DWDM (Dense Wavelength Division Multiplexing) networks, allowing for high-capacity point-to-point links.
SFP+ BiDi (bidirectional)
Utilize both strands of a single-mode fiber for transmission in opposite directions, effectively doubling the distance of a single-strand link. They achieve this by transmitting one data channel on one wavelength and another channel on the counter-propagating wavelength on the other strand. BiDi modules can extend the reach of LR or ER applications significantly.
SFP+ DAC (direct attach copper)
These are copper-based cables with SFP+ connectors at each end. They are used for short distances (usually up to 10 meters) and offer a cost-effective solution for high-speed interconnects within a rack or between adjacent racks.
SFP+ AOC (active optical cable)
Like DAC, AOCs are used for short-range applications but are made from fiber optics instead of copper, offering longer reach capabilities (up to several hundred meters) without significant signal loss.
Material of SFP+ Transceivers
SFP+ transceivers are comprised of multiple materials that contribute to their functionality, durability, and efficiency. The primary materials used in their construction include:
Optoelectronic components: These are the core functional elements of SFP+ transceivers. They include:
● Laser Diodes (LDs) or Light Emitting Diodes (LEDs) for transmitters: These convert electrical signals into optical signals. LDs are typically used for higher-speed transceivers, while LEDs may be used for shorter distances and lower data rates.
● PIN Photodiodes or APDs for receivers: These convert incoming optical signals back into electrical signals. Avalanche Photodiodes (APDs) are often used for higher sensitivity and longer distances.
Fiber optic components: SFP+ transceivers are designed to work with either multimode or single-mode optical fibers. Key components include:
● Ferrule made from ceramic materials: Houses and protects the fiber, aligning it precisely with the optoelectronic component for efficient light transmission and reception.
● Optical Fiber itself: Multimode fiber is typically made from glass or plastic and has a larger core diameter (50/62.5 microns), while single-mode fiber is made from pure silica and has a smaller core (9 microns).
Physical housing: The outer shell or casing of an SFP+ transceiver is usually made from metal such as aluminum or steel, providing structural integrity and heat dissipation properties. It may also have a plastic over-molded section for strain relief and protection of the cabling interface.
Electrical contacts and boards: Inside the housing, there is a printed circuit board (PCB) that connects to the host device's electrical interface. Gold or gold-plated contacts are often used for these connections to ensure good electrical conductivity and resistance to corrosion.
Wavelength management materials: For transceivers operating at specific wavelengths, materials like filters or Bragg gratings may be used to ensure that only the desired wavelength is transmitted or received.
Thermal management materials: To manage the heat generated by the laser and electrical components, SFP+ transceivers may incorporate heat sinks, thermal pads, or other conductive materials to dissipate heat effectively.
Environmental protection materials: Materials such as silicone gel or rubber gaskets might be used to seal the transceiver and protect against dust, moisture, and other environmental factors that could affect performance.
The selection of these materials is critical to achieving the desired performance, reliability, and longevity of SFP+ transceivers. Manufacturers balance cost, performance, and the need to comply with industry standards when choosing the materials for their transceivers.
Application of SFP+ Transceivers
Data centers
SFP+ transceivers are integral to the interconnect infrastructure within data centers. They enable high-density installations, allowing for greater port counts per line card, and support the backplane and cabling needs for data rates up to 10 Gbps. In short-reach scenarios, SFP+ SR modules using multimode fiber facilitate connectivity between servers, switches, and storage systems.
Metro networks
In metropolitan areas, SFP+ transceivers are deployed for their ability to handle large amounts of data traffic efficiently. The SFP+ LR and ER variants are particularly suited for these environments, providing the necessary reach to connect network nodes spread across cities, with distances ranging from 10 km to 40 km, respectively.
Long-haul transport systems
While not as common as other types due to the emergence of CFP and QSFP families, some SFP+ ZR modules are designed for long-haul fiber optic networks. These transceivers can support DWDM systems, enabling the transport of 10 Gbps channels over extended distances, often exceeding 100 km.
Wireless base stations
The backhaul connections between cell towers and core networks often benefit from SFP+ transceivers. They provide the necessary bandwidth to handle the increasing data demands of modern wireless services, including 4G LTE and early 5G deployments.
Storage area networks (SANs)
SFP+ transceivers play a role in connecting storage arrays and enabling high-speed data retrieval and storage. They support the high-throughput requirements of enterprise SAN environments, ensuring swift access to vital data.
Enterprise networks
Within corporate environments, SFP+ transceivers can be found connecting different floors of a building or linking geographically separated offices within a campus. Their flexibility allows for tailored solutions based on the specific connectivity needs of the organization.
Video surveillance
With the rise of high-definition video feeds, SFP+ transceivers are increasingly used in surveillance systems to transmit video data between cameras and recording/storage locations with minimal latency and packet loss.
Process of SFP+ Transceivers
Design and prototyping
Engineers design the transceiver architecture, considering the required optical specifications, electrical interfaces, form factor constraints, and compliance with relevant industry standards (e.g., SFF-8431, SFP-10G-SR, SFP-10G-LR, etc.). Prototypes are created and tested to refine the design before moving to mass production.
Component selection and procurement
Critical components such as lasers, photodiodes, optical fibers, PCBs, and metal casings are sourced from reputable suppliers. Components must meet stringent quality criteria to ensure they perform as intended in the transceiver assembly.
Assembly
Components are assembled with precision machinery in cleanroom environments to prevent contamination that could affect optical performance. Assembly typically involves:
Attaching the ferrule and fiber to the laser or photodiode to establish the optical pathway.
Soldering the electrical components onto the PCB according to the circuit design.
Installing the PCB into the metal or plastic housing and securing it in place.
Connecting any additional diagnostic or monitoring hardware if digital optical monitoring (DOM) is required.
Testing
After assembly, each transceiver undergoes rigorous testing to verify its functionality and adherence to specifications. Tests include:
Optical output power measurement to ensure it falls within acceptable limits.
Receiver sensitivity testing to confirm the module's ability to detect weak signals without error.
Transmission tests to check for signal integrity over the specified distance and bandwidth.
Environmental tests, such as temperature cycling and humidity exposure, to assess reliability under varying conditions.
Electrical tests to ensure proper interaction with the host device, including correct insertion loss, return loss, and crosstalk.
Programming and calibration
Many SFP+ transceivers are equipped with onboard memory chips that store configuration information and firmware. These chips are programmed with the appropriate settings and calibrated to optimize performance.
Final inspection
Prior to packaging, transceivers undergo a final visual inspection and a random sampling of performance tests to ensure no defects were introduced during handling or packaging.
Packaging and shipping
Once approved, the transceivers are securely packaged to protect them from physical damage during shipping and are dispatched to distributors, resellers, or end customers.
Components of SFP+ Transceivers
Optoelectronic modules: This includes the laser diode (for transmitting light) and the photodiode (for receiving light). The laser diode is often a DFB (Distributed Feedback) or Fabry-Pérot laser that operates at a precise wavelength. The photodiode is typically an PIN photodiode that converts incoming optical signals into electrical ones.
Ferrules and lenses: Ferrules hold the optical fibers in place and maintain alignment with the active elements of the transceiver. Lenses (often integrated into the ferrule design) are used to couple the light efficiently between the optical fiber and the active components.
Circuit board (PCB): This serves as the backbone of the transceiver, routing electrical signals to and from the active optical components. The PCB also houses control circuits and memory for transceiver identification and monitoring.
Digital optical monitoring (DOM) capability: Some SFP+ transceivers feature DOM functionality, which allows real-time monitoring of parameters such as received optical power, transmitted optical power, temperature, and supply voltage. This is facilitated by an EEPROM chip on the PCB that stores transceiver data and firmware.
Driver and transimpedance amplifier (TIA): The driver is an electrical component that modulates the current from the laser diode to create the desired optical signal. The TIA, on the other hand, amplifies the faint electrical signals from the photodiode to levels suitable for subsequent processing.
Optical filtering elements: Optical filters may be incorporated to improve signal quality by reducing noise and interference, especially in DWDM (Dense Wavelength Division Multiplexing) applications.
Casing and mechanical components: The transceiver housing provides protection and structural support. It also includes a latch mechanism that secures the transceiver in place within a host device, such as a switch or router.
Electrical interface: Contacts or pins on the edge of the transceiver connect to the host device to provide power and data pathways. These interfaces are standardized to ensure compatibility across different manufacturers’ equipment.
Wavelength management: For tunable SFP+ transceivers, there may be additional components such as a tuneable laser or filter to allow the wavelength to be adjusted dynamically.
How to Maintain SFP+ Transceivers
Regular inspection
Visually inspect the transceivers and their connection points for any signs of physical damage, dirt accumulation, or bent connectors. Ensure that the transceivers are firmly seated in their sockets.
Cleaning
Use proper techniques and tools to clean the transceiver's optical ports. A lint-free cloth dampened with isopropyl alcohol can be used for cleaning. Never touch the optical end faces to avoid contamination.
Temperature and humidity control
Operate transceivers within the recommended environmental conditions. Extreme temperatures and humidity levels can degrade the performance and lifespan of the transceiver components.
Proper handling
When handling SFP+ transceivers, use antistatic wrist straps and mats to prevent electrostatic discharge (ESD) that could damage sensitive electronic components.
Ensuring firm connections
Make sure that transceivers are properly inserted into their sockets. Loose connections can cause intermittent errors and signal losses.
Software updates
Keep the firmware of your network devices updated, as updates may include improvements to the way they interact with SFP+ modules.
Monitoring and diagnostics
Utilize the digital optical monitoring (DOM) capabilities of the transceiver if available. This can provide insights into the health of the transceiver, such as temperature, voltage, and error rates, allowing for proactive maintenance.
Regular testing
Periodically test the transceivers to verify they are performing within specifications. This can be done using built-in loopback tests or external test equipment.
Transceiver replacement
Replace transceivers that show signs of failure, such as increased bit error rates, decreased throughput, or physical damage. Do not attempt to repair damaged transceivers; they should be replaced with new ones.
Record keeping
Maintain records of transceiver inventory, installation dates, and maintenance history. This aids in tracking performance trends and predicting potential issues.
Compliance with standards
Ensure that all transceivers comply with the industry standards they are designed for, such as the SFP MSA (Multi-Source Agreement), to ensure compatibility and reliability.
Training
Educate staff responsible for transceiver maintenance about best practices to minimize human error and ensure that maintenance procedures are followed correctly.
How to Choose SFP+ Transceivers
Network equipment compatibility
Verify that the chosen transceiver is compatible with the switches, routers, or other network devices you intend to use it with. Check the equipment manufacturer's specifications for supported SFP+ models.
Cable type and length
Determine the type of cable infrastructure in place (single-mode or multi-mode fiber) and its length. Select a transceiver that matches the cable type and is rated for the intended distance.
Data rate requirements
Choose a transceiver that supports the required data rate of your network. SFP+ transceivers typically support speeds up to 10 Gbps, but make sure it meets or exceeds your network's speed demands.
Wavelength options
Decide on the appropriate wavelength for your application. Different transceivers operate at different wavelengths, and some networks use specific wavelengths to avoid interference.
Distance categories
Transceivers are categorized by the maximum transmission distance they can support. Select a transceiver that aligns with the maximum distance you need to cover.
Duplex vs. Singlemode
Decide whether you need a simplex or duplex transceiver. Duplex transceivers support simultaneous two-way communications, which is standard for most Ethernet networks.
Certifications and standards compliance
Ensure that the transceiver complies with relevant industry standards, such as the SFP MSA, IEEE 802.3, and others pertinent to your region and network protocols.
Power consumption
Consider the power consumption of the transceiver, as it can impact cooling requirements and energy costs in large installations.
Additional features
Look for features like Digital Optical Monitoring (DOM) capability, which allows for real-time monitoring of transceiver health and performance.
Cost
Compare prices from different vendors while ensuring that the chosen transceiver meets all necessary criteria. Cheaper options might sacrifice quality or reliability.
Vendor reputation and support
Choose a reputable vendor that offers good customer support. In case of issues, you'll want access to technical assistance and possibly firmware updates.
Warranty and return policy
Check the warranty period offered by the manufacturer and the return policy in case the transceiver doesn't meet expectations or fails prematurely.
Working Principle of SFP+ Transceivers
SFP+ (Small Form-factor Pluggable Plus) transceivers are compact, hot-swappable modules used for data communication and telecommunication networking. They enable high-speed data transfer rates up to 10 Gbps over distances ranging from short reaches to several kilometers, depending on the type of fiber optic cable used. The working principle of an SFP+ transceiver involves the following stages:
Electrical to optical conversion: When data enters the SFP+ module in electrical form from a host device (such as a switch or router), it is converted into optical form by an integrated circuit known as a photoelectric converter. This conversion is facilitated by a laser diode (for transmitting light) or a photodiode (for receiving light) within the module.
Optical signaling: The laser diode emits light signals that correspond to the incoming electrical data. These light pulses travel through the attached fiber optic cable, which has low signal loss characteristics, especially in single-mode fibers that allow for longer transmission distances.
Optical to electrical conversion: At the receiving end, the incoming optical signals are captured by a photodiode within the SFP+ module. The photodiode converts the optical signals back into electrical signals. This process is highly efficient and accurate, allowing for minimal data loss or corruption during transmission.
Signal processing: After the optical to electrical conversion, electronic circuits within the SFP+ module condition the signal, which may involve tasks such as amplification, reshaping, and re-timing (3R functions) to prepare it for further processing by the receiving host device.
Protocol and data handling: The electrical signal is then passed on to the networking equipment where it is decoded according to the specific protocol being used. This allows the data to be interpreted and utilized by the network as intended.
Digital optical monitoring (DOM): Some SFP+ transceivers have DOM functionality, which allows the network to monitor various parameters such as the received optical power, transmitted optical power, and operating temperature. This enables proactive management of the transceiver's health and performance.
The SFP+ transceiver is designed to be interchangeable, allowing network administrators to replace or upgrade modules without having to replace the entire network device. Its small form factor makes it suitable for high-density installations where space is at a premium. The transceiver's ability to handle high-speed data transmission over fiber optics makes it a critical component in modern data centers and high-performance computing environments.
