Product Details
The QSFP28 40KM transceiver from D-NET is specifically designed for optical communication applications over 40 kilometers. The QSFP28 ER4 40KM converts four input channels of electrical data, each operating at 25.78125Gb/s, into a four-channel LAN WDM optical signal. This signal is then multiplexed into a single-mode fiber using an industry-standard LC connector, enabling the transmission of 103.125Gb/s optical data over 40km of SMF with the aid of Forward Error Correction (FEC). The 100G ER4 40KM module is extensively utilized in 100GBASE-ER4 Ethernet links, OTN OTU4 4L1-9C1F configurations, and client-side 100G Telecom connections.
Hot Tags: QSFP28 100G ER4 40KM transceiver module, China QSFP28 100G ER4 40KM transceiver module manufacturers, suppliers, factory, QSFP28-100G-ZR4, QSFP28-100G-ZR4, , QSFP28-100G-LR4, QSFP28-100G-SR4, QSFP28-100G-ER4

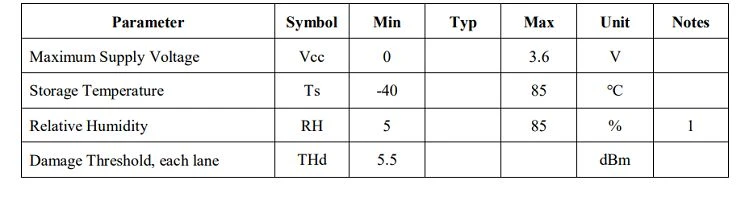

Absolute Maximum Ratings
It has to be noted that the operation in excess of any individual absolute maximum ratings might cause permanent damage to this module.
Operating Environments
Electrical and optical characteristics below are defined under this operating environment, unless otherwise specified.

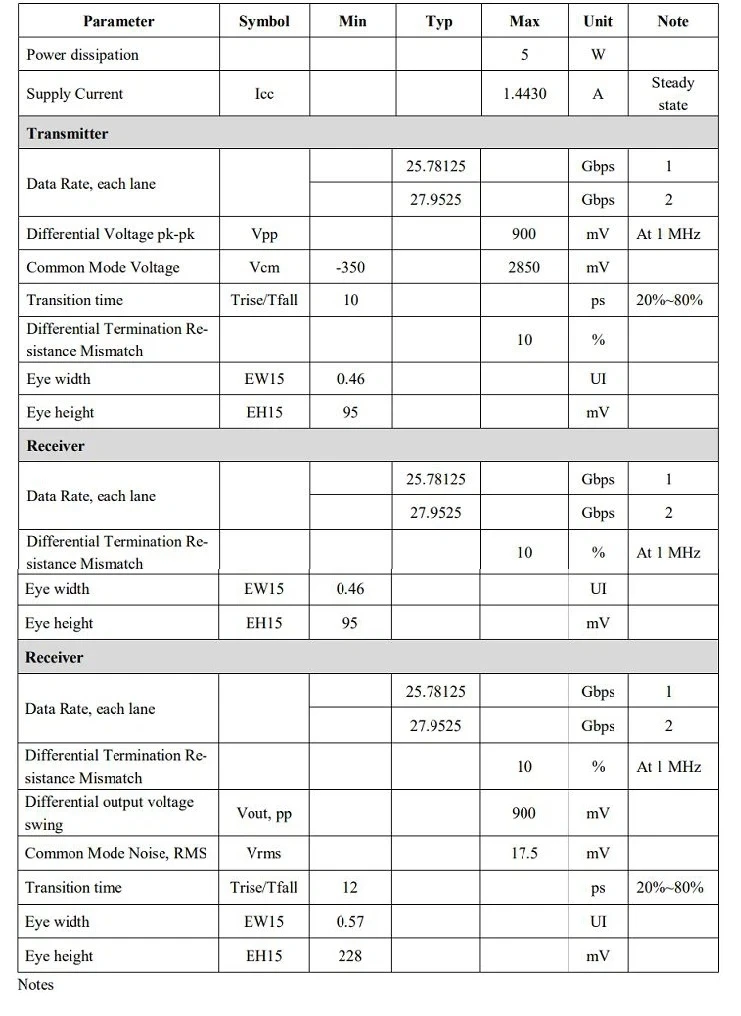

Electrical Characteristics
1. For use of 100GBASE-ER4.
2. For use of OTU4.

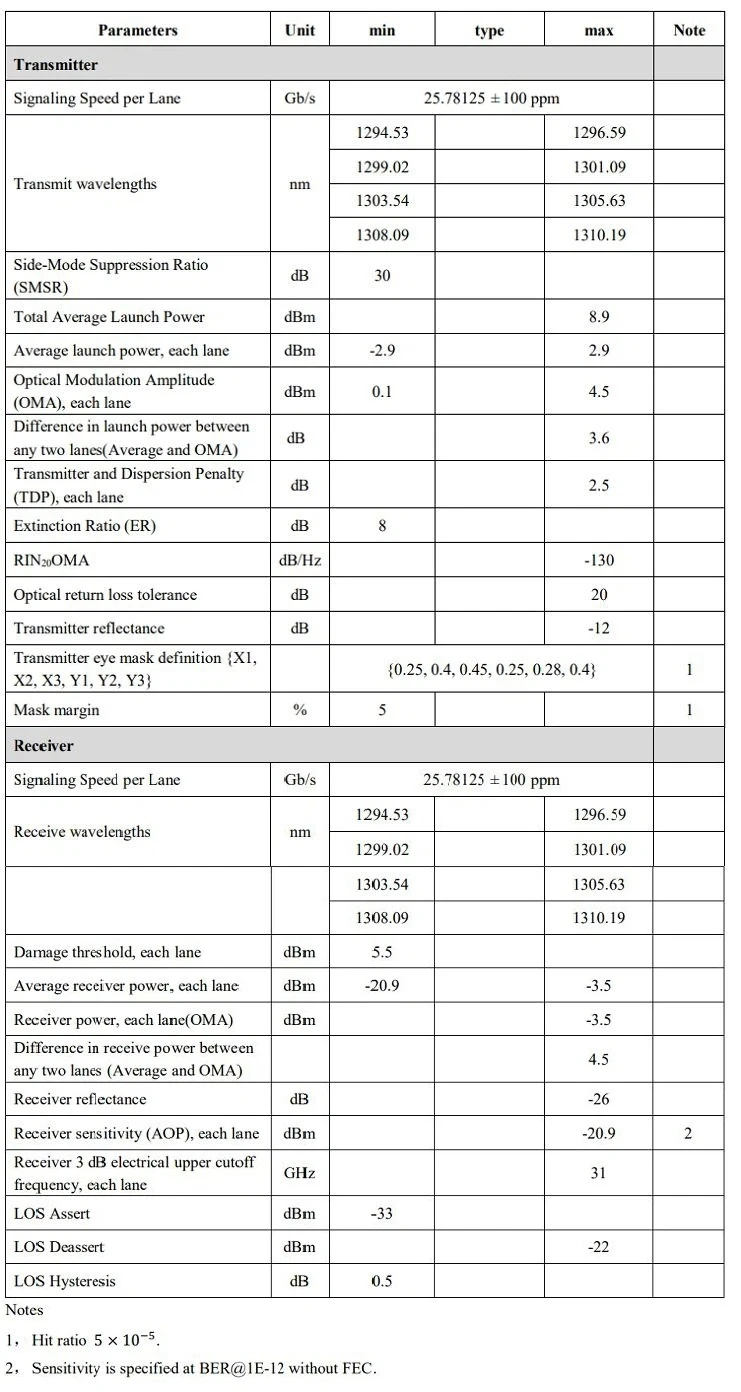

Optical Characteristics
Ordering Information
|
Part Number |
Description |
|
QSFP28-ER4 |
100G QSFP28 40KM ER4 transceiver module with full real- time digital diagnostic monitoring and pull tab |
FAQ
1. What is 100GBASE ER4 standard?
A: The QSFP28 40KM transceiver is a 100Gb/s transceiver module designed for 40km optical communication.It is suitable for single-mode optical fiber (SMF) and the working wavelength was 1310nm.
2. What is the wavelength of 100G ER4 40KM module?
A: The central wavelengths of the 4 LAN WDM channels are 1295.56, 1300.05, 1304.58 and 1309.14nm as members of the LAN WDM wavelength grid defined in IEEE 802.3ba.
