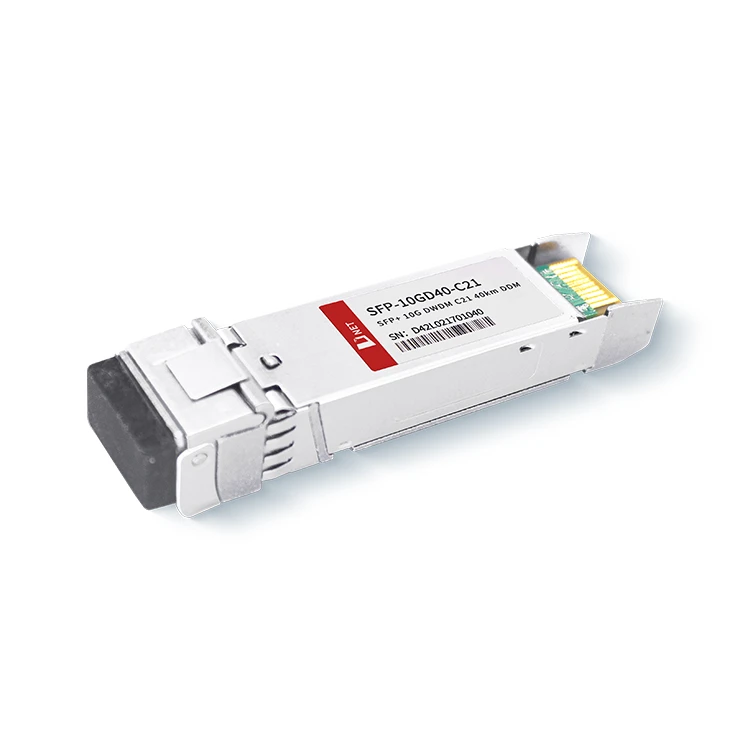

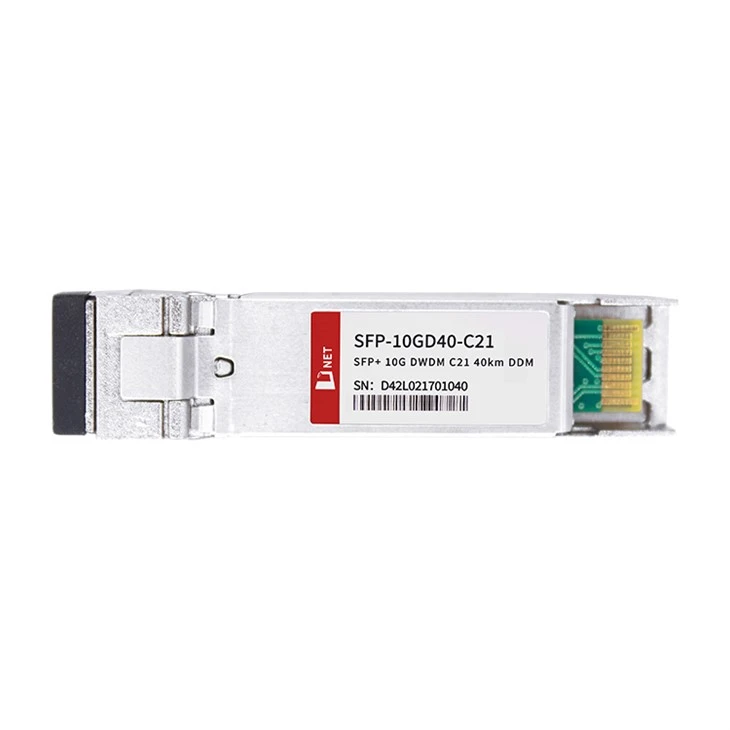

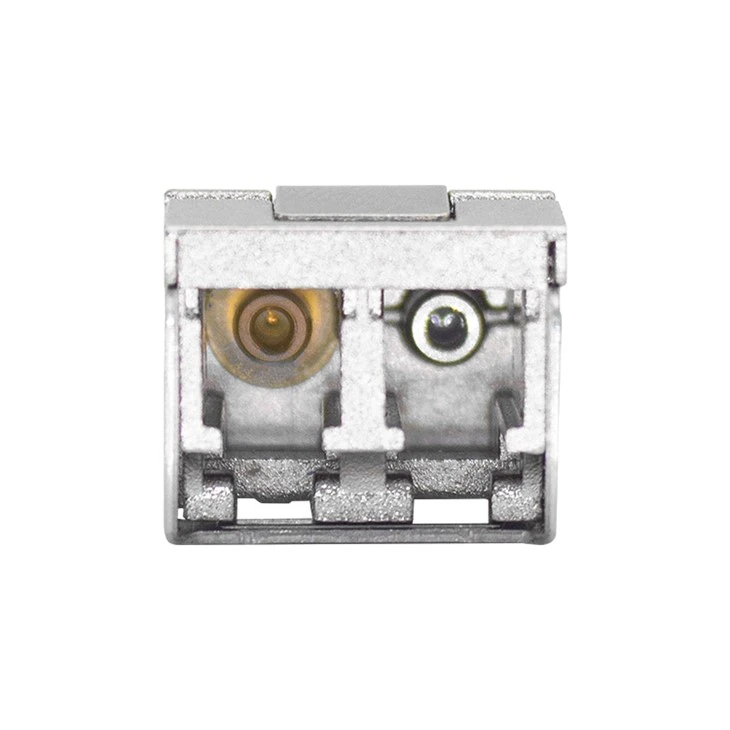

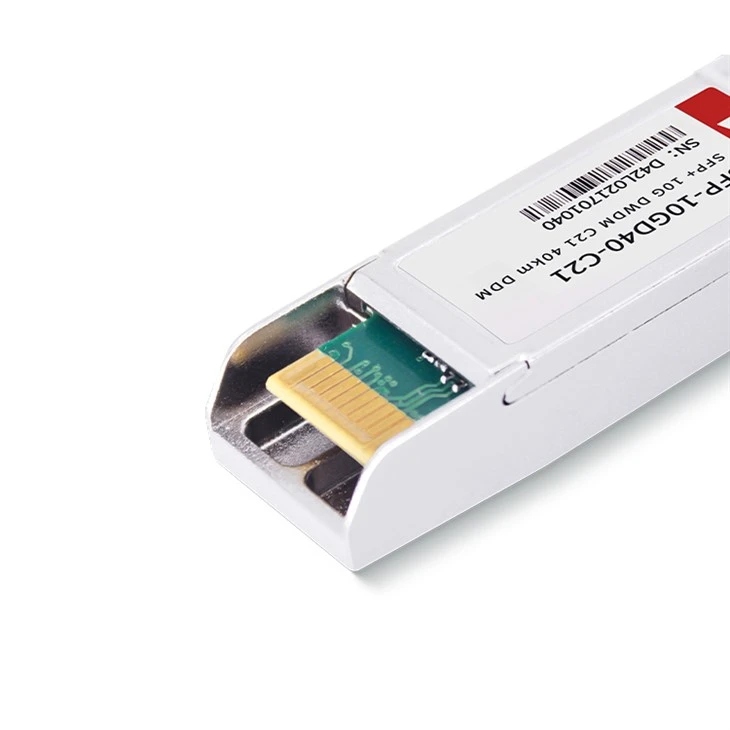

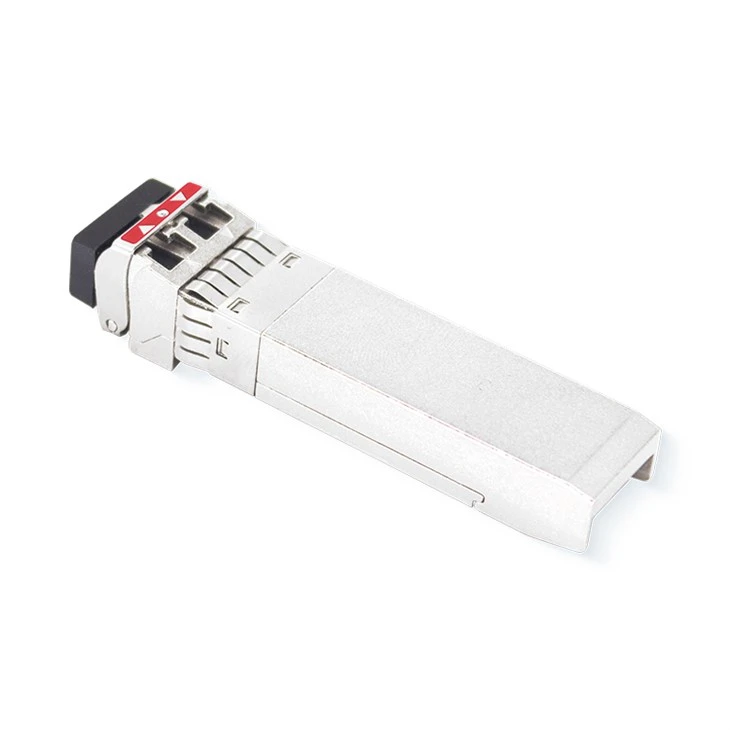

The SFP+ DWDM 40KM transceiver comprises three main components: a cooled EML laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA), and an MCU control unit. All modules meet Class I laser safety standards. These 10G DWDM 40KM transceivers are compatible with the SFP Multi-Source Agreement and support the SFF-8472 digital diagnostics functions. The 10G SFP+ DWDM C21 40KM modules find extensive application in 10Gbps DWDM optical systems, specifically 10GBASE-ZR operating at 10.3125Gbps, 10GBASE-ZW operating at 9.953Gbps, LTE systems, and other optical links.
Hot Tags: SFP+10G DWDM C21 40km, China SFP+10G DWDM C21 40km manufacturers, suppliers, factory, SFP-10G-DWDM-C21-40, SFP-10G-DWDM-C60-40, SFP-10G-DWDM-C21-80, SFP-10G-DWDM-C21-80, SFP-10G-DWDM-C60-80
Absolute Maximum Ratings
|
Parameter |
Symbol |
Min. |
Max. |
Unit |
|
Supply Voltage |
Vcc |
-0.5 |
4.5 |
V |
|
Storage Temperature |
TS |
-40 |
+85 |
°C |
|
Operating Humidity |
- |
5 |
85 |
% |
Recommended Operating Conditions
|
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
|
Operating Case Temperature |
TC |
0 |
+70 |
°C |
|
|
Power Supply Voltage |
VCC |
3.135 |
3.30 |
3.465 |
V |
|
Power Supply Current |
ICC |
1200 |
550 |
mA |
|
|
Data Rate |
8.0 |
10.3 |
10.7 |
Gbps |
Optical and Electrical Characteristics
|
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
Notes |
|
|
Transmitter |
|||||||
|
Centre Wavelength |
λc |
1528.77 |
1563.05 |
nm |
|||
|
Spectral Width (-20dB) |
Δλ |
1 |
nm |
||||
|
Side Mode Suppression Ratio |
SMSR |
30 |
- |
dB |
|||
|
Average Output Power |
Pout |
-1 |
+2 |
dBm |
1 |
||
|
Extinction Ratio |
ER |
6.0 |
dB |
||||
|
Data Input Swing Differential |
VIN |
180 |
850 |
mV |
2 |
||
|
Input Differential Impedance |
ZIN |
90 |
100 |
1 10 |
Ω |
||
|
TX Disable |
Disable |
2.0 |
VCC |
V |
|||
|
Enable |
0 |
0.8 |
V |
||||
|
TX Fault |
Fault |
2.0 |
VCC |
V |
|||
|
Normal |
0 |
0.8 |
V |
||||
|
Receiver |
|||||||
|
Centre Wavelength |
λc |
1450 |
1620 |
nm |
|||
|
Receiver Sensitivity |
-15.5 |
dBm |
3 |
||||
|
Receiver Overload |
0 |
dBm |
3 |
||||
|
LOS De-Assert |
LOSD |
-17 |
dBm |
||||
|
LOS Assert |
LOSA |
-28 |
dBm |
||||
|
LOS Hysteresis |
0.5 |
4 |
dB |
||||
|
Data Output Swing Differential |
Vout |
300 |
900 |
mV |
4 |
||
|
LOS |
High |
2.0 |
Vcc |
V |
|||
|
Low |
0.8 |
V |
|||||
Ordering Information
|
Part Number |
Description |
|
SFP-10GD40-C21 |
10G SFP+ DWDM C21 40KM Transceiver, Single Mode, 40km Reach |
FAQ
1. What cable is used for SFP+?
A: SFP + cable is a high speed cable with SFP+ connector modules at both ends. It uses the connector to transmit and receive data for 10Gbps.
2. What is the voltage of SFP+?
A: The DC impedance of SFP+ inductance should be less than 1 ohm to ensure that the supply voltage of SFP+ is stable at 3.3V.
