Features
● Supports 9.95 to 11.3Gb/s bit rates
● Hot-Pluggable

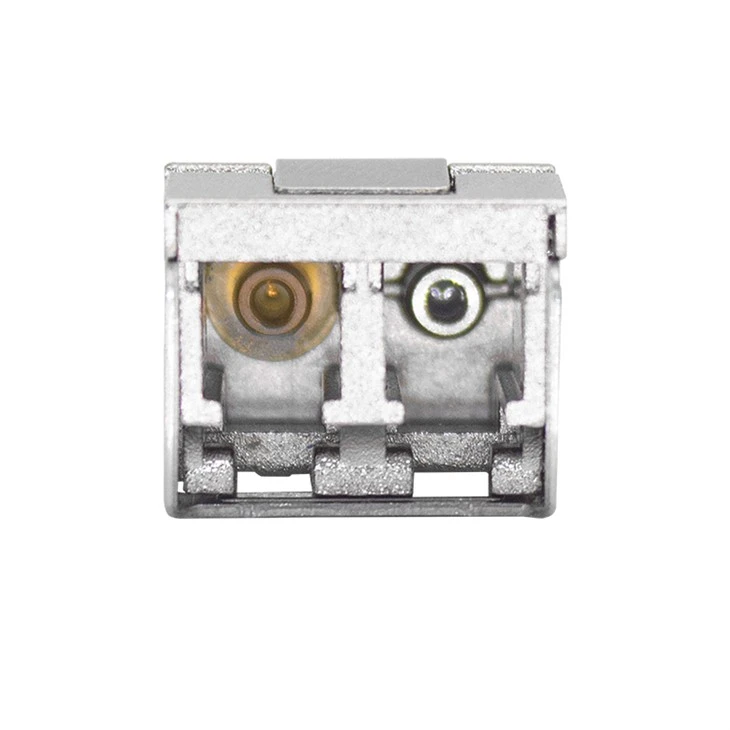

● Duplex LC connector
● 1270nm CWDM DFB transmitter, PIN photo-detector
● SMF links up to 10km
● Metal case package reduces electromagnetic interference
● RoHS compliant
Product Details

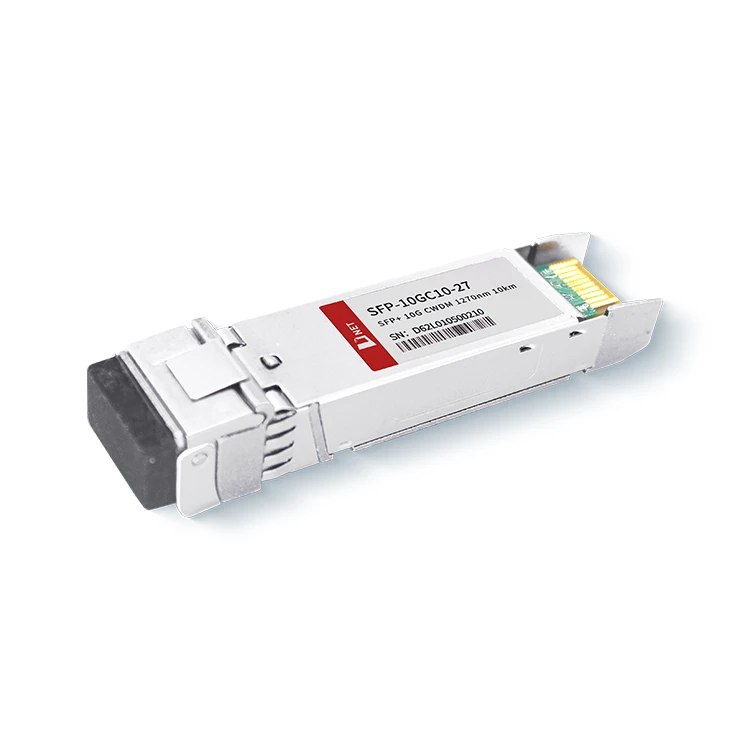

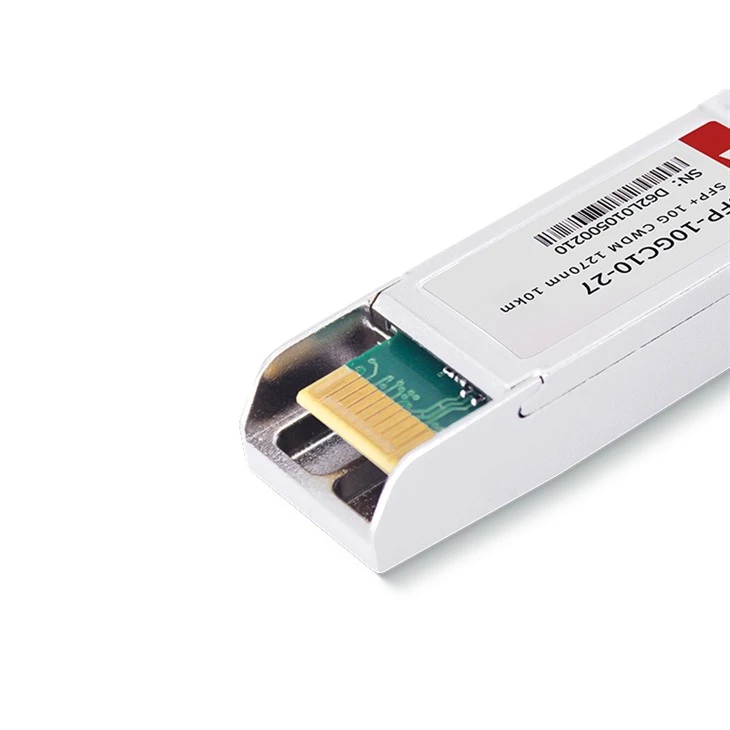

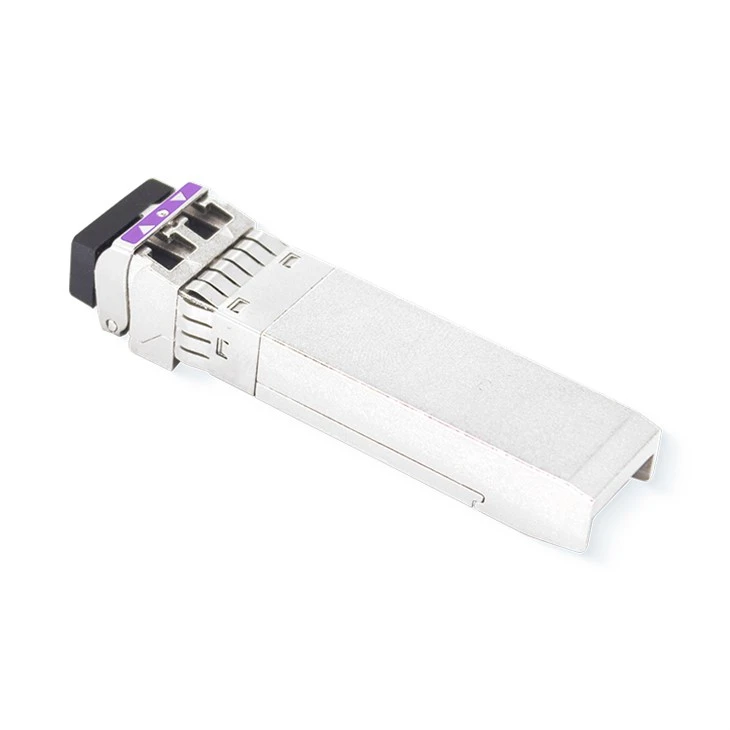

D-NET's 10G CWDM 10KM 1270nm Module features a duplex LC connector and a fully SFP-compliant form factor, offering hot-pluggability, facilitating easy upgrades of optical ports, and ensuring low EMI emissions. It supports digital diagnostics functions through a 2-wire serial interface, as specified in the SFF-8472 standard. The 10G SFP+ CWDM 10KM 1270nm Module is widely utilized in 10GBASE-LR/LW Ethernet, Sonet OC-192/SDH, and 10G Fibre Channel 1200-SM-LL-L applications.
Hot Tags: SFP+10G CWDM 1270nm 10km, China SFP+10G CWDM 1270nm 10km manufacturers, suppliers, factory, SFP-10G-CWDM-1270-10, SFP-10G-CWDM-1470-80, SFP-10G-CWDM-1470-40, SFP-10G-CWDM-1270-10
Absolute Maximum Ratings
|
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
|
Storage Temperature |
TS |
-40 |
+85 |
°C |
|
|
Case Operating Temperature |
TA |
0 |
70 |
°C |
|
|
Maximum Supply Voltage |
Vcc |
-0.5 |
4 |
V |
|
|
Relative Humidity |
RH |
0 |
85 |
% |
Electrical Characteristics
(TOP = 0 to 70 °C, VCC = 3.135 to 3.465 Volts)
|
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
Note |
|
Supply Voltage |
Vcc |
3.135 |
3.465 |
V |
||
|
Supply Current |
Icc |
360 |
mA |
|||
|
Power Consumption |
P |
1.5 |
W |
|||
|
Transmitter Section |
||||||
|
Input differential impedance |
Rin |
100 |
Ω |
1 |
||
|
Tx Input Single Ended DC Voltage Tolerance (Ref VeeT) |
V |
-0.3 |
4 |
V |
||
|
Differential input voltage swing |
Vin,pp |
180 |
700 |
mV |
2 |
|
|
Transmit Disable Voltage |
VD |
2 |
Vcc |
V |
3 |
|
|
Transmit Enable Voltage |
VEN |
Vee |
Vee+0.8 |
V |
||
|
Receiver Section |
||||||
|
Single Ended Output Voltage Tolerance |
V |
-0.3 |
4 |
V |
||
|
Rx Output Diff Voltage |
Vo |
300 |
850 |
mV |
||
|
Rx Output Rise and Fall Time |
Tr/Tf |
30 |
ps |
4 |
||
|
LOS Fault |
VLOS fault |
2 |
VccHOST |
V |
5 |
|
|
LOS Normal |
VLOS norm |
Vee |
Vee+0.8 |
V |
5 |
|
Note
1. Connected directly to TX data input pins. AC coupling from pins into laser driver IC.
2. Into 100 ohms differential termination.
3. 20%～80%
4. LOS is an open collector output. Should be pulled up with 4.7k – 10kΩ on the host board. Normal operation is logic 0; loss of signal is logic 1. Maximum pull-up voltage is 5.5V.
Optical Parameters
(TOP = 0 to 70°C, VCC = 3.135 to 3.465 Volts)
|
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
Note |
|
Transmitter Section |
||||||
|
Center Wavelength |
λc |
λ-6.5 |
λ+6.5 |
nm |
||
|
spectral width |
△λ |
1 |
nm |
|||
|
Average Optical Power |
Pavg |
-8.2 |
0.5 |
dBm |
1 |
|
|
Optical Power OMA |
Poma |
-5.2 |
dBm |
|||
|
Laser Off Power |
Poff |
-30 |
dBm |
|||
|
Extinction Ratio |
ER |
3.5 |
dB |
|||
|
Transmitter Dispersion Penalty |
TDP |
3.2 |
dB |
2 |
||
|
Relative Intensity Noise |
Rin |
-128 |
dB/Hz |
3 |
||
|
Optical Return Loss Tolerance |
20 |
dB |
||||
|
Receiver Section |
||||||
|
Center Wavelength |
λr |
1260 |
1355 |
nm |
||
|
Receiver Sensitivity |
Sen |
-14.5 |
dBm |
4 |
||
|
Stressed Sensitivity (OMA) |
SenST |
-10.3 |
dBm |
4 |
||
|
Los Assert |
LOSA |
-25 |
- |
dBm |
||
|
Los Dessert |
LOSD |
-15 |
dBm |
|||
|
Los Hysteresis |
LOSH |
0.5 |
dB |
|||
|
Overload |
Sat |
0 |
dBm |
5 |
||
|
Receiver Reflectance |
Rrx |
-12 |
dB |
|||
Note
1. TWDP figure requires the host board to be SFF-8431compliant. TWDP is calculated using the Matlab code provided in clause 68.6.6.2 of IEEE802.3ae.
2. 12dB reflection.
3. Conditions of stressed receiver tests per IEEE802.3ae. CSRS testing requires the host board to be SFF-8431 compliant.
4. Receiver overload specified in OMA and under the worst comprehensive stressed condition.
Ordering Information
|
Part Number |
Description |
|

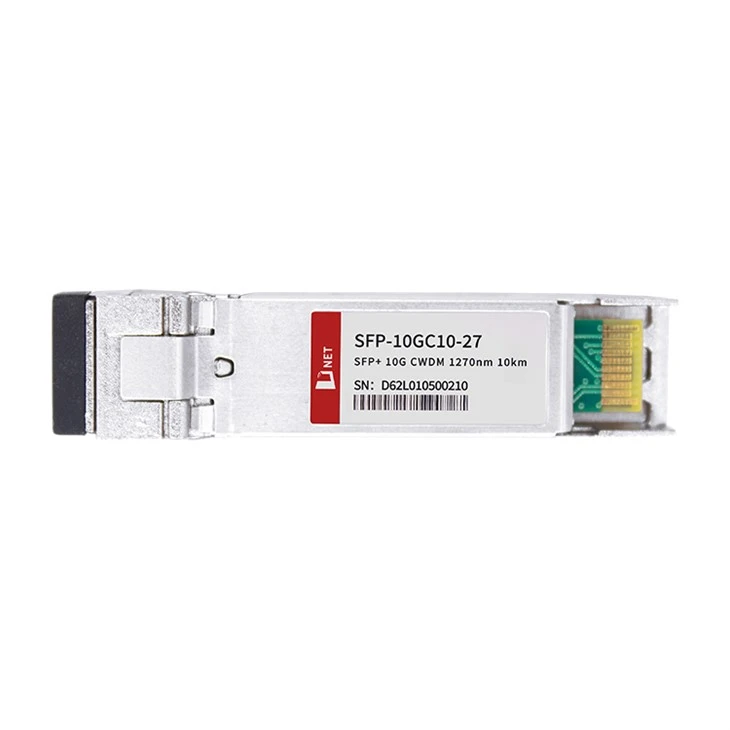

SFP-10GC10-27 |
10Gb/s 10km CWDM SFP+ Transceiver Hot Pluggable, Duplex LC, +3.3V, 1270nm, CWDM DFB, Single mode |
FAQ
1. What is CWDM transceiver?
A: A CWDM transceiver is a type of optical transceiver module used in fiber optic networks. 10G CWDM 10KM 1270nm Module is designed to transmit and receive multiple optical signals of different wavelengths simultaneously over a single optical fiber. CWDM transceivers typically use uncooled distributed feedback (DFB) laser diodes or Fabry-Perot (FP) lasers to transmit data at different wavelengths in the range of 1270nm to 1610nm.
2. Can I put an SFP module in a SFP+ port?
A: Usually SFP can be inserted into the SFP+ port, but the SFP+ optical module does not work in the SFP slot, and when the SFP module is inserted into the SFP+ port, the speed is 1G instead of 10G.The SFP module has a data transfer rate of up to 1.25Gbps, while the SFP+ module supports speeds up to 10Gbps or even higher. SFP+ modules have more advanced features and are designed for higher bandwidth and faster communication.However, some networking equipment supports both SFP and SFP+ slots called combo ports. These ports can accept either SFP or SFP+ modules, but you should consult the equipment's documentation to verify if it supports both.
