4G / 5G transmission :
In the 5G fronthaul, if the optical fiber is used to directly connect RRU and DDU, it will consume a lot of optical fiber resources. If the wave division multiplexing system is used, the optical fiber resources can be saved.

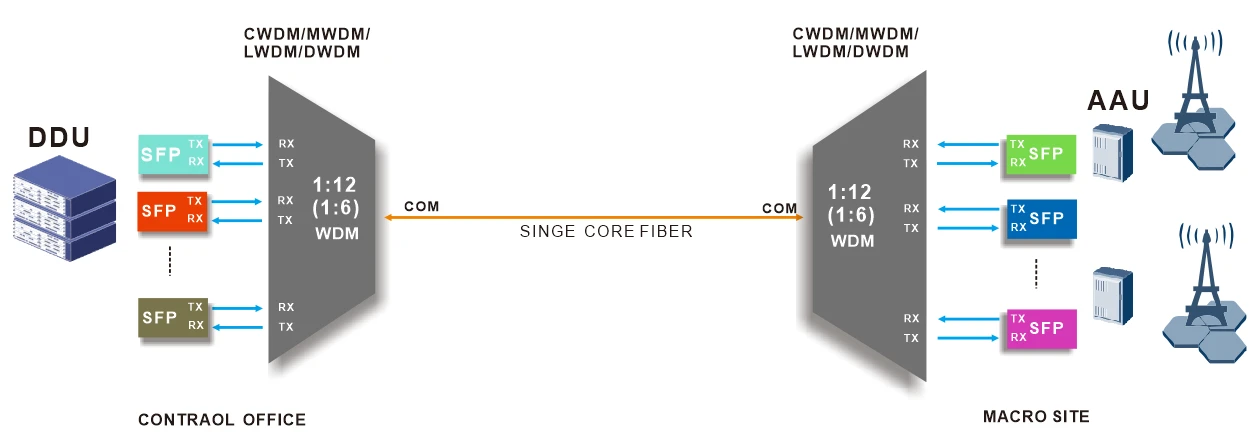

D-NET mainly produces WDM products,5G fronthaul can use wave division multiplexing (WDM) technology to provide 1:6 and 1:12 multiplratios on 1-core optical fiber to carry 3/6 services, and realize service transmission at different rates by config color modules of different rates (10Gbps and 25Gbps).
|
|
● Passive-Passive link CWDM Solution

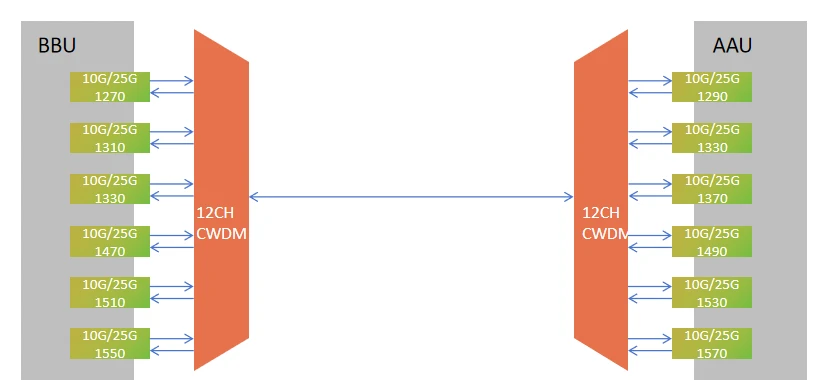

4G+5G 12CH Passive to passive

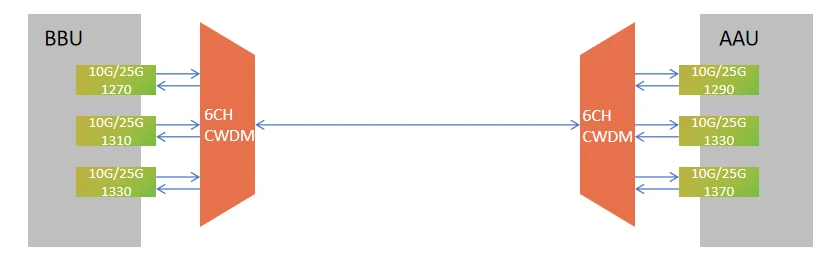

5G 6CH Passive to passive

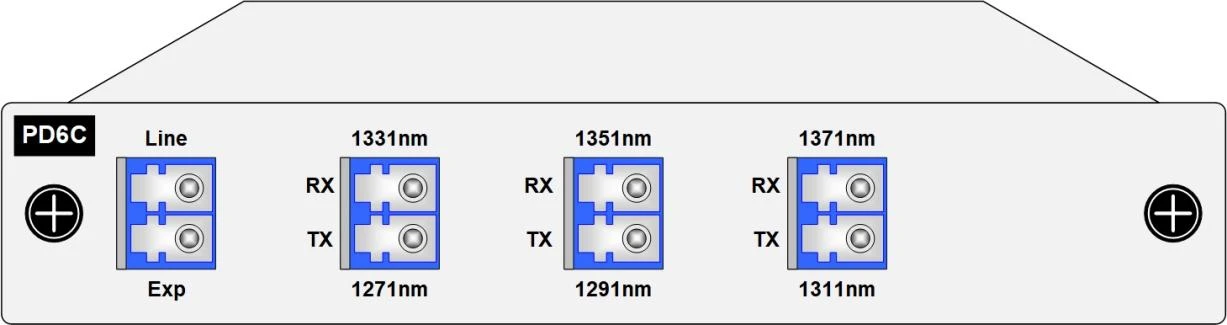

1:6 WDM LGX BOX
● Product diagram：

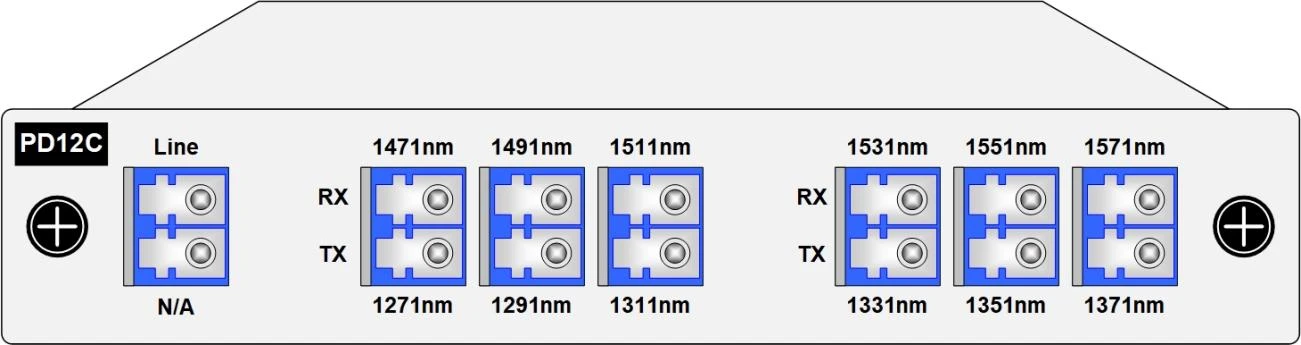

1:12 WDM LGX BOX
● Product diagram：
Local side 1U/3U Rack:
Local site 1U rack is 3 slot, 1U high passive rack, suitable for horizontal insertion of 3 local site combined wave divider;3U rack is 16 slot, 3U high passive rack, suitable for vertical inserted 16 local site combined wave divider;local site 1U/3U racks can be mounted in a 19-inch cabinet,Realize the compact installation of the local site combined wave divider
 |

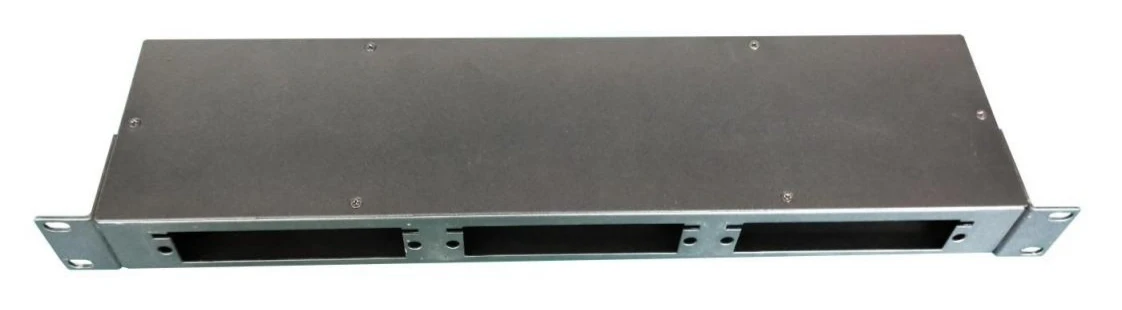

INDOOR 1U RACK FOR LGX ABS BOX
 |

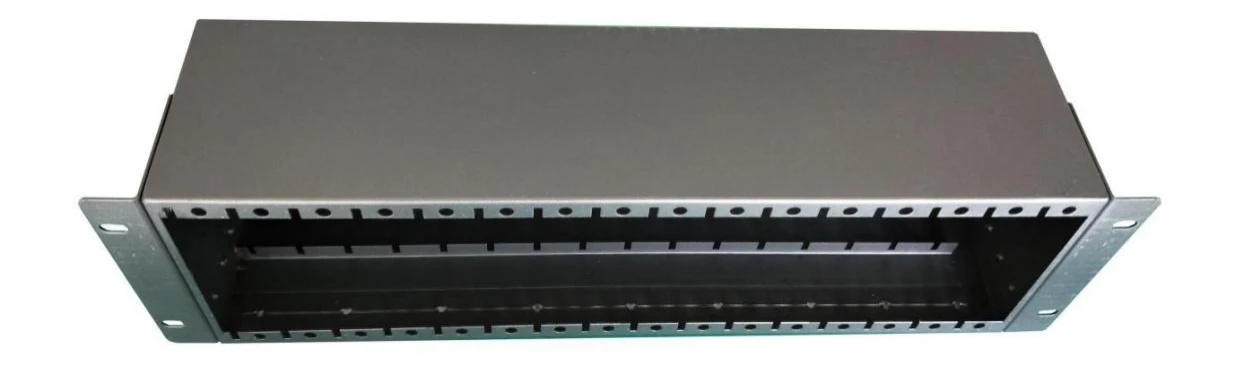

INDOOR 3U RACK FOR LGX ABS BOX

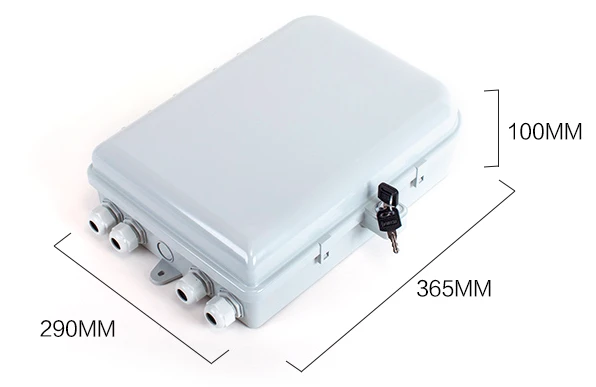

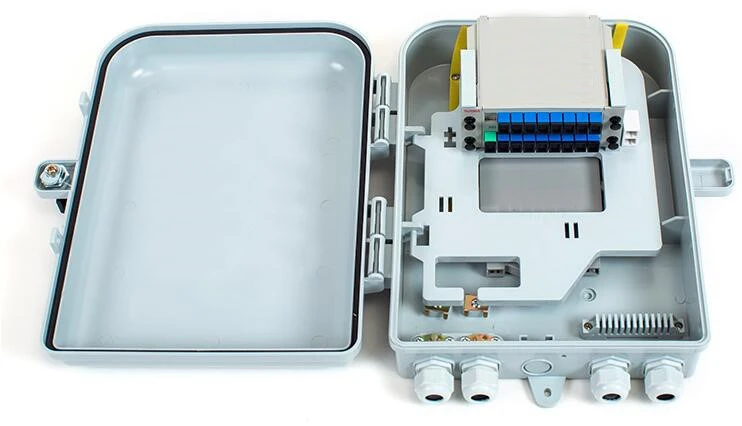

Remote site Outdoor box：
Outdoor dust box is a special box for outdoor wall hanging or pole installation of local site Wave division multiplexing system,support built-in 1 or 2 local site combined wave divider,meet the requirements of IP67 standard, light structure, easy to install.
Size: 365 mm (long) 290mm (W) 100 mm (height)
