Features
● 10GHz ITU Grid, C Band

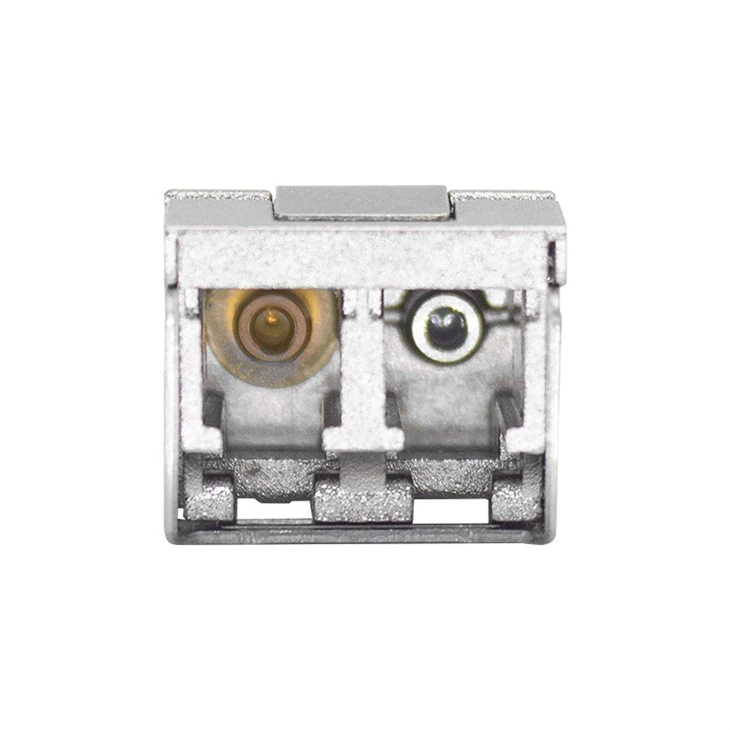

● Support duplex LC connector
● DWDM EML transmitter, PIN photo-detector
● Suitable for SMF
● Support for 40KM transmission distance
Applications
● 10GBASE-ER/EW Ethernet
● Sonet OC-192/SDH
● 10G Fibre channel
● DWDM Networks
Product Details

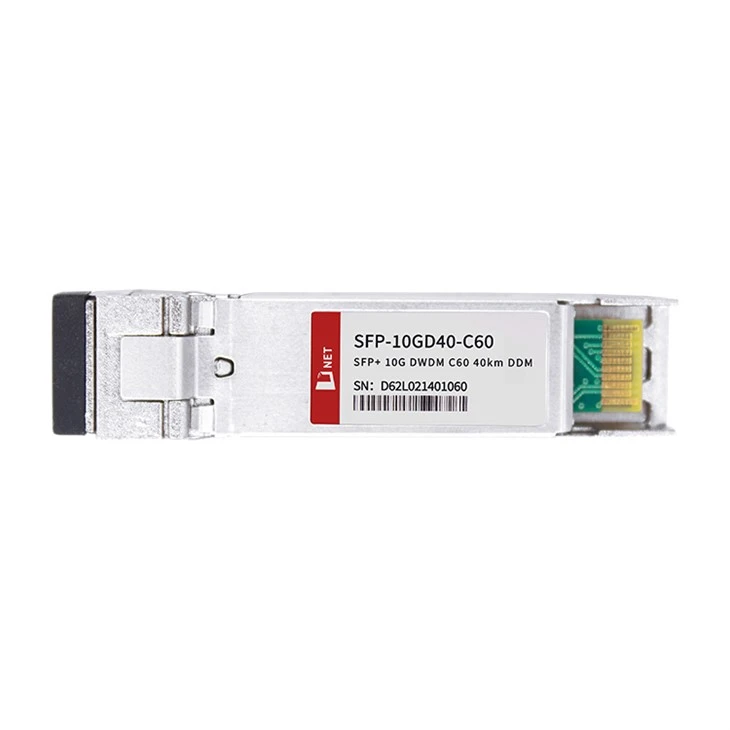

The SFP-10GD40-C60 is equipped with an optical power detection function, which facilitates real-time monitoring of the intensity of optical signals. Additionally, its low power consumption helps to decrease both energy usage and heat generation.
Hot Tags: SFP+10G-DWDM C60 40km, China SFP+10G-DWDM C60 40km manufacturers, suppliers, factory, SFP-10G-DWDM-C60-80, SFP-10G-DWDM-C60-40, SFP-10G-DWDM-C21-80, SFP-10G-DWDM-C60-80, SFP-10G-DWDM-C21-40
Absolute Maximum Ratings
|
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
|
Storage Temperature |
TS |
-40 |
+85 |
°C |
|
|
Case Operating Temperature |
TA |
0 |
70 |
°C |
|
|
Maximum Supply Voltage |
Vcc |
-0.5 |
4 |
V |
|
| Relative Humidity | RH | 0 | 85 | % |
Electrical Characteristics
(TOP = 0 to 70 °C, VCC = 3.135 to 3.465 Volts)
|
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
Note |
|
Supply Voltage |
Vcc |
3.135 |
3.465 |
V |
||
|
Supply Current |
Icc |
500 |
mA |
|||
|
Power Consumption |
P |
4.8 |
W |
|||
|
Transmitter Section |
||||||
|
Input differential impedance |
Rin |
100 |
a |
1 |
||
|
Tx Input Single Ended DC Voltage Tolerance (Ref VeeT) |
V |
-0.3 |
4 |
V |
||
|
Differential input voltage swing |
Vin,pp |
180 |
700 |
mV |
2 |
|
|
Transmit Disable Voltage |
VD |
2 |
Vcc |
V |
3 |
|
|
Transmit Enable Voltage |
VEN |
Vee |
Vee+0.8 |
V |
||
|
Receiver Section |
||||||
|
Single Ended Output Voltage Tolerance |
V |
-0.3 |
4 |
V |
||
|
Rx Output Diff Voltage |
Vo |
300 |
850 |
mV |
||
|
Rx Output Rise and Fall Time |
Tr/Tf |
30 |
ps |
4 |
||
|
LOS Fault |
VLOS fault |
2 |
VccHOST |
V |
5 |
|
|
LOS Normal |
VLOS norm |
Vee |
Vee+0.8 |
V |
5 |
|
Note
1. Connect directly to the TX data input pin. AC coupling from the pin to the laser driver IC.
2. End of the difference into 100 ohms.
3. According to SFF-8431, version 3.0
Optical Parameters
(TOP = 0 to 70°C, VCC = 3.135 to 3.465 Volts)
|
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
Note |
|
Transmitter Section |
||||||
|
Optical Wavelength-End Of Life |
λ |
X-100 |
X |
X+100 |
pm |
|
|
Optical Wavelength-Beginning Of Life |
λ |
X-25 |
X |
X+25 |
pm |
|
|
Average Optical Power |
Pavg |
-1 |
+4 |
dBm |
1 |
|
|
Laser Off Power |
Poff |
-30 |
dBm |
|||
|
Extinction Ratio |
ER |
8.2 |
dB |
|||
|
Transmitter Dispersion Penalty |
TDP |
3.0 |
dB |
2 |
||
|
Relative Intensity Noise |
Rin |
-128 |
dB/Hz |
3 |
||
|
Optical Return Loss Tolerance |
20 |
dB |
||||
|
Receiver Section |
||||||
|
Center Wavelength |
λr |
1480 |
1580 |
nm |
||
|
Receiver Sensitivity |
Sen |
-16 |
dBm |
4 |
||
|
Stressed Sensitivity (OMA) |
SenST |
-14.5 |
dBm |
4 |
||
|
Los Assert |
LOSA |
-27 |
- |
dBm |
||
|
Los Dessert |
LOSD |
-17 |
dBm |
|||
|
Los Hysteresis |
LOSH |
0.5 |
dB |
|||
|
Overload |
Sat |
0 |
dBm |
5 |
||
|
Receiver Reflectance |
Rrx |
-12 |
dB |
|||
Note
1. According to the IEEE802.3ae, the average power figures are informative only.
2. 12dB for reflection.
3. The receiver specified in OMA and under the worst integrated stress condition.
Ordering Information
|
Part Number |
Description |
|
SFP-10GD40-C60 |
10Gb/s 40km DWDM SFP+ Transceiver Hot Pluggable, Duplex LC, +3.3V,100GHz, DWDM EML, Single mode |
FAQ
1. What transceiver supports up to 10Gbps?
SFP-10GD40-C60 supports up to 10Gbps and is slightly larger than SFP. SFP+ complies with the 802.3ba standard, allowing 4 channels in a single transceiver and supporting up to 40KM data transmission.
2. Can I run 10G over single mode fiber?
Both single-mode and multi-mode fiber-optic cables can be used for 10G. Consideration is the length of the transmission distance.Single-mode fiber is suitable for long distances, while multi-mode fiber is suitable for short distances.
