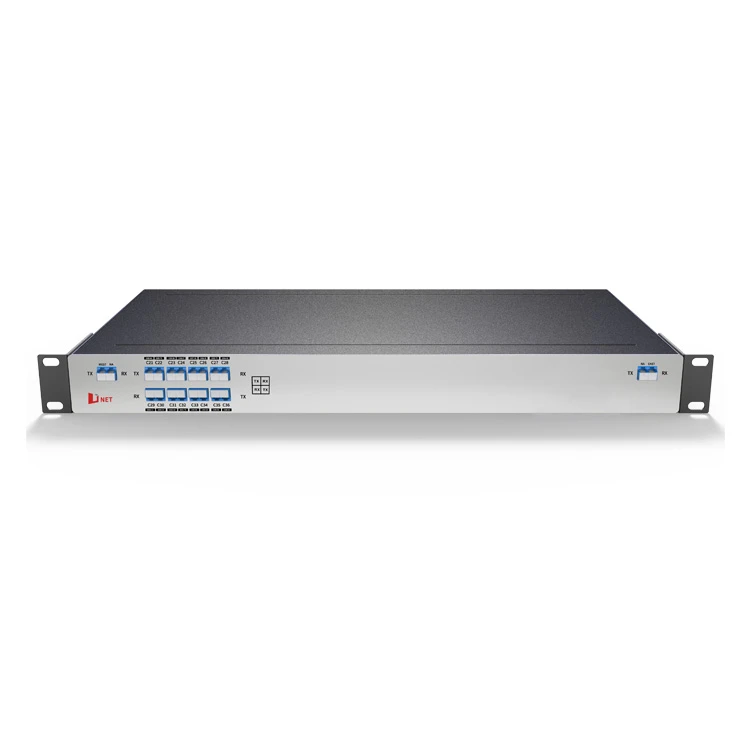

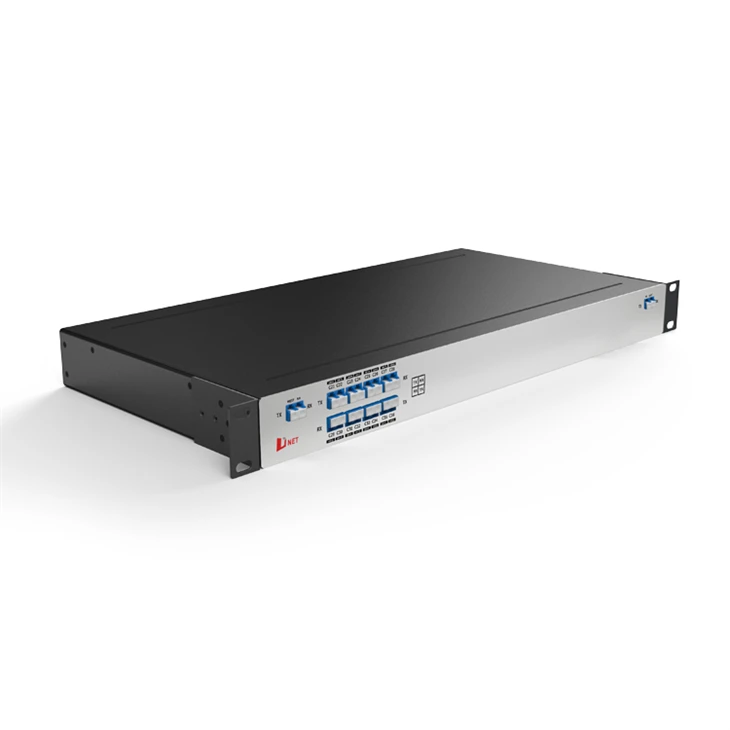

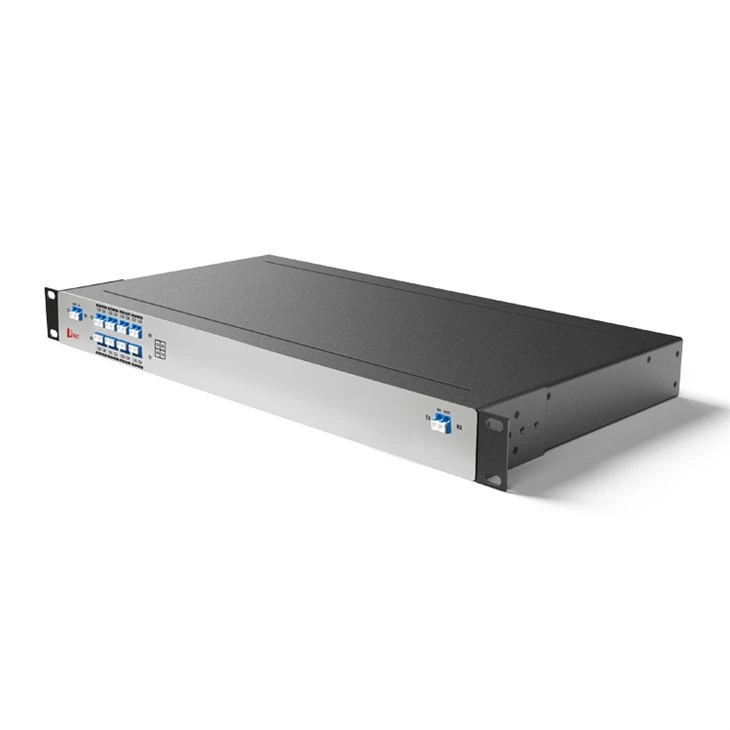

Single Fiber OADM 8CH DWDM West Or East 1U Rack

Single Fiber 8CH(16Waves) DWDM OADM, WEST Or EAST, LC/UPC, 1U Rack
OADM DWDM single fiber west or east supports drop 8-channel services and add 8-channel services in one fiber, the wavelength range from C21 to C36 (1560.61nm to 1548.51nm). According to the ITU-T G.694.1 100GHz grid, it maximizes the capacity of the C-band range.

Send Inquiry

Description

Technical Parameters

Product Details

Single fiber OADM DWDM 8CH west or east is a high-performance fiber optic wavelength division multiplexer suitable for various fiber optic communication networks, such as IDC, cloud, and massive data. DWDM OADM 8CH west or east has two optional paths: west and east. The westward path refers to the transmission of optical signals from the west to the east of the network, while the eastward path is transmitted from the east to the west of the network. Users can choose suitable paths based on the layout and requirements of the network.

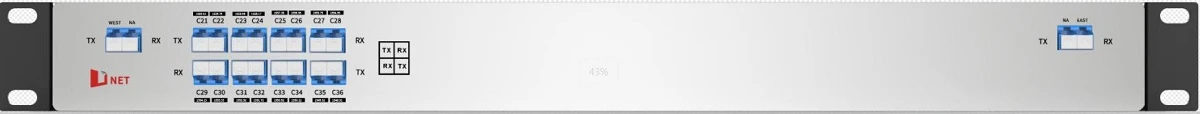

Product Panel

8CH DWDM OADM Single Fiber West or East

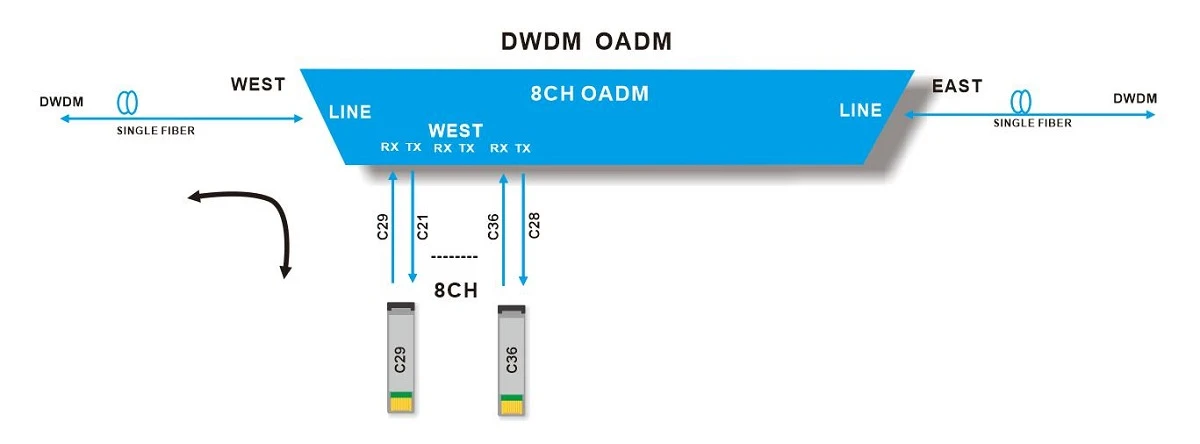

Line Link

8CH DWDM OADM Single fiber transmission

Hot Tags: single fiber oadm 8ch dwdm west or east 1u rack, China single fiber oadm 8ch dwdm west or east 1u rack manufacturers, suppliers, factory, SFP-1G-CWDM-1270-40, SFP28-DWDM-C21, SFP-10G-CWDM-1470-80, SFP-10G-DWDM-C21-80, SFP28-25G-LR, QSFP28-100G-SR4

Product Specification

Wavelength	OADM 8CH (16 Waves)	Channel Spacing	100GHz (0.8nm)
Channel Passband	±0.11nm	Technology	TFF (Thin Film Filter)
Insertion Loss	≤ 4.8dB( waves to west or east)	Link Loss	≤ 5.5dB ( west to east)
Return Loss	≥ 45dB	Directivity	≥ 45dB
Polarization Mode Dispersion	≤ 0.1ps	Polarization Dependent Loss	≤ 0.3dB
Channel Isolation	Adjacent ≥30dB Non-adjacent ≥ 45dB	Temperature	Operating -40 to 85°C Storage -40 to 85°C
Net Weight	3.5KG	Dimensions (HxWxD)	44440230mm

Order Information

Product No.	Product Description
DOA8-1U01-C2136-SS	DWDM OADM Drop and Add 8CH (C21-C36) ,west or east , Single fiber, LC/UPC , 1U Rack

FAQ

Q: Does OADM DWDM single fiber west or east support amplification and gain balancing of optical signals?

A: Usually, OADM DWDM single fiber west or east itself does not include optical signal amplifiers, but can be combined with other devices (such as optical amplifiers) to achieve signal amplification and gain balance.

Q: Does Single fiber OADM DWDM 8CH west or east support long-distance transmission?

A: Yes, Single fiber OADM DWDM 8CH west or east can support long-distance fiber optic transmission, but usually factors such as fiber attenuation and attenuation need to be considered.

Q: What devices can DWDM OADM 8CH west or east be compatible with?

A: DWDM OADM 8CH West or East is usually compatible with most mainstream optical communication equipment brands, such as Cisco, Huawei, Juniper, and so on.
