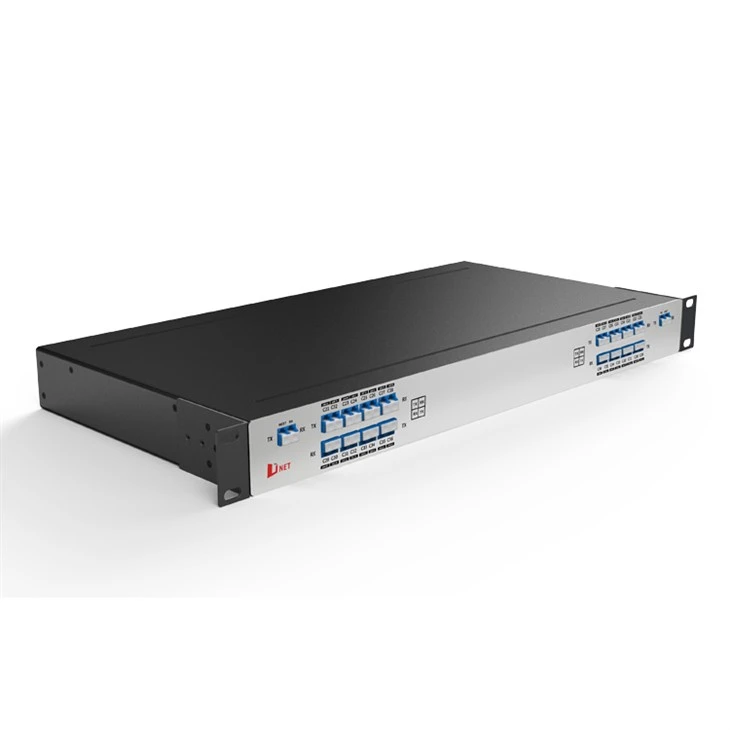

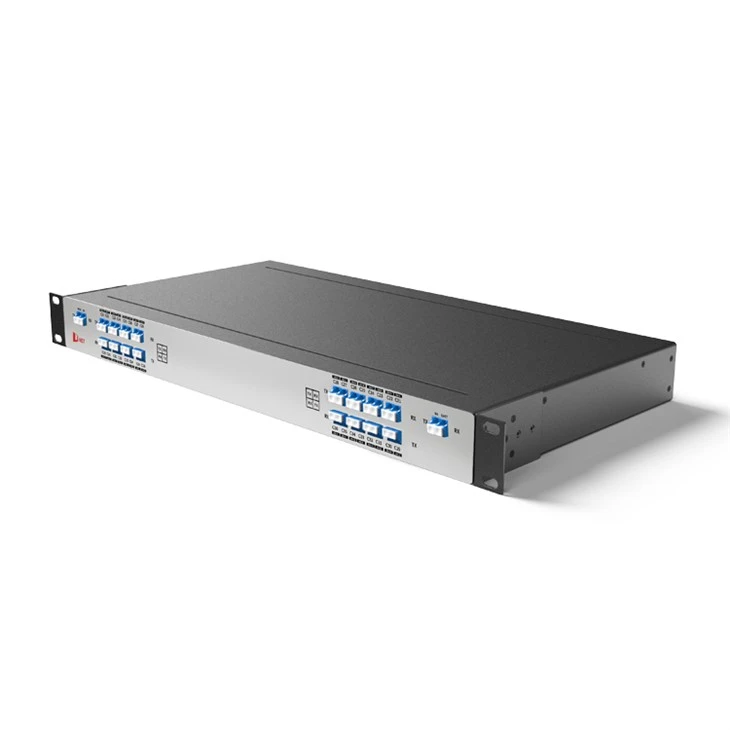

Single Fiber OADM 8CH DWDM West And East 1U Rack

Single Fiber 8CH(32Waves) DWDM OADM, WEST AND EAST, LC/UPC, 1U Rack
DWDM OADM 8CH West and East is a single fiber optical multiplexer used for dense wavelength division multiplexing (DWDM) networks in fiber optic transmission systems. OADM DWDM single fiber west and east can achieve bidirectional transmission on a single fiber and can simultaneously transmit data in both west and east directions.

Send Inquiry

Description

Technical Parameters

D-net`s DWDM Mux Demux service

● Compatibility Assistance: D-NET offers compatibility services to ensure optical modules are compatible with equipment from leading manufacturers.
● Personalized Services: D-NET provides OEM customization options for its products. Upon request, customers can have colored logo labels tailored to their needs.
● Standard Delivery Period: 3 Days
● Extensive Shipping Solutions: D-NET collaborates with highly reputable courier companies such as SF, FedEx, DHL, UPS, and others to ensure reliable shipping services.

Product Details

The Single fiber OADM DWDM 8CH West and East enables the transmission of 8-channel DWDM services with add and drop capabilities over a single fiber, covering a wavelength range of C21 to C36 (1560.61nm to 1548.51nm) for both dropping and adding functions. The wavelength loss towards either the west or east direction is less than 4.8dB, and the line loss in the west (or east) direction remains below 9.5dB. Furthermore, this OADM DWDM single fiber device can be customized to support other wavelengths as needed, and the product exhibits high reliability and stability.

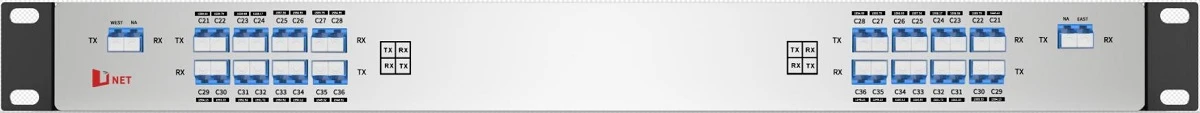

Product Panel

8CH DWDM OADM Single Fiber

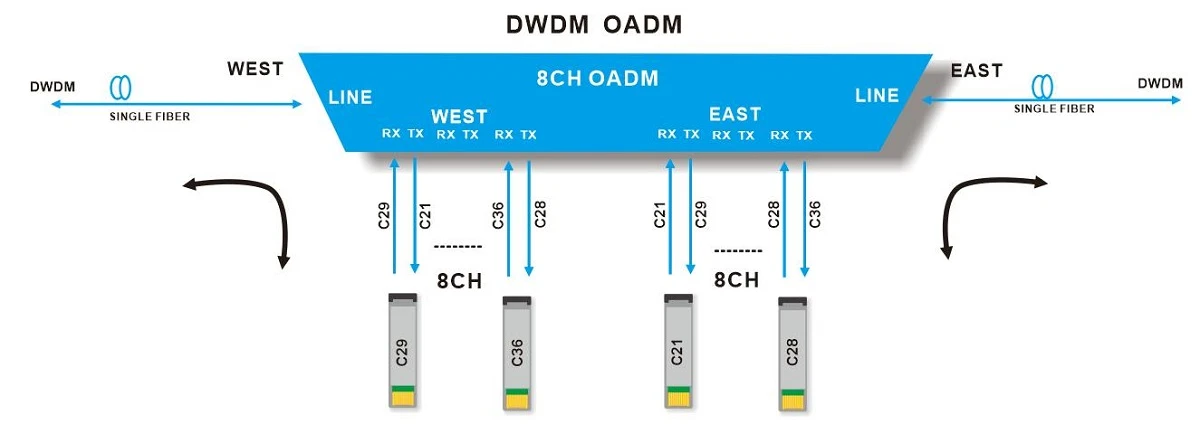

Line Link

8CH DWDM OADM Single fiber transmission

Hot Tags: single fiber oadm 8ch dwdm west and east 1u rack, China single fiber oadm 8ch dwdm west and east 1u rack manufacturers, suppliers, factory, SFP-10G-CWDM-1270-10, DDM40-1U01-C2160, SFP-10G-DWDM-C60-80, Mechanical Optical Switch, QSFP56-2X100G-AOC, SFP-10G-BIDI-1490-80

Product Specification

Wavelength	OADM 8CH (32 Waves)	Channel Spacing	100GHz (0.8nm)
Channel Passband	±0.11nm	Technology	TFF (Thin Film Filter)
Insertion Loss	≤ 4.8dB( waves to west or east)	Link Loss	≤ 9.5dB ( west to east)
Return Loss	≥ 45dB	Directivity	≥ 45dB
Polarization Mode Dispersion	≤ 0.1ps	Polarization Dependent Loss	≤ 0.3dB
Channel Isolation	Adjacent ≥30dB Non-adjacent ≥ 45dB	Temperature	Operating -40 to 85°C Storage -40 to 85°C
Net Weight	3.5KG	Dimensions (HxWxD)	44440230mm

Note: Specified with connectors.

Order Information

Product No.	Product Description
DOA8-1U01-C2136-SD	DWDM OADM Drop and Add 8CH (C21-C36) ,west to east , Single fiber, LC/UPC, 1U Rack

Note: We Support Customized Design, please contact us by email.

FAQ

Q: What is Single fiber OADM DWDM 8CH west and east?

A: The Single fiber OADM DWDM 8CH west and east is a fiber optic wavelength division multiplexer that facilitates bidirectional communication over a single fiber. It allows for the concurrent transmission of 8 distinct wavelengths in both the west and east directions.

Q: Do OADM DWDM single fiber west and east require special optical fibers?

A: It does not require special optical fibers, and standard single-mode optical fibers can generally be used.

Q: Does DWDM OADM 8CH west and east support flexible wavelength adjustment?

A: Yes, DWDM OADM 8CH West and East typically supports wavelength adjustment and configuration, allowing for flexible wavelength allocation according to requirements.
