Description

Technical Parameters

D-net`s DWDM Mux Demux service

● Compatibility Assistance: D-NET offers compatibility services to ensure optical modules are compatible with equipment from leading manufacturers.
● Personalized Services: D-NET provides OEM customization options for its products. Upon request, customers can have colored logo labels tailored to their needs.
● Standard Delivery Period: 3 Days
● Extensive Shipping Solutions: D-NET collaborates with highly reputable courier companies such as SF, FedEx, DHL, UPS, and others to ensure reliable shipping services.

Product Details

OADM, which stands for Optical Add Drop Multiplexer, enables the insertion or removal of specific optical channels within fiber optic circuits without disrupting the entire optical network. A single-fiber OADM that supports DWDM (Dense Wavelength Division Multiplexing) with four channels, designated as West and East, allows for independent addition and deletion operations across these four channels. This enhances the flexibility and controllability of the optical network while also being cost-effective.

DWDM OADM 4CH products can be tailored to meet specific requirements, as D-NET provides OEM services. Furthermore, all products come with a 3-year warranty. The OADM DWDM single fiber technology is widely adopted in communication networks, data centers, wireless communication systems, and broadcasting and television sectors, addressing the demands for high bandwidth, multi-channel transmission, and efficient optical channel management.

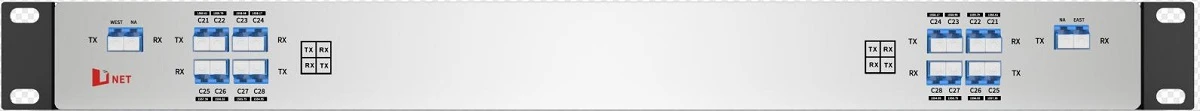

Product Panel

4CH DWDM OADM Single Fiber West or East

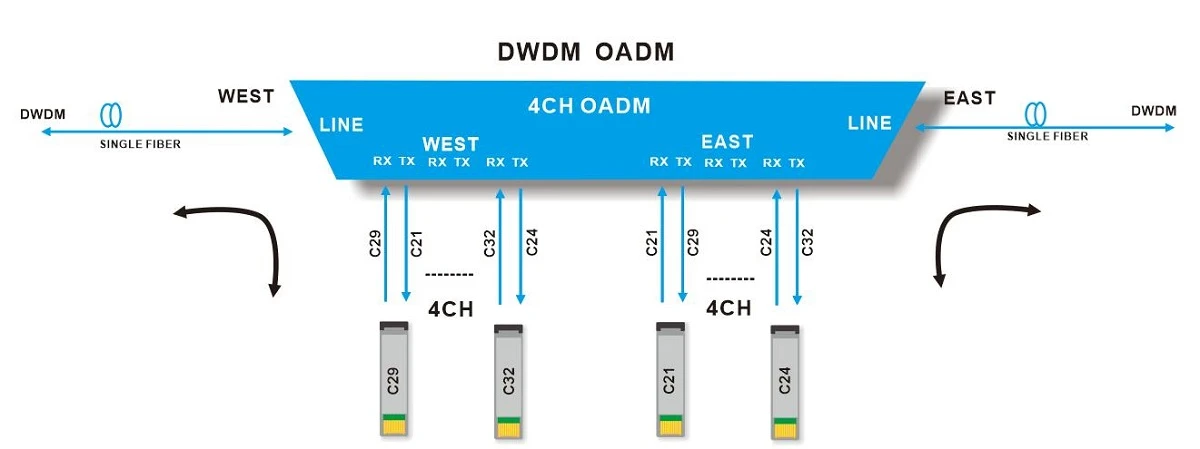

Line Link

4CH DWDM OADM Single fiber transmission

Hot Tags: single fiber oadm 4ch dwdm west and east 1u rack, China single fiber oadm 4ch dwdm west and east 1u rack manufacturers, suppliers, factory, QSFP28-2X50G-AOC, SFP-10G-DWDM-C60-80, DDM40-1U01-C2160, CWDM SFP, SFP-1G-ER, SFP-10G-DWDM-C21-80

Product Specification

Wavelength	OADM 4CH (16 Waves)	Channel Spacing	100GHz (0.8nm)
Channel Passband	±0.11nm	Technology	TFF (Thin Film Filter)
Insertion Loss	≤ 2.4dB( waves to west or east)	Link Loss	≤ 5.5dB ( west to east)
Return Loss	≥ 45dB	Directivity	≥ 45dB
Polarization Mode Dispersion	≤ 0.1ps	Polarization Dependent Loss	≤ 0.3dB
Channel Isolation	Adjacent ≥30dB Non-adjacent ≥ 45dB	Temperature	Operating -40 to 85°C Storage -40 to 85°C
Net Weight	3.5KG	Dimensions (HxWxD)	44440230mm

Note: Specified with connectors.

Order Information

Product No.	Product Description
DOA4-1U01-C2128-SD	Single fiber OADM DWDM 4CH west and east, LC/UPC, 1U Rack

Note: We Support Customized Design, please contact us by email.

FAQ

Q: What is the difference between OADM and MUX?

A: OADM and MUX have different functions and purposes in optical communication networks. OADM has the ability to add or remove specific wavelengths at different points in the network, while MUX focuses on combining multiple signals onto a single fiber for transmission.

Q: What is OADM in DWDM?

A: OADM stands for Optical Add-Drop Multiplexer, is a device used in wavelength-division multiplexing (WDM) systems for multiplexing and routing different channels of light into or out of a single-mode fiber (SMF).

Q: How is compatibility achieved for Single fiber OADM DWDM 4CH west and east?

A: The DWDM OADM 4CH conforms to the ITU-T standard DWDM frequency grid, guaranteeing compatibility across devices from various manufacturers. It utilizes fiber optic splitters and gratings featuring reduced insertion losses to separate and transmit optical signals of differing wavelengths.
