Description

Technical Parameters

D-net`s DWDM Mux Demuxe service

● Compatibility Assistance: D-NET offers compatibility services to ensure optical modules are compatible with equipment from leading manufacturers.
● Personalized Services: D-NET provides OEM customization options for its products. Upon request, customers can have colored logo labels tailored to their needs.
● Standard Delivery Period: 3 Days
● Extensive Shipping Solutions: D-NET collaborates with highly reputable courier companies such as SF, FedEx, DHL, UPS, and others to ensure reliable shipping services.

Product Features

● Wavelength from C21 to C28(1560.61nm~1554.94nnm)
● Comply with the ITU-T G.694.1 100GHZ grid
● With 1310nm and Monitor, EXP Port

● Support low insertion loss( wavelength ports＜2.4dB; 1310nm port＜0.8dB)

Applications

● Broadcast and TV, IDC
●finance, government, cloud, massive data

Hot Tags: 8ch dwdm mux and demux dual fiber 1u, China 8ch dwdm mux and demux dual fiber 1u manufacturers, suppliers, factory, SFP-1G-LR, DOM80-1U01-C2160, QSFP28-100G-ER4, DDM40-1U01-C2160, DDM40-1U01-C2160, SFP-1G-ER

Product Specification

Wavelength

8channels C21-C28 ( or other

waves)

Channel Spacing

100GHz (0.8nm)

Channel Passband

±0.11nm

Technology

TFF (Thin Film Filter)

Insertion Loss

≤ 2.4dB

Link Loss

≤ 3.2dB

1310nm Port Pass

Band Width

1260nm~1360nm

Center Wavelength

Accuracy

±0.05nm

Insertion Loss @

1310 port

≤ 0.8dB

Insertion Loss @ 1%

Mon

≤ 26dB

Return Loss

≥ 45dB

Directivity

≥ 45dB

Polarization Mode

Dispersion

≤ 0.1ps

Polarization

Dependent Loss

≤ 0.3dB

Channel Isolation

Adjacent ≥30dB

Non-adjacent ≥ 45dB

Temperature

Operating -40 to 85°C

Storage -40 to 85°C

Net Weight

1.5KG

Dimensions (HxWxD)

44*440*230mm

Application Linking

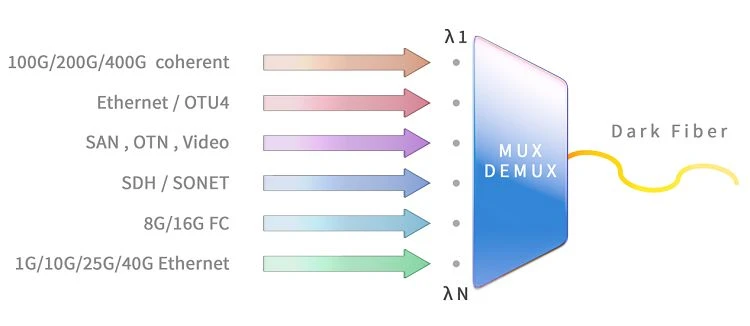

Multi-rate hybrid multiplexing service

allows for flexible combinations of 1G/10G/25G/40G/100G/200G Ethernet, SAN, OTN, SDH/SONET, and local video services.

Types of DWDM network applications

Type1: point-to-point transmission

Type2: Ring transmission

Type3: cross-connection

Order Information

Part Number	Description
DMD8-1U01-C2128-31M	DWDM MUX DEMUX 8CH (C21-C28) With EXP and 1310nm, Monitor Port, Dual fiber,LC/UPC , 1U Rack

Note: We Support Customized Design, please contact us by email.

FAQ

Q: What is a 8CH DWDM MUX DEMUX Dual Fiber and how does it work?

A: This device functions as an optical multiplexer/demultiplexer, employing Dense Wavelength Division Multiplexing (DWDM) technology to either combine or separate numerous optical signals of different wavelengths across a dual fiber transmission line.

Q: What are the advantages of using an 8CH DWDM MUX DEMUX Dual Fiber?

A:The primary advantages include higher network capacity, enhanced signal quality, and lower expenses when compared to conventional fiber optic systems.

Q: Which applications are best suited for this type of device?

A: The 8-channel DWDM MUX DEMUX Dual Fiber devices are perfect for high-speed data transmission, multimedia content distribution, and other applications that require substantial bandwidth. They are suitable for use in industries such as broadcasting and television, internet data centers (IDCs), finance, government, cloud computing, big data, and more.
