Product Details

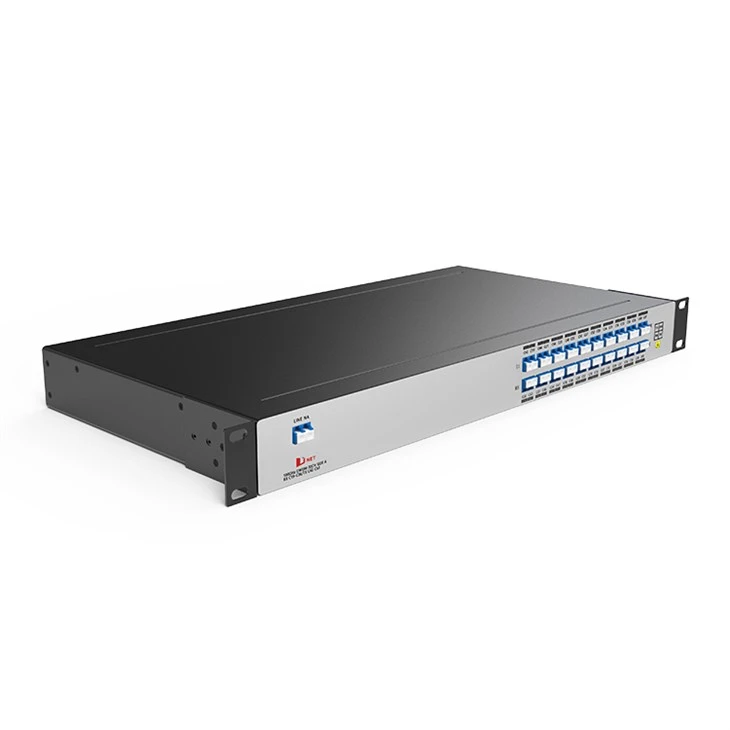

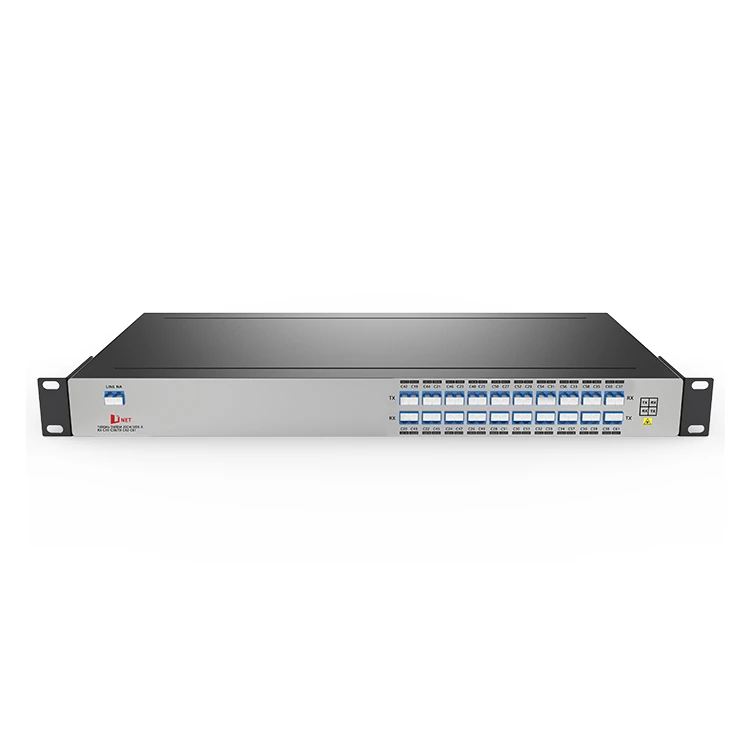

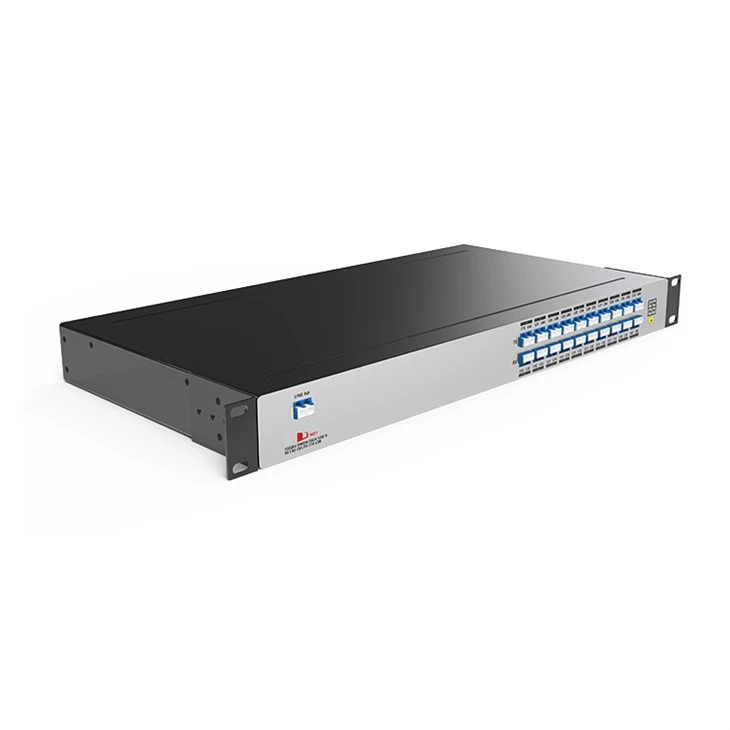

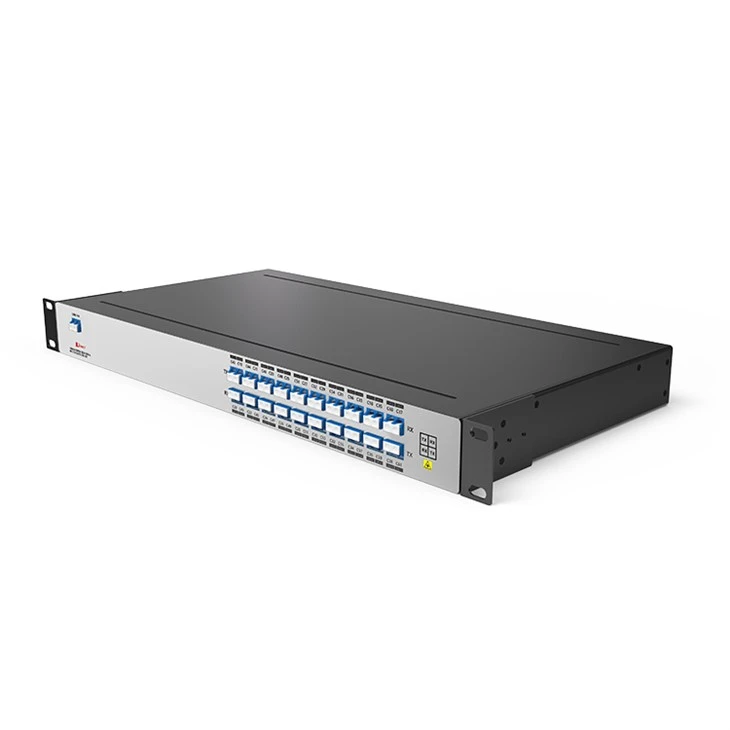

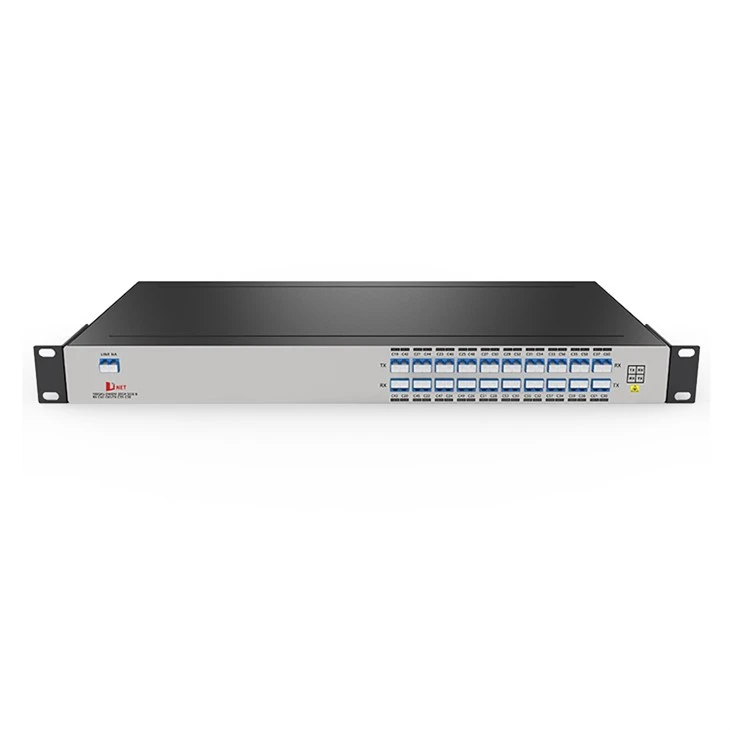

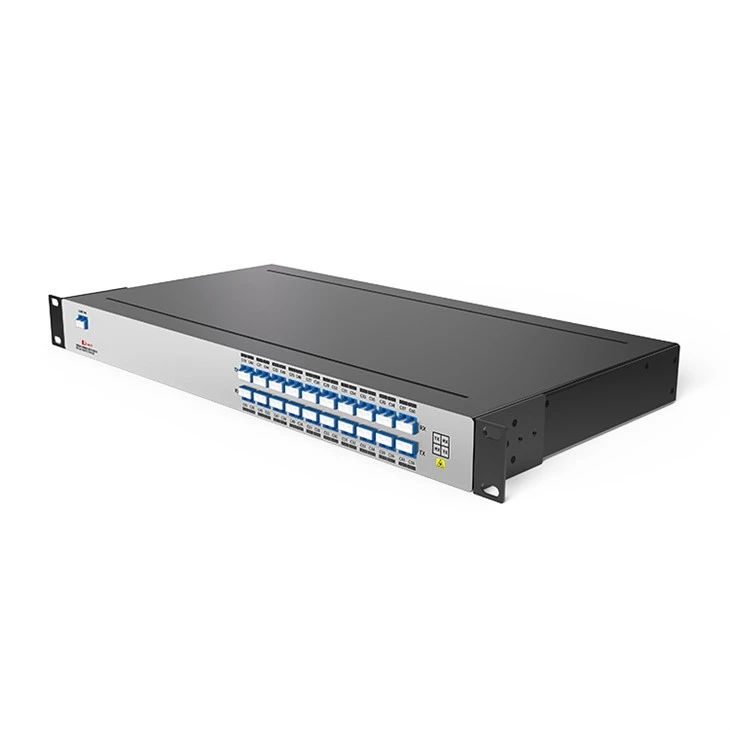

In contrast to traditional dual fiber DWDM systems, the 20CH 40-wavelength DWDM mux and demux 1U rack employs a single fiber design. This design allows for the transmission and multiplexing of signals across 20 distinct wavelengths through a single fiber, ultimately conserving fiber resources and lowering costs. The insertion loss for the single fiber DWDM mux and demux is less than 3.5dB (with a line loss under 7dB), and it is a fully passive device that facilitates point-to-point transmission of 20 different services over a single fiber.
Product Panel

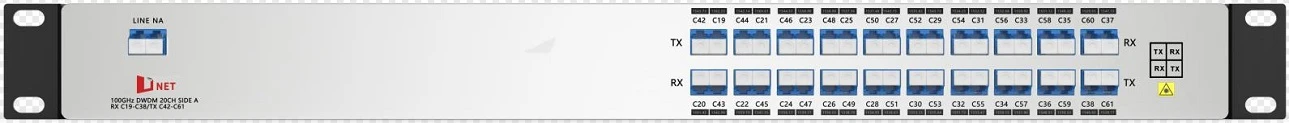

20CH DWDM MUX/ DEMUX RX C21 to C40/ TX C41 to C60 Side A

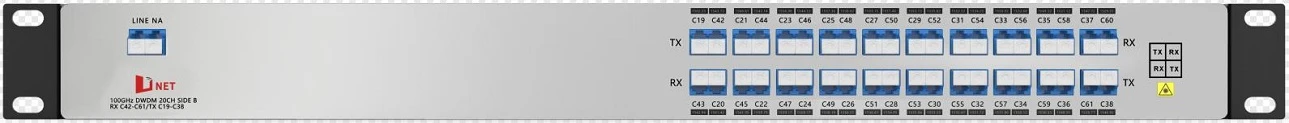

20CH DWDM MUX/ DEMUX RX C41 to C60/ TX C21 to C40 Side B

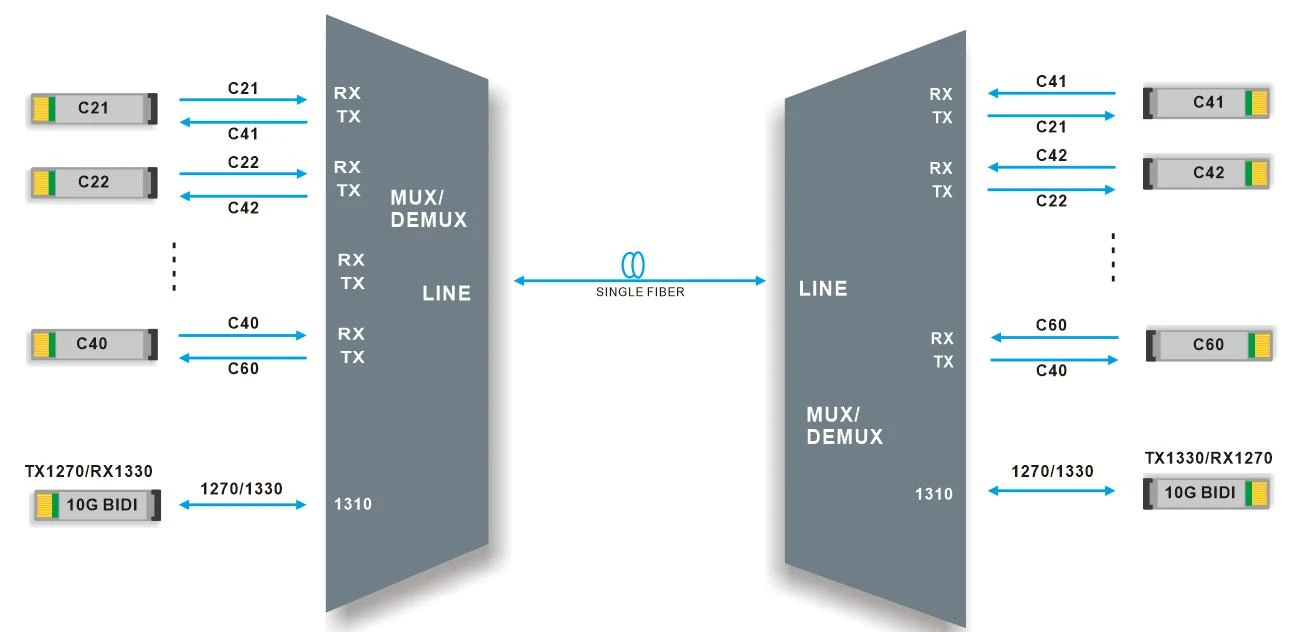

Line Link
20CH DWDM MUX/ DEMUX Single fiber BIDI transmission
Hot Tags: single fiber 20ch(40 wavelength) dwdm mux and demux 1u rack, China single fiber 20ch(40 wavelength) dwdm mux and demux 1u rack manufacturers, suppliers, factory, SFP-10G-BIDI-1330-10, CWDM SFP, SFP-10G-DWDM-C21-80, QSFP56-2X100G-AOC, QSFP-40G-SR4, DDM40-1U01-C2160
Product Specification
|
Wavelength |
40 waves C21-60 |
Channel Spacing |
100GHz (0.8nm) |
|
Channel Passband |
±0.11nm |
Technology |
AAWG (Gaussian) |
|
Insertion Loss |
≤ 3.5dB |
Link Loss |
≤ 7dB |
|
Passband Ripple |
≤ 0.5dB |
Center Wavelength Accuracy |
±0.05nm |
|
Return Loss |
≥ 40dB |
Directivity |
≥ 40dB |
|
Polarization Mode Dispersion |
≤ 0.1ps |
Polarization Dependent Loss |
≤ 0.3dB |
|
Channel Isolation |
Adjacent ≥ 25dB |
Temperature |
Operating -5 to 65°C Storage -40 to 85°C |
|
Net Weight |
3.5KG |
Dimensions (HxWxD) |
44*440*230mm |
Note: Specified with connectors.
Order Information
|
Product No. |
Product Description |
|
DM40-1U01-C2160 |
DWDM MUX/ DEMUX 20CH 40 Waves (RX C21-C40/ TX C41-C60), Single fiber, LC/UPC, 1U Rack Side A |
|
DD40-1U01-C2160 |
DWDM MUX/ DEMUX 20CH 40 Waves (RX C41-C60/ TX C21-C40), Single fiber, LC/UPC, 1U Rack Side B |
Note: We Support Customized Design, please contact us by email.
