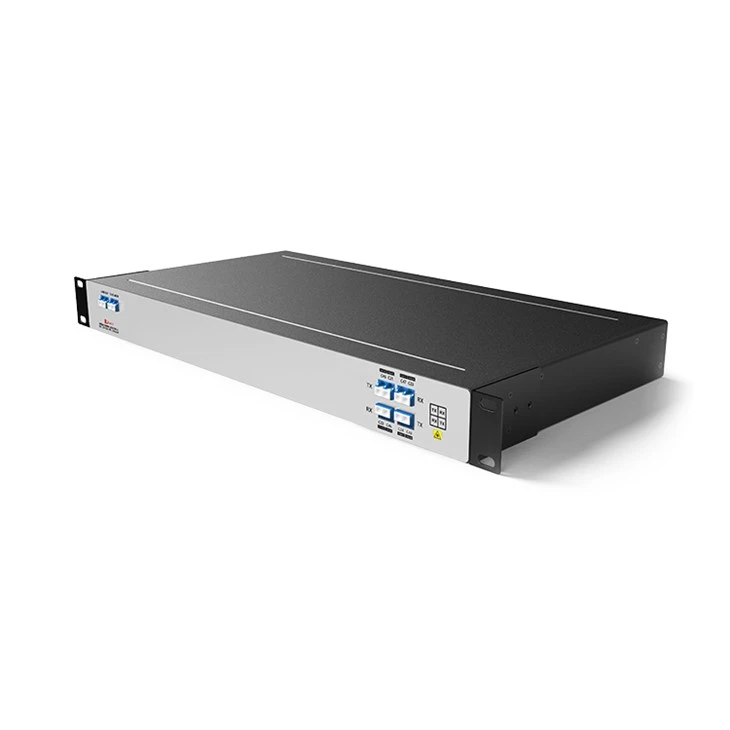

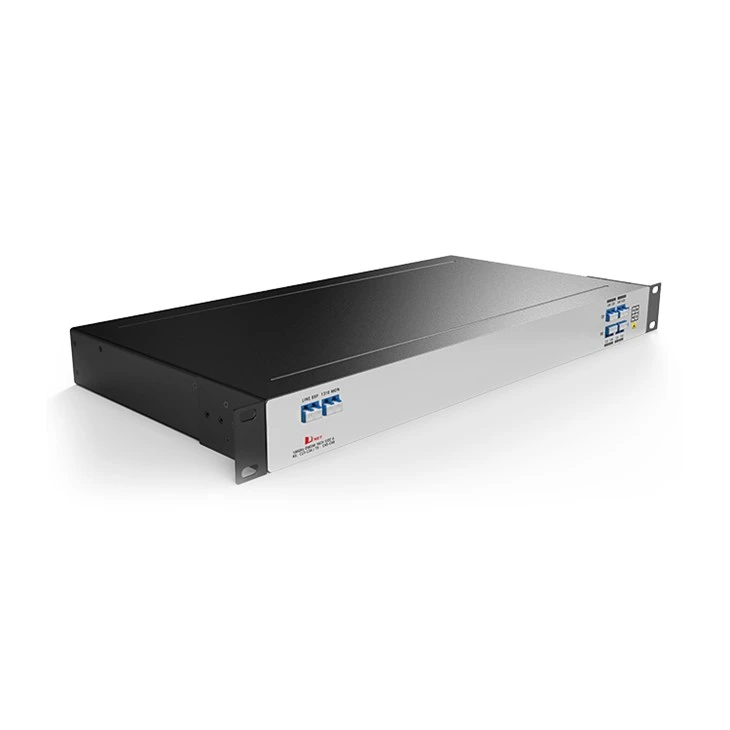

Single Fiber 4CH (8 Wavelength ) DWDM Mux And Demux 1U Rack

Single Fiber 4CH 8 Waves DWDM MUX/ DEMUX, With Monitor, 1310nm and EXP Port, LC/UPC, 1U Rack
The 4CH 8 wavelength DWDM mux and demux 1U rack supports bidirectional signal transmission on a single mode fiber, saving fiber resources. This device has a MON monitoring port, 1310nm port, and EXP port. The single fiber 4CH DWDM mux and demux use high-quality components and design, with good interference and stability to ensure reliable operation under various environmental conditions.

Send Inquiry

Description

Technical Parameters

Product Features

● Low insertion loss
● High channel isolation degree
● Support single fiber bidirectional transmission
● 1310nm port IL<0.8dB, with pass-band ± 50nm, can support 10G BIDI 1270/1330nm

Product Details

Pairs of single fiber 4CH DWDM mux and demux devices, housed in a 1U rack, are commonly used. Side A features a wavelength range for RX from C21 to C24 (1560.61nm to 1558.17nm) and for TX from C45 to C48 (1541.35nm to 1538.98nm). Conversely, side B has an RX wavelength range of C45 to C48 (1541.35nm to 1538.98nm) and a TX range of C21 to C24 (1560.61nm to 1558.17nm). These mux and demux devices enable point-to-point transmission of differential services over four channels on a single fiber. Due to their compact design, they can be effortlessly installed in racks or other suitable equipment, making them ideal for a range of applications, including data centers and telecommunications operations.

Product Panel

4CH DWDM MUX/ DEMUX Single Fiber Side A

4CH DWDM MUX/ DEMUX Single Fiber Side B

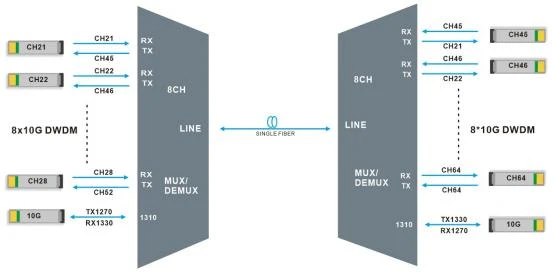

Line Link

4CH DWDM MUX/ DEMUX Single fiber transmission

Hot Tags: single fiber 4ch (8 wavelength ) dwdm mux and demux 1u rack, China single fiber 4ch (8 wavelength ) dwdm mux and demux 1u rack manufacturers, suppliers, factory, QSFP-40G-ER4, Mechanical Optical Switch, SFP-10G-CWDM-1470-40, DDM40-1U01-C2160, QSFP28-2X50G-AOC, SFPDD 100G DAC 1 10 M

Product Specification

Wavelength	4ch 8 waves C21-C24/C45-C48	Channel Spacing	100GHz (0.8nm)
Channel Passband	±0.11nm	Technology	TFF (Thin Film Filter)
Insertion Loss	≤ 2.5dB	Link Loss	≤ 3.5dB
1310nm Port Pass Band Width	1260nm~1360nm	Insertion Loss @ 1310 port	≤ 0.8dB
Insertion Loss @ 1% Mon	≤ 26dB	Center Wavelength Accuracy	±0.05nm
Return Loss	≥ 45dB	Directivity	≥ 45dB
Polarization Mode Dispersion	≤ 0.1ps	Polarization Dependent Loss	≤ 0.3dB
Channel Isolation	Adjacent ≥30dB Non-adjacent ≥ 45dB	Temperature	Operating -40 to 85°C Storage -40 to 85°C
Net Weight	3.5KG	Dimensions (HxWxD)	44440230mm

Order Information

Product No.	Product Description
DM8-1U01-C2148-31M-A	DWDM MUX//DEMUX 4CH 8Waves (RX C21-C24/TX C45-C48) With Monitor, 1310nm and EXP Single fiber, LC/ UPC, 1U Rack, Side A
DD8-1U01-C2148-31M-B	DWDM MUX/ DEMUX4CH 8Waves (RX C45-C48/TX C21-C24) With Monitor, 1310nm and EXP Single fiber, LC/ UPC, 1U Rack, Side B

Note: We Support Customized Design, please contact us by email.

FAQ

Q: Does the Single fiber 4CH DWDM mux and demux 1U rack support hot swapping?

A: Yes, it usually supports hot swapping functionality, allowing for module insertion and replacement during runtime without affecting the overall system's operational status.

Q: Does the 4CH 8 wavelength DWDM mux and demux 1U rack device support fiber amplifiers or other fiber optic devices?

A: Yes, single fiber 4CH DWDM mux and demux can be used in conjunction with other fiber optic devices (such as fiber amplifiers) to expand transmission distance or enhance signal quality.

Q: Does this DWDM device have an impact on network performance?

A: The impact on network performance is relatively minor. The 1U rack housing the 4CH 8-wavelength DWDM mux and demux utilizes DWDM technology for multiplexing and demultiplexing signals, thereby facilitating high-capacity data transmission.
