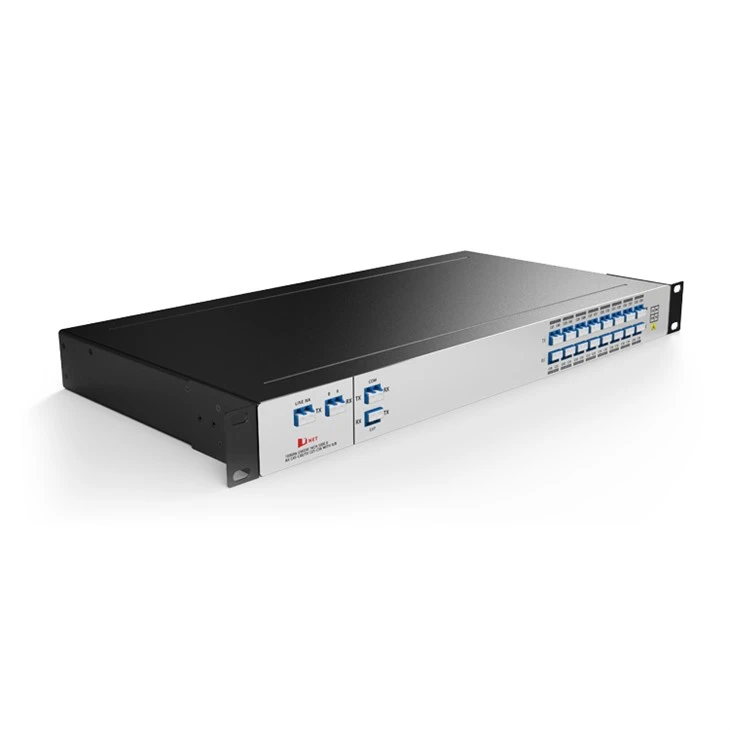

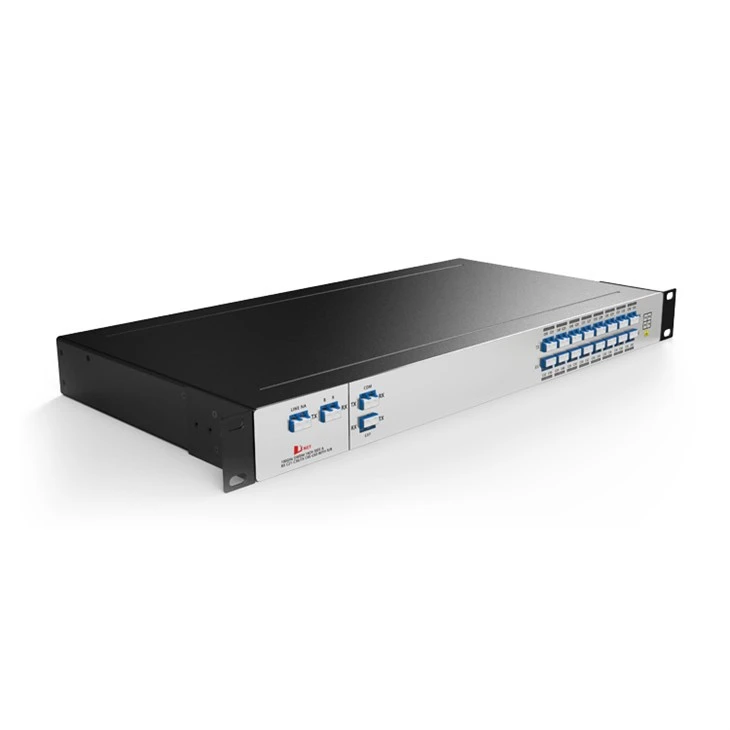

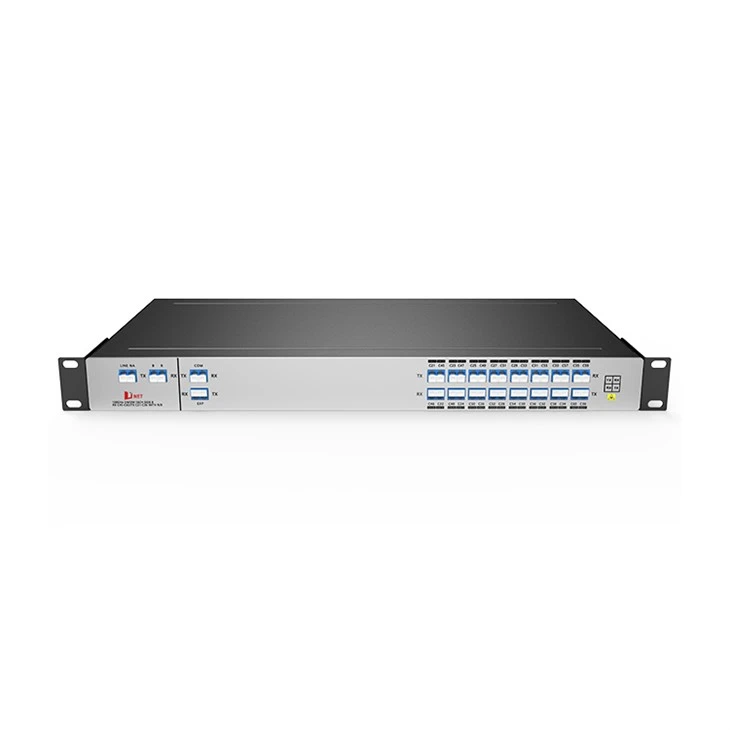

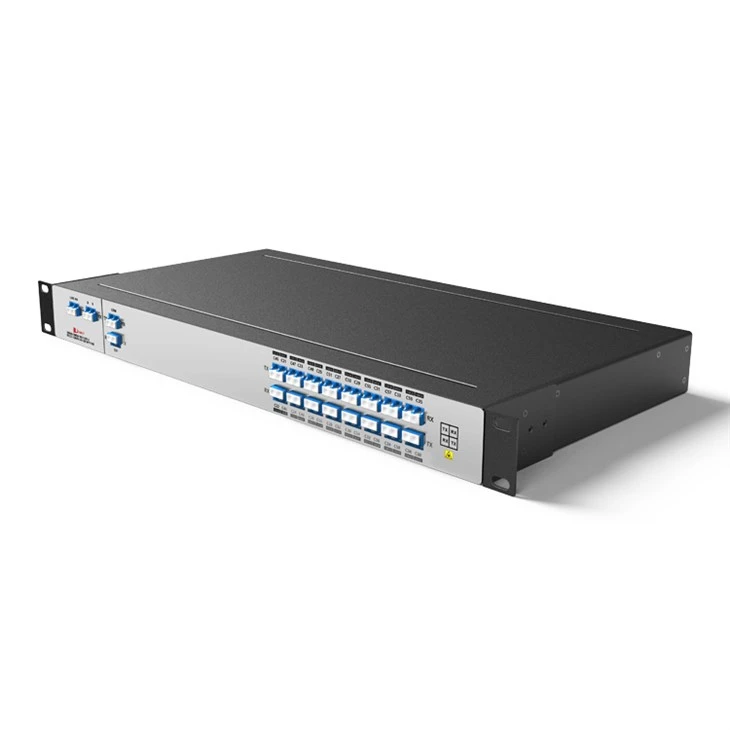

Single Fiber 16CH (32 Wavelength ) DWDM Mux And Demux 1U Rack

Single Fiber 16CH C21-C36/C45-C60 DWDM MUX DEMUX, With RB, LC/UPC, 1U Rack
The 16CH 32 wavelength DWDM mux and demux 1U rack is a multiplexing and demultiplexing device used in fiber optic communication systems. It can achieve multiplexing and demultiplexing of 16 different channels on a single fiber. According to the ITU-TG. 694.1 100 GHz grid, the single fiber 16CH DWDM mux and demux wavelength ranges from C21 to C36 / C45 to C60, maximizing the capacity in the c-band range.

Send Inquiry

Description

Technical Parameters

Product Details

The 1U rack-mounted single fiber DWDM mux and demux plays a pivotal role in fiber optic communication networks. It incorporates an RB device, comprising a pair of filters: one designed for transmitting red light channels (e.g., C21-C36) and the other for blue light channels (e.g., C45-C60). The integration of RB devices in single fiber DWDM systems enhances fiber resource utilization, lowers system costs, and facilitates high-density fiber optic communication along with flexible bidirectional data transmission.

Product Panel

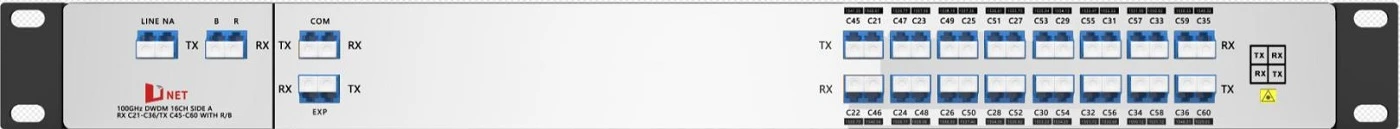

16CH 32Waves RX C21~C36 (1560.61nm~1548.51nm) / TX C45~C60 (1541.35nm~1529.55nm) DWDM MUX DEMUX, With R/B Port Single fiber in Side A

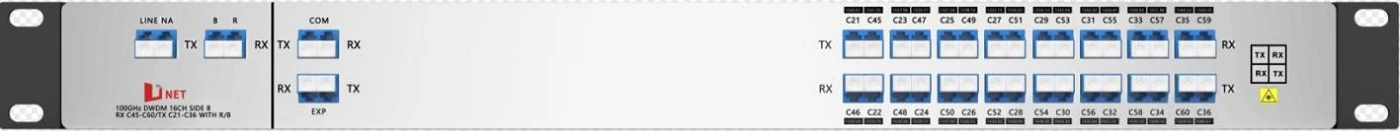

16CH 32Waves RX C45~C60 (1541.35nm~1529.55nm)/ TX C21~C36 (1560.61nm~1548.51nm) DWDM MUX DEMUX, With R/B Port Single fiber in Side B

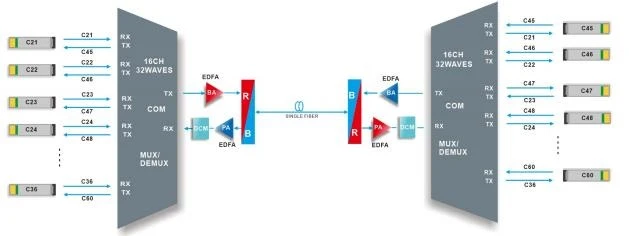

Line Link

16CH DWDM MUX/ DEMUX Single fiber BIDI transmission

Hot Tags: single fiber 16ch (32 wavelength ) dwdm mux and demux 1u rack, China single fiber 16ch (32 wavelength ) dwdm mux and demux 1u rack manufacturers, suppliers, factory, SFP-10G-ER, QSFP-40G-ER4, QSFP28-100G-SR4, 10G BIDI SFP , DDM40-1U01-C2160, SFP28-CWDM-1270

Product Specification

Wavelength	C21~C36/C45~60	Channel Spacing	100GHz (0.8nm)
Channel Passband	±0.11nm	Technology	TFF (Thin Film Filter)
Insertion Loss	≤ 4.0dB	Center Wavelength Accuracy	±0.05nm
Return Loss	≥ 45dB	Directivity	≥ 45dB
Polarization Mode Dispersion	≤ 0.1ps	Polarization Dependent Loss	≤ 0.3dB
Channel Isolation	Adjacent ≥30dB Non-adjacent ≥ 45dB	Temperature	Operating -20 to70°C Storage -40 to 85°C
Net Weight	3.5KG	Dimensions (HxWxD)	44440230mm

Note: Specified with connectors.

Order Information

Product No.	Product Description
DM32-1U01-C2160-RB-A	DWDM MUX DEMUX 16CH 32Waves (RX C21~C36/ TX C45~C60), With R/B Port Single fiber in Side A
DD32-1U01-C2160-RB-B	DWDM MUX DEMUX 16CH 32Waves (RX C45~C60/ TX C21~C36), With R/B Port Single fiber in Side B

Note: We Support Customized Design, please contact us by email.

FAQ

Q: What is single fiber 16CH DWDM mux and demux with RB?

A: Single fiber DWDM mux and demux 1U rack is a single fiber 16 channel DWDM multiplexer with RB (red blue light device). It can achieve simultaneous transmission and separation of multiple signals on a single fiber, support 16 different wavelength channels, and use RB devices to achieve signal multiplexing and demultiplexing of red and blue light.

Q: What are the advantages of a single fiber 16CH 32 wavelength DWDM mux and demux 1U rack?

A: A: Its main advantages include:
High density: It can achieve the transmission and separation of multiple signals on a single optical fiber, providing a highly integrated optical communication solution.
High capacity: By using different wavelengths to achieve simultaneous transmission of multiple channels, the transmission capacity of optical fibers is greatly improved.
Flexibility: Supports 16 different channels and can be configured and adjusted according to requirements.
Simplified deployment: Use a single fiber optic to transmit multiple signals, reducing the number of fibers and equipment costs.
Compatibility: Compatible with existing optical communication devices and protocols, making it easy to integrate into existing networks.
