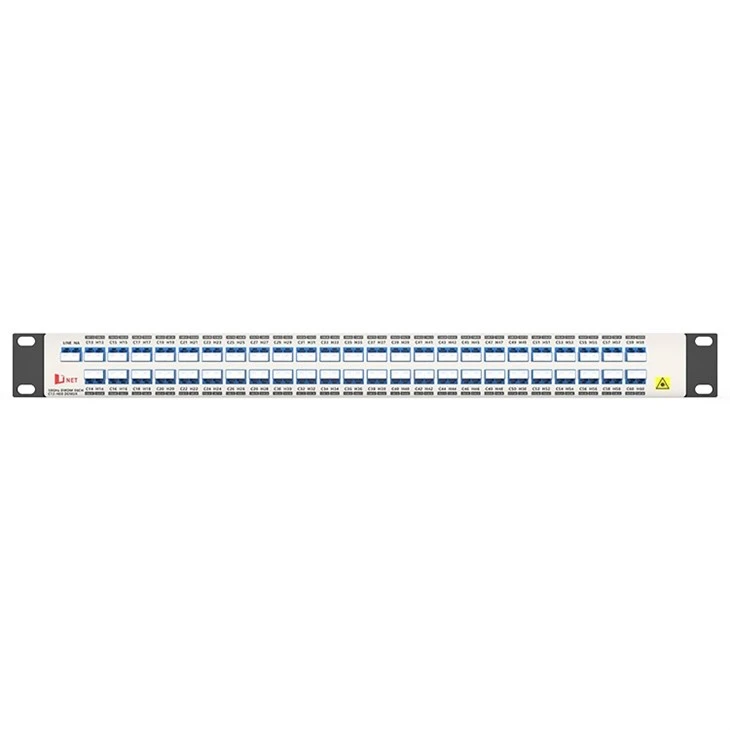

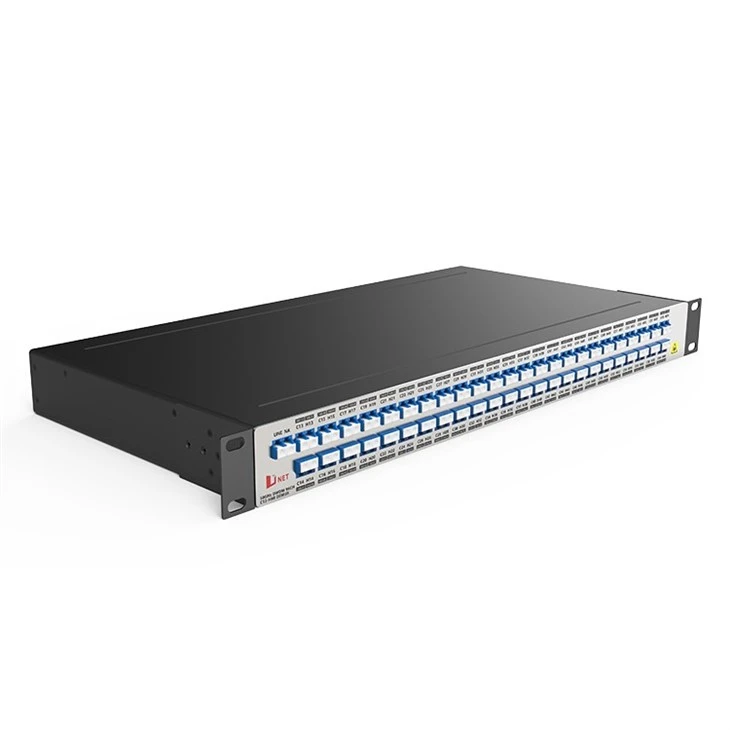

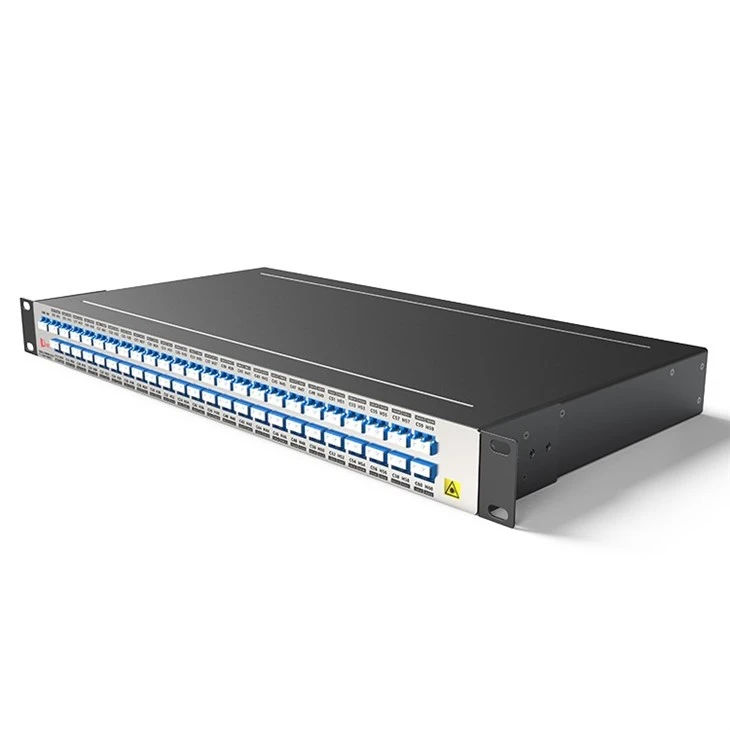

96CH AAWG DWDM MUX DEMUX Single Fiber 1U

Single fiber 96CH C13-H60 DWDM MUX/DEMUX, 50GHZ AAWG, LC/UPC 1U Rack
The Single Fiber 96CH C13-H60 DWDM technology offers a compact and cost-effective solution for high-capacity data transmission. With 96 channels of optical transmitting over a single fiber, this technology offers incredible bandwidth and network capacity. The innovation allows data to be transmitted at a faster rate, allowing businesses and individuals to communicate seamlessly, regardless of the distance between locations.

Send Inquiry

Description

Technical Parameters

D-net`s DWDM MUX DEMUX Service

● Compatibility Assistance: D-NET offers compatibility services to ensure optical modules are compatible with equipment from leading manufacturers.
● Personalized Services: D-NET provides OEM customization options for its products. Upon request, customers can have colored logo labels tailored to their needs.
● Standard Delivery Period: 3 Days
● Extensive Shipping Solutions: D-NET collaborates with highly reputable courier companies such as SF, FedEx, DHL, UPS, and others to ensure reliable shipping services.

Product Specification

Wavelength	96channels C13/H13-C60/H60	Channel Spacing	50GHz (0.4nm)
Center Wavelength Accuracy	±0.05nm	Technology	AAWG (Gaussian)
Insertion Loss	≤ 5.0dB	Link Loss	≤ 10dB
Total Crosstalk	≥25dB	Ripple in Passband	≤ 0.75dB
-1dB passband	≥0.18dB	-3dB passband	≥0.28dB
Return Loss	≥ 40dB	Directivity	≥ 40dB
Polarization Mode Dispersion	≤ 0.5ps	Polarization Dependent Loss	≤ 0.5dB
Channel Isolation	Adjacent ≥ 25dB Non-adjacent ≥ 30dB	Temperature	Operating -5 to 65°C Storage -40 to 85°C
Net Weight	1.7KG	Dimensions (HxWxD)	44440230mm

Hot Tags: 96ch aawg dwdm mux demux single fiber 1u, China 96ch aawg dwdm mux demux single fiber 1u manufacturers, suppliers, factory, SFP-10G-CWDM-1470-40, QSFP28-100G-ZR4, QSFP28-100G-LR4, , DDM40-1U01-C2160, DOM80-1U01-C2160

Application Linking

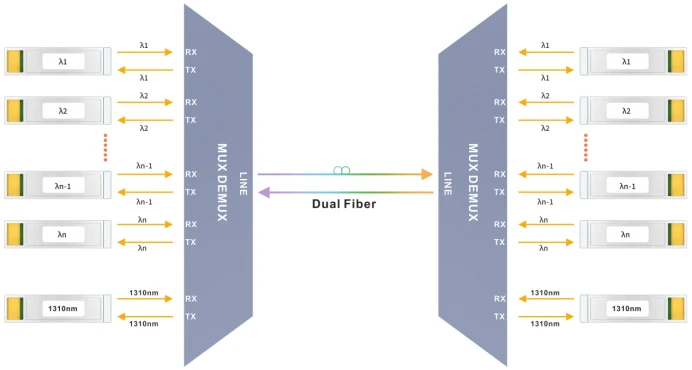

product-692-370

Multi-rate hybrid multiplexing service

allows for flexible combinations of 1G/10G/25G/40G/100G/200G Ethernet, SAN, OTN, SDH/SONET, and local video services.

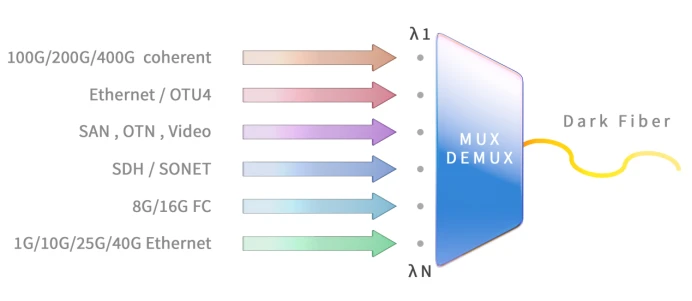

product-692-301

Types of DWDM network applications

Type1: point-to-point transmission

Type2: Ring transmission

Type3: cross-connection

Order Information

Part Number

Description

DA96-1U01-C13H60

50Ghz DWDM AAWG MUX/ DEMUX 96CH (C13/H13-C60/H60)

Single fiber, LC/UPC , 1U Rack

Note: We Support Customized Design, please contact us by email.

FAQ

Q: What is the transmission distance of Single fiber 96CH C13-H60 DWDM?

A: Single fiber 96CH C13-H60 DWDM offers a transmission distance of up to 80 kilometers. This ensures long-distance transmission of data, which is ideal for various applications.

Q: Is Single fiber 96CH C13-H60 DWDM a cost-effective solution?

A: Single fiber 96CH C13-H60 DWDM provides a highly cost-effective solution for network operators and communication service providers. It supports the transmission of multiple channels on a single fiber, reducing the overall costs of infrastructure investment.

Q: What is the transmission speed of Single fiber 96CH C13-H60 DWDM?

A: Single fiber 96CH C13-H60 DWDM supports the transmission of data at high speeds, typically ranging from 100Gbps to 400Gbps.
