Single Fiber OADM DWDM

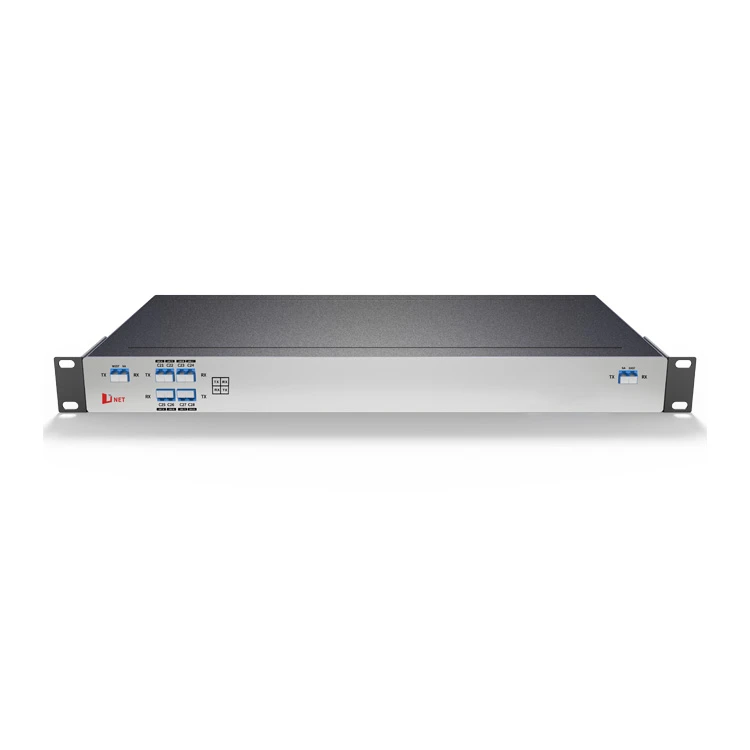

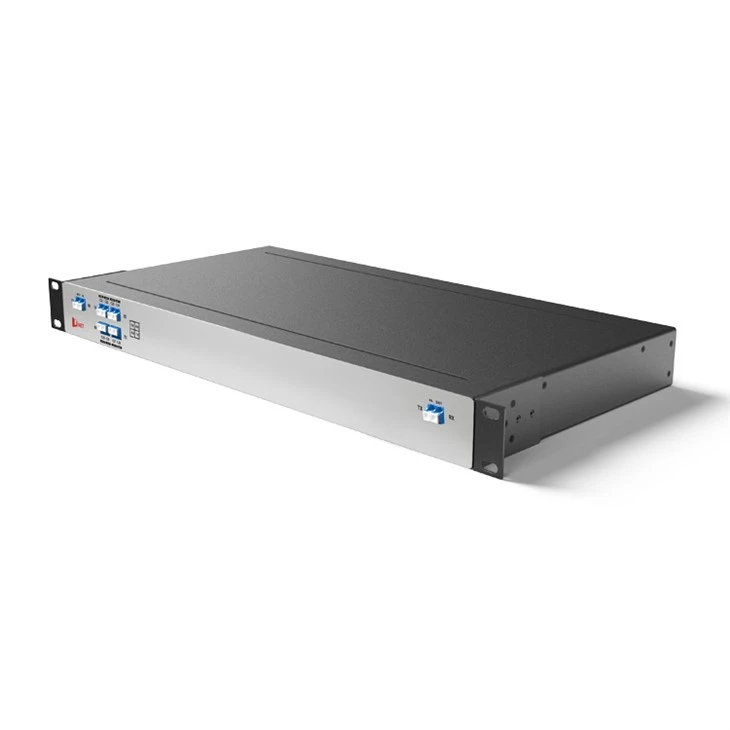

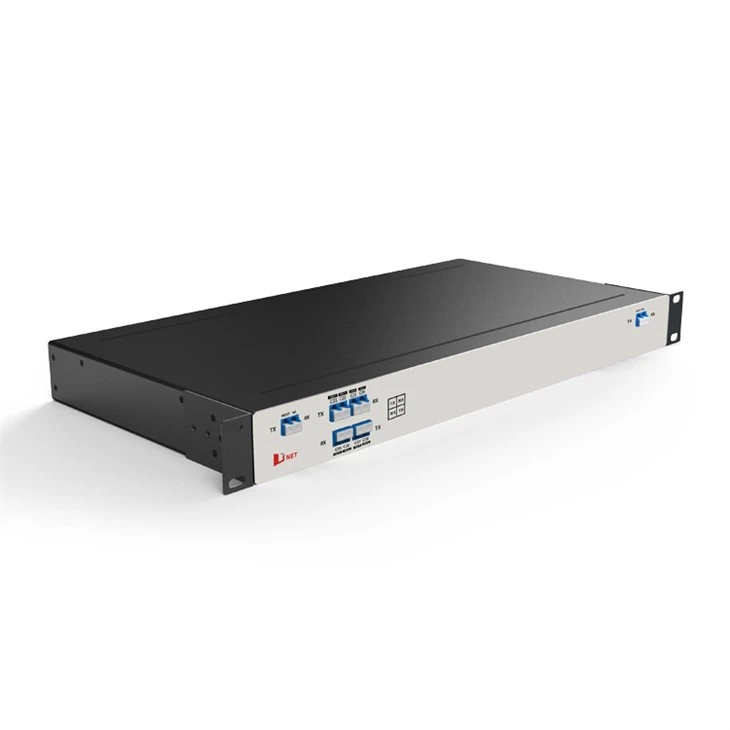

Single Fiber 4CH(8Waves) DWDM OADM, WEST Or EAST, LC/UPC, 1U Rack
OADM DWDM single fiber west or east devices have the ability of optical channel isolation/merging, which can add or drop specific channels or wavelengths, and achieve detour or interception of certain channels. DWDM OADM 4CH west or east has the characteristic of low loss,The loss of the waves to west or east is < 2.4dB, line loss of west to east( or east to west) is < 3.5dB.

Send Inquiry

Description

Technical Parameters

Product Details

D-NET, a leading manufacturer based in China, specializes in producing equipment for Dense Wavelength Division Multiplexing (DWDM). Their DWDM OADM 4CH device, configurable for both westbound and eastbound transmission, efficiently supports the transmission of four channels of data over a single fiber, significantly conserving fiber resources. As a Chinese manufacturer with its own factory, D-NET offers this versatile single-fiber OADM DWDM 4CH solution, which can be tailored to customer-specific wavelengths. Renowned for its reliable quality, this device is ideal for constructing high-capacity, high-speed optical communication systems, enabling long-distance data transmission and meeting the needs of diverse customers worldwide.

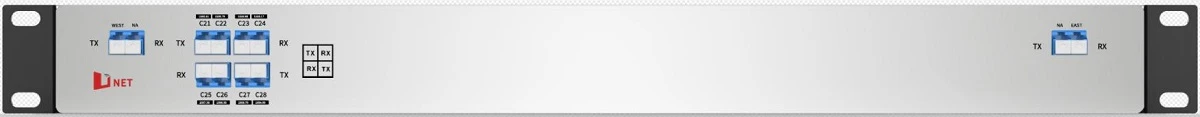

Product Panel

4CH DWDM OADM Single Fiber West or East

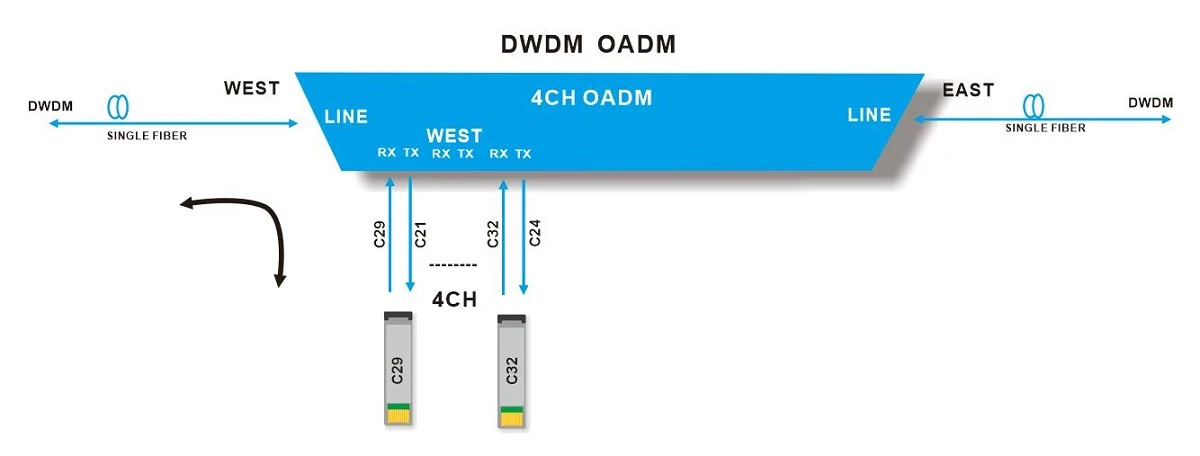

Line Link

4CH DWDM OADM Single fiber transmission

Hot Tags: Single Fiber OADM DWDM, China Single Fiber OADM DWDM manufacturers, suppliers, factory, SFP28-CWDM-1270, C MUX and DEMUX 18CH 1U 2761, SFP-10G-CWDM-1270-10, SFP-10G-CWDM-1470-80, CWDM SFP, DDM40-1U01-C2160

Product Specification

Wavelength	OADM 4CH (8 Waves)	Channel Spacing	100GHz (0.8nm)
Channel Passband	±0.11nm	Technology	TFF (Thin Film Filter)
Insertion Loss	≤ 2.4dB( waves to west or east)	Link Loss	≤ 3.5dB ( west to east)
Return Loss	≥ 45dB	Directivity	≥ 45dB
Polarization Mode Dispersion	≤ 0.1ps	Polarization Dependent Loss	≤ 0.3dB
Channel Isolation	Adjacent ≥30dB Non-adjacent ≥ 45dB	Temperature	Operating -40 to 85°C Storage -40 to 85°C
Net Weight	3.5KG	Dimensions (HxWxD)	44440230mm

Note: Specified with connectors.

Order Information

Product No.	Product Description
DOA4-1U01-C2128-SS	DWDM OADM Drop and Add 4CH (C21-C28), west or east, Single fiber, LC/UPC, 1U Rack

Note: We Support Customized Design, please contact us by email.

FAQ

Q: What are the advantages of Single fiber OADM DWDM 4CH west or east?

A:It is capable of achieving unidirectional multi-wavelength division multiplexing over a single fiber, thereby conserving fiber resources and lowering system costs. Additionally, it boasts low insertion loss, high wavelength selectivity, and consistent performance.

Q: Does OADM DWDM single fiber west or east support bidirectional communication?

A: No, OADM DWDM single fiber west or east only supports one-way communication, that is, west or east transmission.

Q: Can Single fiber OADM DWDM 4CH west or east be extended to more channels?

A: Of course, While the example provided here refers to 4 channels, the Single fiber OADM DWDM technology has the capacity to be scaled up to accommodate more channels, such as 8 channels, 16 channels, or even a higher number based on specific needs.
