Single Fiber 8CH (16 Wavelength ) DWDM Mux And Demux 1U Rack

Single Fiber 8CH 16 Waves DWDM MUX/ DEMUX, With Monitor, 1310nm and EXP Port, LC/UPC, 1U Rack
The 8CH(16waves) DWDM MUX/ DEMUX is designed by D-NET, Equipped with MON monitoring port, 1310 port, and EXP port, the 1310nm port IL<0.8dB, pass band is ± 50nm, and can support 10G BIDI 1270/1330nm; The Mon port is used for network link monitoring or power monitoring, while the EXP port is an upgrade port used for expanding and connecting other fiber optic devices. It provides flexible expansion options to connect multiple MUX DEMUX devices in series on a single fiber, enabling larger capacity fiber optic transmission.

Send Inquiry

Description

Technical Parameters

Product Details

The D-NET 8CH(16waves) DWDM MUX/DEMUX enables the simultaneous support of 8 different communication channels within a single optical fiber for point-to-point transmission. Typically, this product is used in pairs. On side A, it receives wavelengths ranging from RX C21 to C28 (1560.61nm to 1554.94nm) and transmits wavelengths from TX C45 to C52 (1541.35nm to 1535.82nm). Conversely, on side B, it receives wavelengths from RX C45 to C52 (1541.35nm to 1535.82nm) and transmits wavelengths ranging from TX C21 to C28 (1560.61nm to 1554.94nm). This product is widely applicable in industries such as broadcasting, television, IDC, cloud computing, and large-scale data handling.

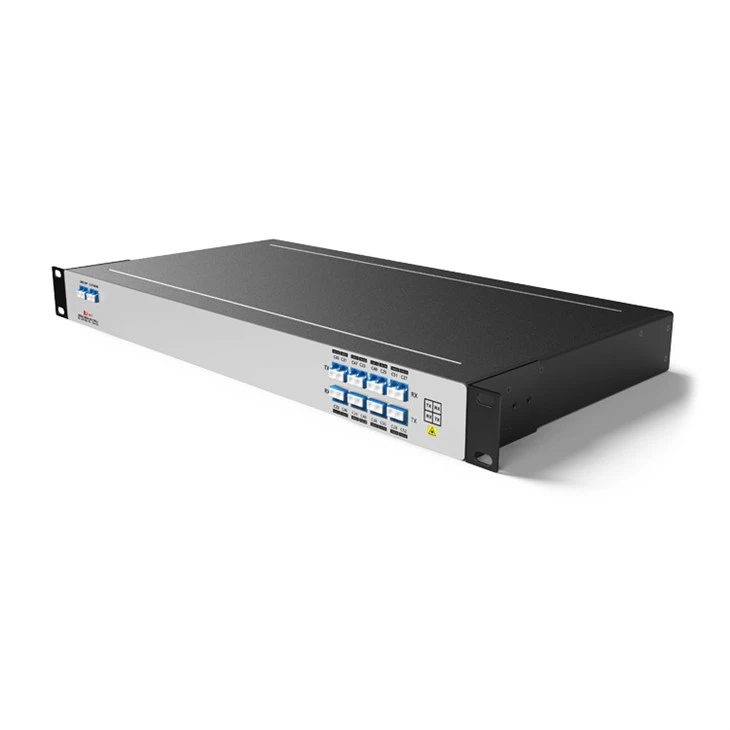

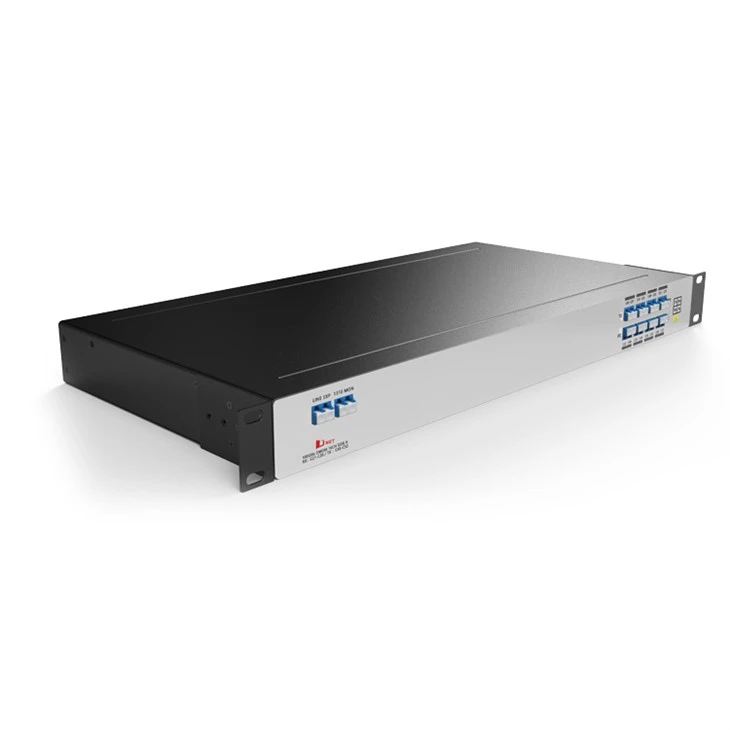

Product Panel

8CH DWDM MUX/ DEMUX Single Fiber Side A

8CH DWDM MUX/ DEMUX Single Fiber Side B

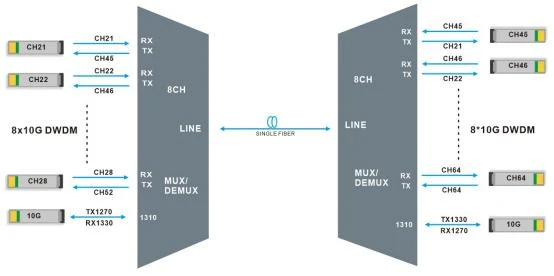

Line Link

8CH DWDM MUX/ DEMUX Single fiber transmission

Hot Tags: single fiber 8ch (16 wavelength ) dwdm mux and demux 1u rack, China single fiber 8ch (16 wavelength ) dwdm mux and demux 1u rack manufacturers, suppliers, factory, C MUX and DEMUX 18CH 1U 2761, 10G BIDI SFP , DDM40-1U01-C2160, CWDM SFP, QSFP28-100G-SR4, Mechanical Optical Switch

Product Specification

Wavelength	8ch 16 wavesC21-C28/C45-C52	Channel Spacing	100GHz (0.8nm)
Channel Passband	±0.11nm	Technology	TFF (Thin Film Filter)
Insertion Loss	≤ 3.5dB	Link Loss	≤ 4.5dB
1310nm Port Pass Band Width	1260nm~1360nm	Insertion Loss @ 1310 port	≤ 0.8dB
Insertion Loss @ 1% Mon	≤ 26dB	Center Wavelength Accuracy	±0.05nm
Return Loss	≥ 45dB	Directivity	≥ 45dB
Polarization Mode Dispersion	≤ 0.1ps	Polarization Dependent Loss	≤ 0.3dB
Channel Isolation	Adjacent ≥30dB Non-adjacent ≥ 45dB	Temperature	Operating -40 to 85°C Storage -40 to 85°C
Net Weight	3.5KG	Dimensions (HxWxD)	44440230mm

Note: Specified with connectors.

Order Information

Product No.	Product description
DM16-1U01-C2152-31M-A	DWDM MUX//DEMUX 8CH 16Waves (RX C21-C28/TX C45-C52) With Monitor, 1310nm and EXP Single fiber, LC/ UPC, 1U Rack, Side A
DD16-1U01-C2152-31M-B	DWDM MUX/ DEMUX 8CH 16Waves (RX C45-C52/TX C21-C28) With Monitor, 1310nm and EXP Single fiber, LC/ UPC, 1U Rack, Side B

Note: We Support Customized Design, please contact us by email.

FAQ

Q: How many independent channels can be achieved using Single Fiber 8CH 16 Waves DWDM MUX/DEMUX?

A: The Single Fiber 8CH 16 Waves DWDM MUX/DEMUX can achieve 8 independent optical signal channels, each corresponding to a different wavelength. It supports multiplexing and demultiplexing of 16 wavelengths, thus enabling up to 16 optical signal channels.

Q: What types of connection interfaces are supported by the EXP port?

A: EXP ports typically support standard fiber optic connection interfaces, such as LC (Lucent Connector) or SC (subscriber connector). You can use corresponding fiber optic cables to connect the EXP port to other devices or modules.

Q: What are the applications of Single Fiber 8CH 16 Waves DWDM MUX/DEMUX in fiber optic communication?

A: The Single Fiber 8CH 16 Waves DWDM MUX/DEMUX can be applied in fields such as fiber backbone networks, data center interconnections, and optical transport networks. It can be used to increase the transmission capacity of fiber optic networks and improve data transmission rates
