Product Details

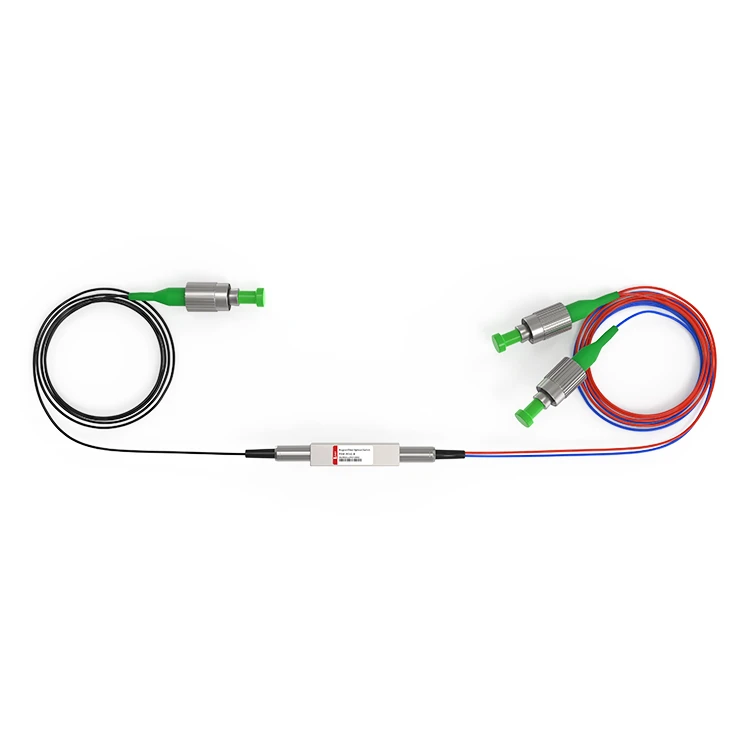

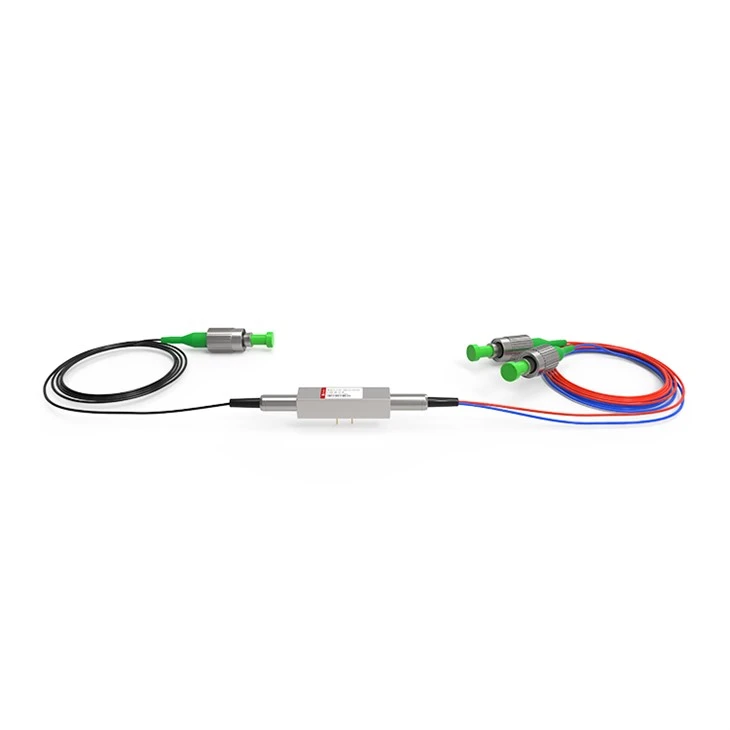

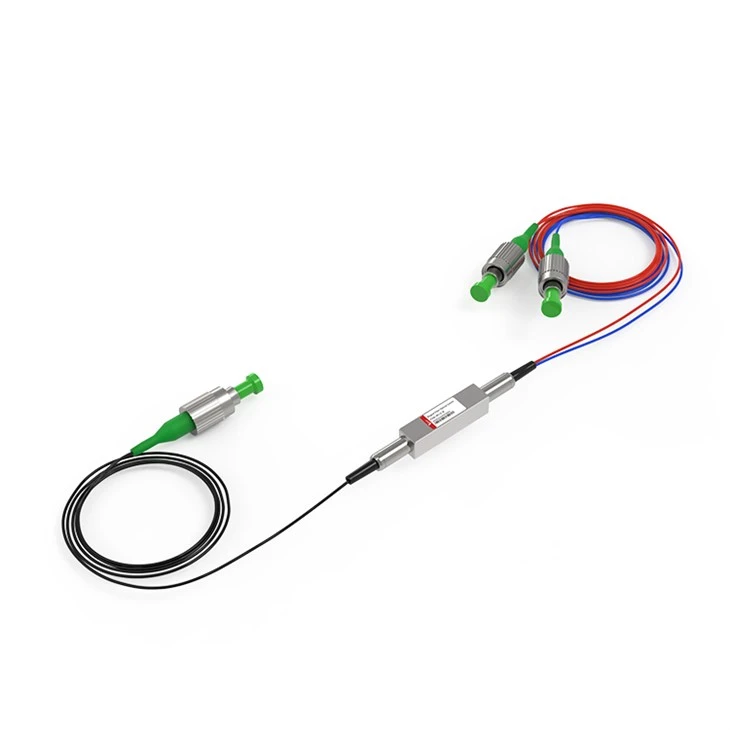

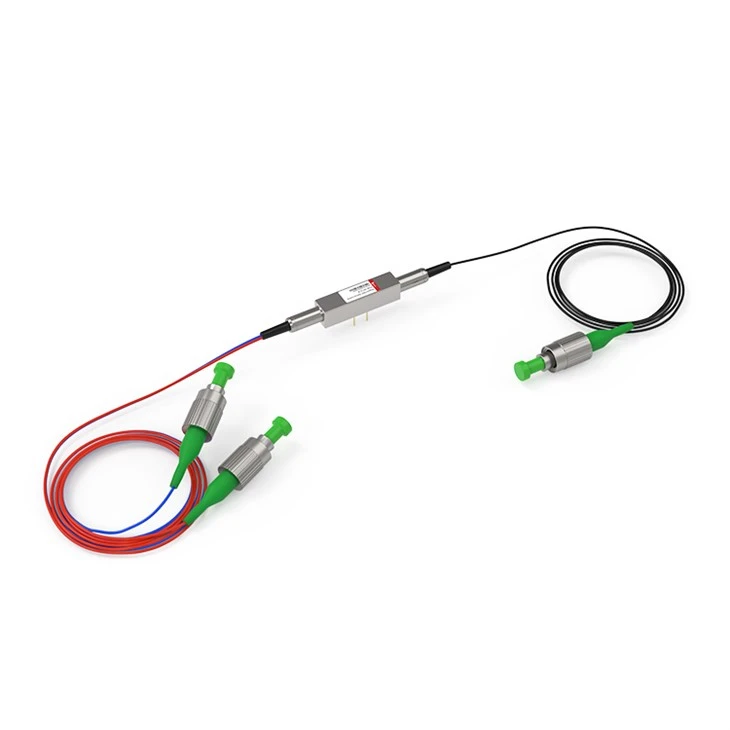

The 1X2 Magneto-Optical Switch operates by altering the magnetic field within the switch, which in turn changes the path of optical signals traveling through the optical waveguides. This mechanism is commonly utilized in aerospace equipment and sensor systems for signal switching purposes.
Hot Tags: m1x2 magneto-optical switch, China m1x2 magneto-optical switch manufacturers, suppliers, factory, QSFP-40G-ZR4, QSFP28-100G-ER4, SFP-10G-DWDM-C60-40, , SFP-10G-BIDI-1330-10, SFP-10G-DWDM-C21-80
Performance Specifications
|
Parameters |
Unit |
Specifications |
|
Wavelength Range |
nm |
1520 ~ 1580 |
|
Test Wavelength |
nm |
1550 |
|
Insertion Loss1, 2 |
dB |
≤ 1.2 |
|
TDL |
dB |
≤ 0.30 |
|
PDL |
dB |
≤ 0.20 |
|
Return Loss |
dB |
≥ 50 |
|
Crosstalk |
dB |
Bidirectional ≥ 20 |
|
Unidirectional ≥ 40 |
||
|
Repeatability |
dB |
≤ ±0.01 |
|
Switching Time |
us |
≤ 100 |
|
Pulse Duration |
us |
≥ 200 |
|
Durability |
Cycles |
≥10 Bllions |
|
Operating Current |
mA |
≤ 200 |
|
Maximum Optical Power |
mW |
≤ 500 |
|
Operating Temperature |
℃ |
-5 ~ +70 |
|
Storage Temperature |
℃ |
-40 ~ +85 |
|
Dimension |
mm |
(L)30.0×(W)7.5×(H)7.5 ±0.2 |
Note
1. Test at room temperature and SOP.
2. Excluding connectors, 0.2dB for one pair connectors.
Mechanical Dimensions (Unit:mm)

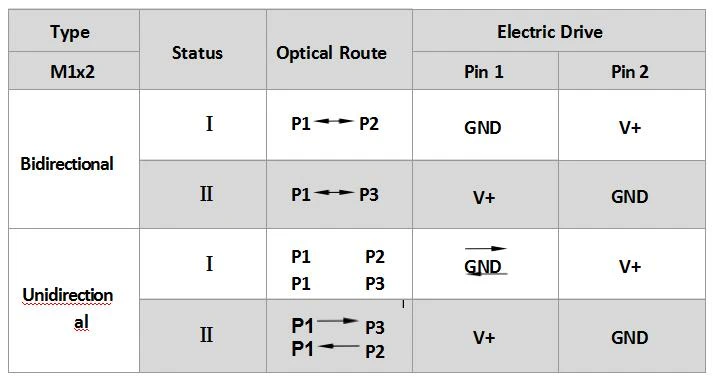

Electrical Drive
Functional Diagram
Ordering Information
FSW-M1x2-□-□-□-□-□-□-□
|
- □ |
- □ |
- □ |
- □ |
- □ |
- □ |
- □ |
|
Switch Type |
Fiber Type |
Voltage |
Wavelength |
Tube Type |
Fiber Length |
Connector |
|
B: Bidirectional U: Unidirectional |
SM: SM, 9/125 X: Others |
2.5: 2.5V 5.0 5.0V |
1550: 1550nm X: Others |
250: 250um 900: 900um X: Others |
05: 0.5m±5cm 10: 1.0m±5cm X: Others |
OO: None FC: FC/PC FA: FC/APC SC: SC/PC SA: SC/APC LC: LC/PC X: Others |
FAQ
