M2x2 Magneto-optical Switch

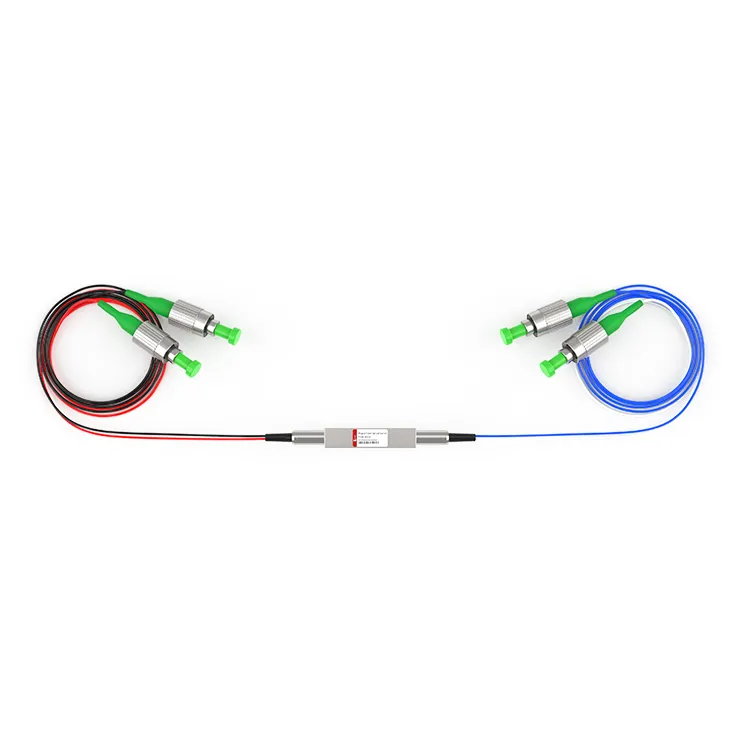

M2x2 Magneto-Optical Switch
The M2X2 Magneto-Optical Switch has a non-mechanical configuration and is activated by electrical control signals. The switch has low insertion loss and less than 1.2 dB, which ensures the transmission quality and stability of optical signal and improves the performance of optical communication system.

Send Inquiry

Description

Technical Parameters

Product Details

Magneto-Optical Switch is widely used in aerospace equipment, system monitoring and sensing systems, with extremely stable latching mode and high reliability. D-NET is a factory specializing in the research and development, production and sales of fiber-optic communication equipment and devices, which can provide OEM services, and the magneto-optical switches can support customized production.

Hot Tags: m2x2 magneto-optical switch, China m2x2 magneto-optical switch manufacturers, suppliers, factory, QSFP28-100G-SR4, , SFP-10G-BIDI-1550-80, SFP28-DWDM-C21, SFP-1G-CWDM-1270-80, QSFP-40G-IR4

Performance Specifications

Parameters	Unit	Specifications
Wavelength Range	nm	1520 ~ 1580
Test Wavelength	nm	1550
Insertion Loss^{1, 2}	dB	≤ 1.2
TDL	dB	≤ 0.30
PDL	dB	≤ 0.20
Return Loss	dB	≥ 50
Crosstalk	dB	Bidirectional ≥ 20
Crosstalk	dB	Unidirectional ≥ 35
Repeatability	dB	≤ ±0.01
Switching Time	us	≤ 100
Pulse Duration	us	≥ 200
Durability	Cycles	≥10 Bllions
Switch Type	NA	Latching
Operating Current	mA	≤ 200
Maximum Optical Power	mW	≤ 500
Operating Temperature	℃	-5 ~ +70
Storage Temperature	℃	-40 ~ +85
Dimension	mm	(L)34.0×(W)7.5×(H)7.5 ±0.2

Note
1. Test at room temperature and SOP.
2. Excluding connectors, 0.2dB for one pair connectors.

Mechanical Dimensions (Unit:mm)

Electrical Drive

Functional Diagram

Ordering Information

FSW-M2x2-□-□-□-□-□-□-□

- □

Switch Type

Fiber Type

Voltage

Wavelength

Tube Type

Fiber Length

Connector

B: Bidirectional

U: Unidirectional

SM: SM, 9/125

X: Others

2.5:

2.5V

5.0

5.0V

1550: 1550nm

X: Others

250: 250um

900: 900um

X: Others

05: 0.5m±5cm

10: 1.0m±5cm

X: Others

OO: None

FC: FC/PC

FA: FC/APC

SC: SC/PC

SA: SC/APC

LC: LC/PC

X: Others

FAQ

Q: What is the difference between the M2X2 magneto-optical switch and other optical switches?

A: Magneto-optic switch uses magnetic field to adjust the switching of optical path, and has different operating principle and performance from other types of optical switch, such as mechanical switch or electro-optic switch.

Q: Does the M2X2 magneto-optical switch support multi-mode operation?

A: 2X2 magneto-optical switches usually support multi-mode operation, suitable for different modes of fiber transmission requirements, D-NET magneto-optical switches can support customization.
