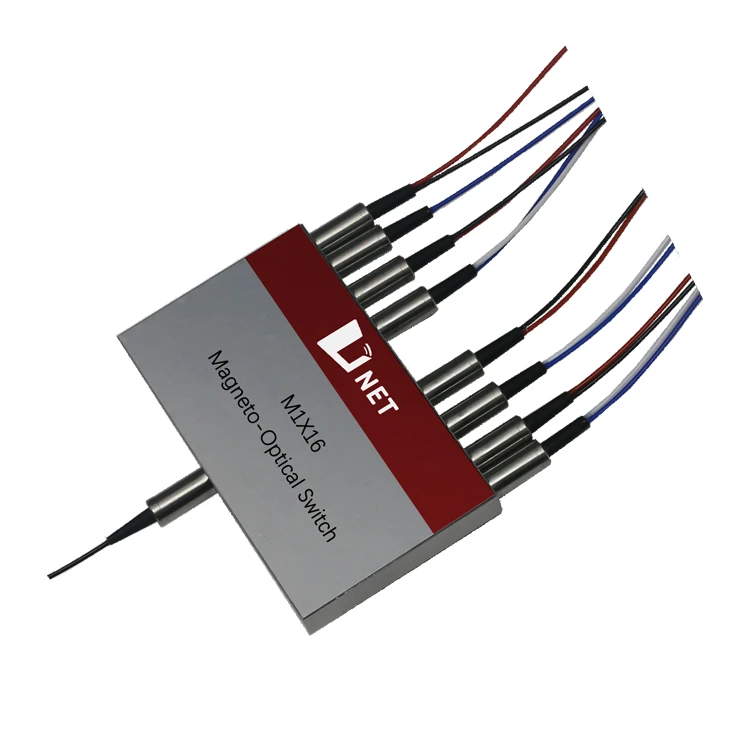

The Magneto-Optical Switch is a versatile component in optical communication systems, capable of dynamically adjusting the optical signal transmission path as needed. It enables flexible network topology and resource allocation, offers rapid response times with nanosecond-level optical switching, and exhibits low insertion loss and high stability.

Hot Tags: m1x16 magneto-optical switch, China m1x16 magneto-optical switch manufacturers, suppliers, factory, QSFP28-100G-ZR4, QSFP28-2X50G-DAC, Mechanical Optical Switch, SFP-10G-DWDM-C60-80, QSFP-40G-SR4

Performance Specifications

Parameters	Unit	Specifications
Wavelength Range	nm	1520 ~ 1580
Test Wavelength	nm	1550
Insertion Loss^{1, 2}	dB	≤ 2.5
TDL	dB	≤ 0.30
PDL	dB	≤ 0.20
Return Loss	dB	≥ 50
Crosstalk	dB	≥ 40
Repeatability	dB	≤ ±0.01
Switching Time	us	≤ 100
Pulse Duration	us	≥ 200
Durability	Cycles	≥100 Billions
Switch Type	NA	Latching
Operating Current	mA	≤ 200
Maximum Optical Power	mW	≤ 500
Operating Temperature	℃	-5 ~ +70
Storage Temperature	℃	-40 ~ +85
Dimension	mm	(L)40.0×(W)33.0×(H)7.5 ±0.2

Note
1. Test at room temperature and SOP.
2. Excluding connectors, 0.2dB for one pair connectors.

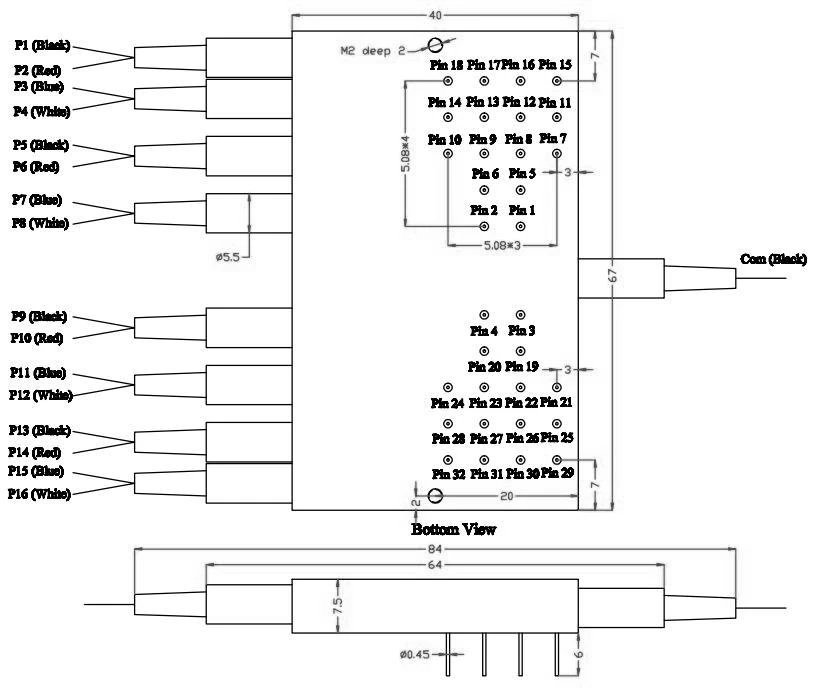

Mechanical Dimensions (Unit:mm)

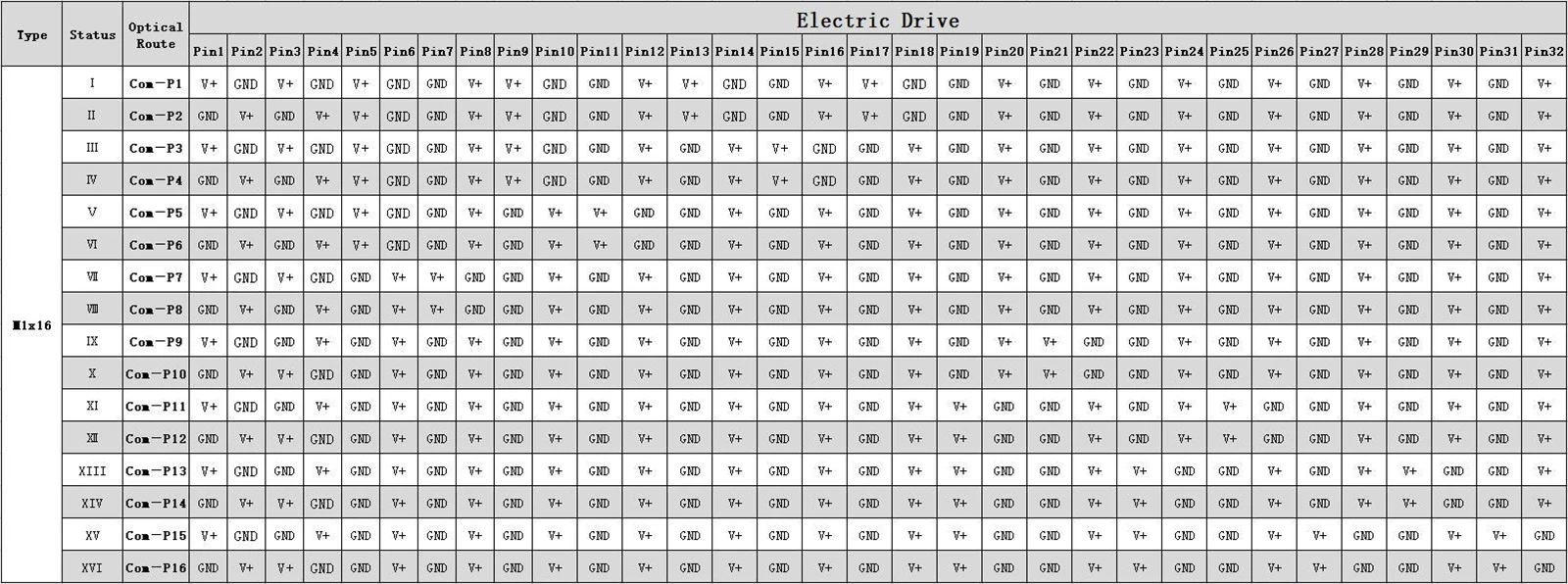

Electrical Drive

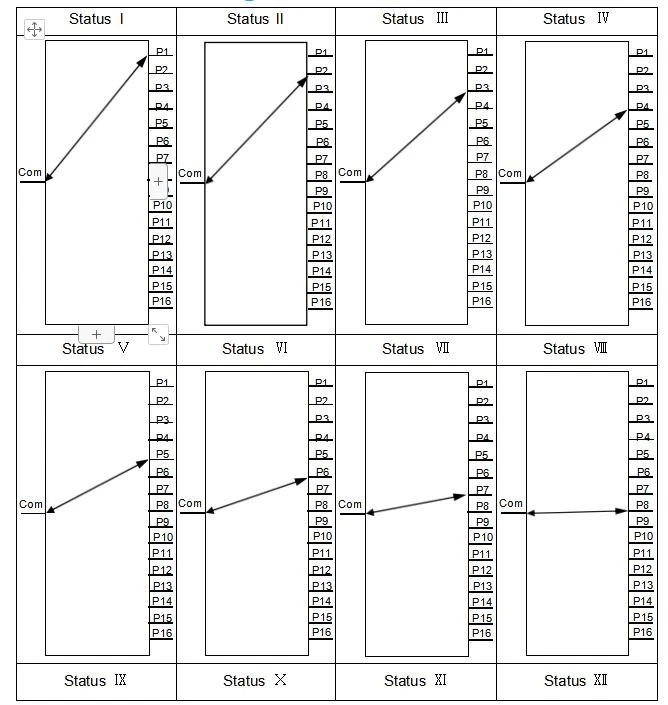

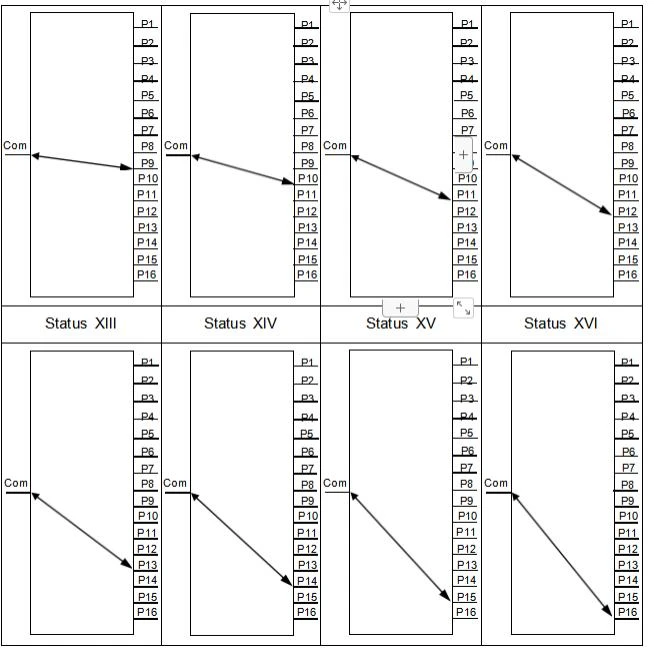

Functional Diagram

FSW-M1x16-□-□-□-□-□-□-□

- □

Switch Type

Fiber Type

Voltage

Wavelength

Tube Type

Fiber Length

Connector

B: Bidirectional

SM: SM, 9/125

X: Others

2.5: 2.5V

X: Others

1550: 1550nm

X: Others

250:250um

900: 900um

X: Others

05: 0.5m±5cm

10: 1.0m±5cm

X: Others

OO: None

FC: FC/PC

FA: FC/APC

SC: SC/PC

SA: SC/APC

LC: LC/PC

X: Others

FAQ

Q: What is the difference between M1X16 magneto-optical switch and M1X8 magneto-optical switch?

A: The M1X16 magneto-optical switch boasts a higher number of output ports compared to the M1X8 magneto-optical switch, allowing it to simultaneously connect a greater number of target devices or channels.

Q: What are the dimensions and interface types of the M1X16 magneto-optical switch?

A: The dimensions and interface types of Magneto-optical switches can be customized according to customer requirements. Common interface types include fiber connector interfaces (such as FC, SC, LC, etc.) or fiber array interfaces (such as MT, MPO, etc.) .
