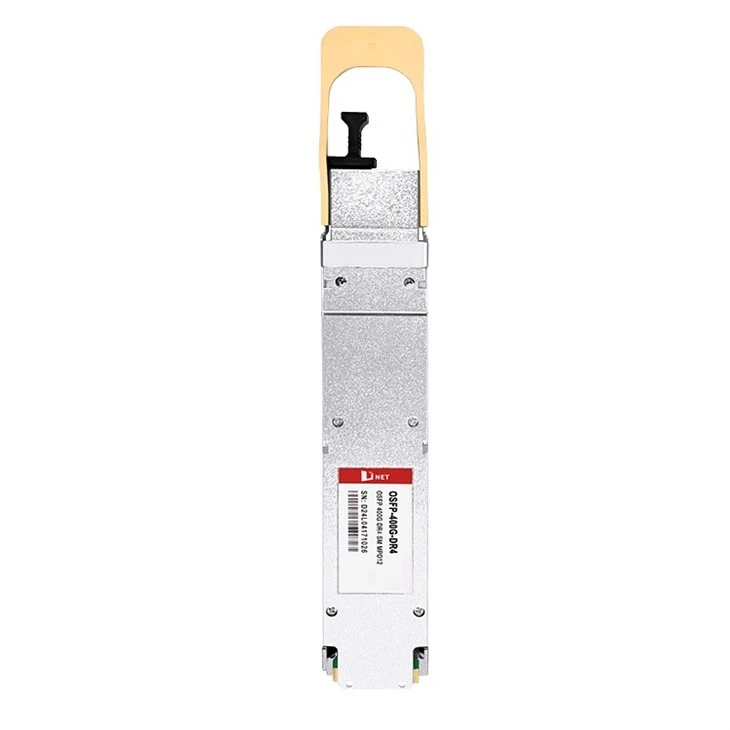

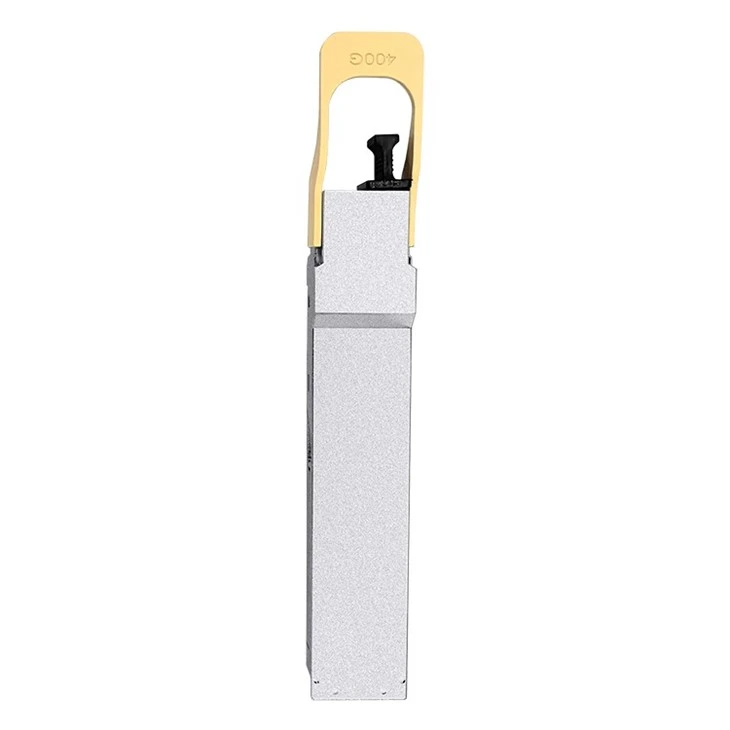

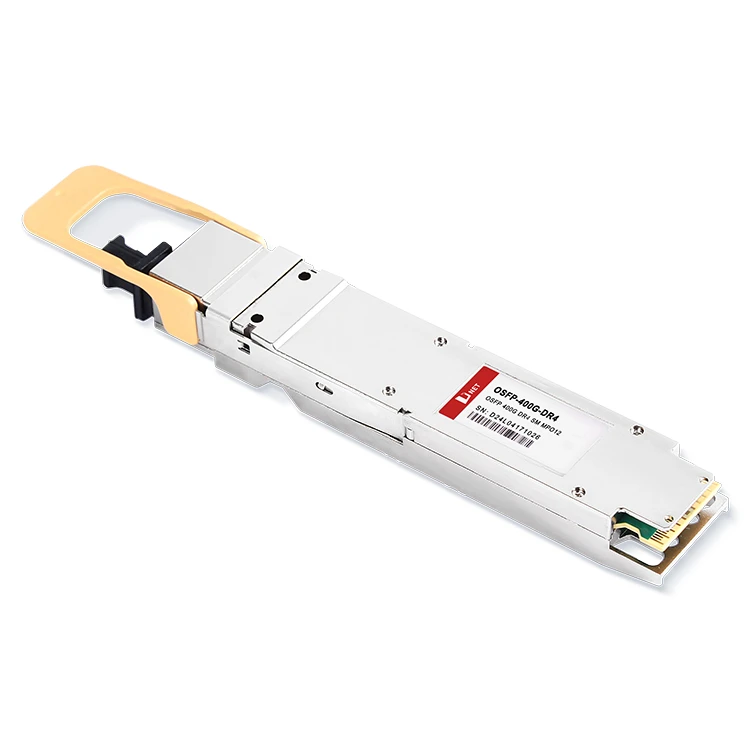

Product Features
● Form Factor: Hot-pluggable OSFP form factor
●Data Rate: Aggregate data rate of 425Gb/s and Breakout data rate of 106.25Gb/s
● Optical Interface: Compliant to 400GBASE-DR4 and 4x100GBASE-DR
● Transmitter: EML 1310nm transmitter
● Electrical Interface: Compliant to 400GAUI-4 and 4x100GAUI-1
● Receiver: PIN and TIA array on the receiver side
●Management Interface: I2C management interface
●Reach: Up to 500m over MPO-12/APC single mode fiber
●Power consumption: 9 W max
●Operating case temperature: 0 ~ 70 ℃
●Power Supply: Single 3.3V power supply
Applications
● 400Gb/s Ethernet
●Data center
●InfiniBand
Product Details
On transmitter side, the module converts four channels of 53.125GBaud (PAM4) electrical data to four channels of parallel optical signals with data rate of 53.125GBaud (PAM4). At receiver side, the module converts four channels of parallel optical signals with data rate of 53.125GBaud (PAM4) into four channels of 53.125GBaud (PAM4) electrical output data.
Hot Tags: 400g osfp dr4 sm mpo12 optical transceiver, China 400g osfp dr4 sm mpo12 optical transceiver manufacturers, suppliers, factory, QSFP-40G-ZR4, ethernet transceiver for 5g network, SFP28-DWDM-C21, DDM40-1U01-C2160, , SFP-10G-BIDI-1550-80
Absolute Maximum Ratings
|
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
|
|
Storage Temperature |
Ts |
-40 |
85 |
°C |
||
|
Storage Relative Humidity (non-condensation) |
RH |
5 |
95 |
% |
||
|
Supply Voltage |
Vcc |
-0.5 |
3.6 |
V |
||
|
Supply Voltage |
PIN |
5.0 |
dBm |
|||
Recommended Operating Conditions
|
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
|
Operating Case Temperature |
TC |
0 |
70 |
.C |
|
|
Signaling Rate, each lane |
53.125 |
GBd |
|||
|
Data Rate Accuracy |
-100 |
100 |
ppm |
||
|
Power Supply Voltage |
Vcc |
-3.135 |
3.3 |
3.465 |
V |
|
Pre-FEC Bit Error Ratio |
2.4E-4 |
||||
|
Transmission Distance |
500 |
m |
Optical Specification
(Transmitter Optical Interface)
|
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
|
|
Signaling rate, each lane |
SR |
53.125+/-100ppm |
GBd |
|||
|
Modulation format |
PAM4 |
|||||
|
Lane wavelength |
λ |
1304.5 |
1311.0 |
1317.5 |
nm |
|
|
Side-mode suppression ratio |
SMSR |
30 |
dB |
|||
|
Average launch power, each lanea |
AOPTX |
-2.9 |
4.0 |
dBm |
||
|
Outer Optical Modulation Amplitude (OMAouter), each laneb |
OMATX |
-0.8 |
4.2 |
dBm |
||
|
Launch power in OMAouter minus TDECQ, each lane |
-2.2 |
dBm |
||||
|
Transmitter eye closure for PAM4 (TECQ), each lane |
TECQ |
3.4 |
dB |
|||
|
Average launch power of OFF transmitter, each lane |
AOPOFF |
-15 |
dB |
|||
|
Extinction ratio, each lane |
ER |
3.5 |
dB |
|||
|
RIN21.4OMA |
-136 |
dB/Hz |
||||
|
Optical return loss tolerance |
RLTol |
21.4 |
dB |
|||
|
Transmitter reflectancec |
Reflectance_ Tx |
-26 |
dB |
|||
Notes:
a.Average launch power, each lane (min) is informative and not the principal indicator of signal strength. A transmitter with launch power below this value cannot be compliant; however, a value above this does not ensure compliance.
b. Even if the TDECQ < 1.4 dB, the OMAouter (min) must exceed these values
(Receiver Optical Interface)
|
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
||
|
Signaling rate, each lane |
SR |
53.125 53.125+/-100ppm |
GBd |
||||
|
Modulation format |
PAM4 |
||||||
|
Lane wavelengths |
λ |
1304.5 |
1311.0 |
1317.5 |
nm |
||
|
Damage threshold, each lanea |
DThd |
5 |
dBm |
||||
|
Average receive power, each laneb |
AOPRX |
-5.9 |
4 |
dBm |
|||
|
Receive power (OMAouter), each lane |
OMARX |
4.2 |
dBm |
||||
|
Receiver reflectance |
Reflectance_Rx |
-26 |
dB |
||||
|
Receiver sensitivity (OMAouter), each lanec |
RxSens |
-4.4 |
dBm |
||||
|
Stressed receiver sensitivity (OMAouter), each laned |
SRS |
-1.9 |
dBm |
||||
|
Conditions of stressed receiver sensitivity test:e |
|||||||
|
Stressed eye closure for PAM4 (SECQ), lane under test |
3.4 |
dB |
|||||
|
OMAouter of each aggressor lane |
4.2 |
dBm |
|||||
|
Rx LOS |
LOS Assert |
-15 |
dBm |
||||
|
LOS De-assert |
-7.5 |
dBm |
|||||
|
LOS Hysteresis |
0.5 |
5 |
dB |
||||
Note:
a. The receiver shall be able to tolerate, without damage, continuous exposure to an optical input signal having this average power level. The receiver does not have to operate correctly at this input power.
b. Receiver sensitivity (OMAouter), each lane (max) is informative and is defined for a transmitter with SECQ of 0.9 dB.
c. Measured with conformance test signal at TP3 for the BER = 2.4E-4. e. These test conditions are for measuring stressed receiver sensitivity. They are not characteristics Of the receiver.
Ordering Information
|
Part Number |
Description |
|
OSFP-400G-DR4 |
400G OSFP DR4,MPO12,500m, EML 1310nm,MMF |
