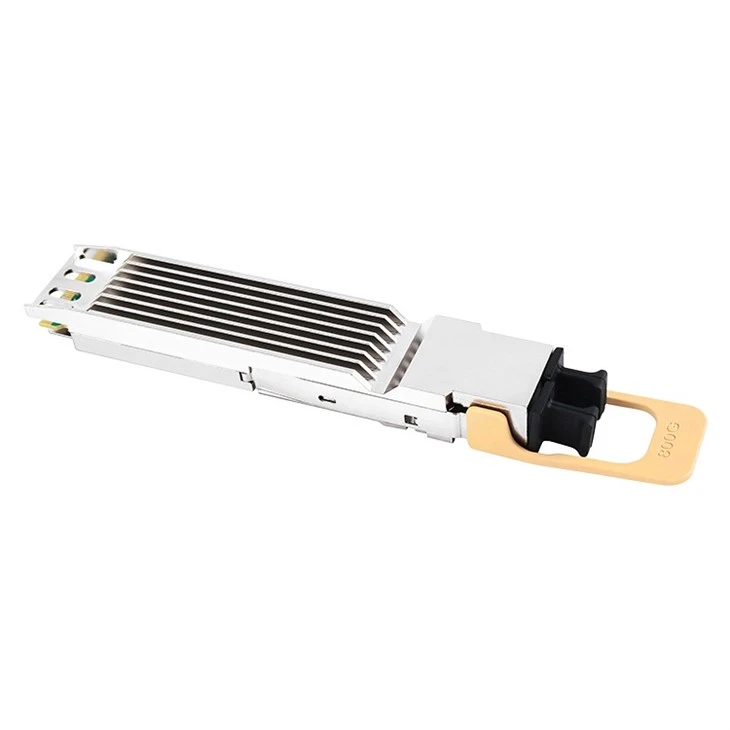

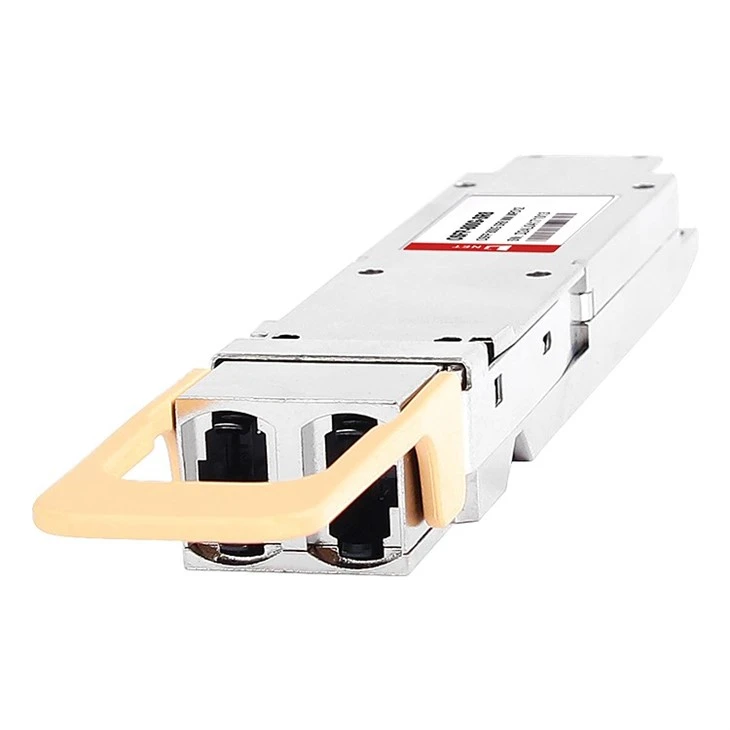

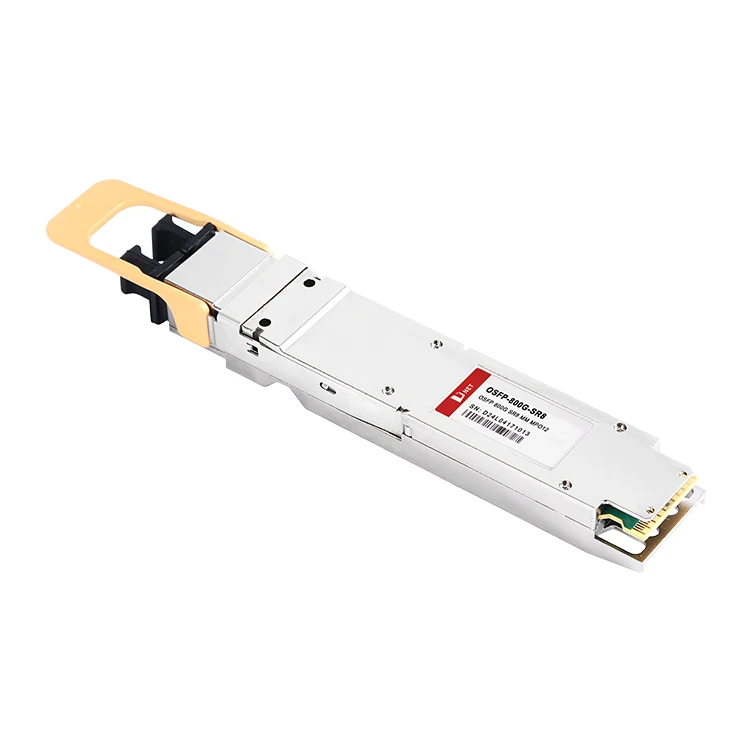

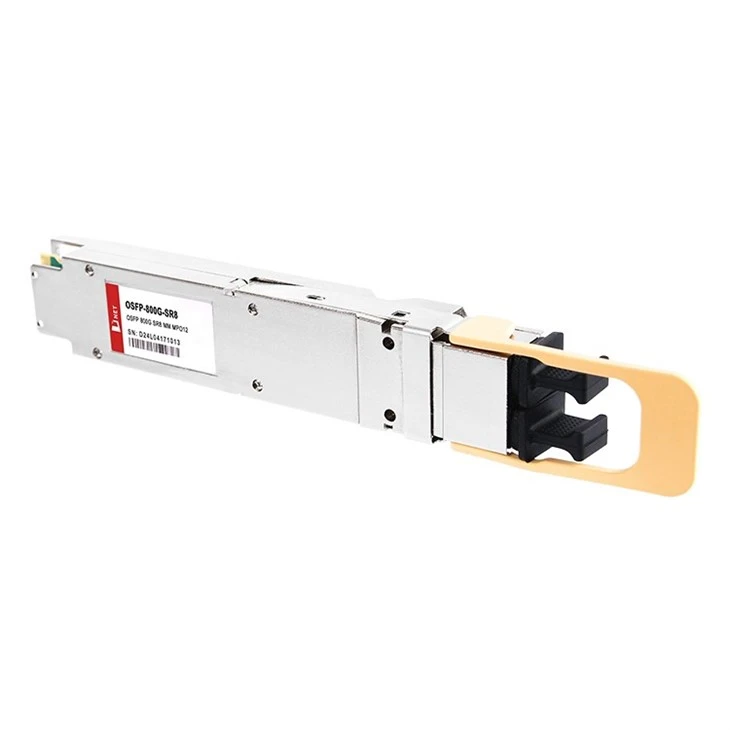

Name: China 800G OSFP SR8 Optical Transceiver Dual MPO-12/APC Manufacturers Suppliers Factory - Ruid Ele-Tech
Brand: D-NET
SKU: 236639095

Description

Technical Parameters

D-net`s Optical Transceiver Module service

● Compatibility Assistance: D-NET offers compatibility services to ensure optical modules are compatible with equipment from leading manufacturers.
● Personalized Services: D-NET provides OEM customization options for its products. Upon request, customers can have colored logo labels tailored to their needs.
● Standard Delivery Period: 3 Days
● Extensive Shipping Solutions: D-NET collaborates with highly reputable courier companies such as SF, FedEx, DHL, UPS, and others to ensure reliable shipping services.

Product Features

OSFP Serial Optical Interface
●8x100G PAM4 retimed 800GAUI-8 electrical interface

● Dual MPO-12 APC connector and MPO16 APC connector are provided
●8 channel VCSEL arrays and 8 channels PIN photodetector arrays
● Maximum link length of 60m on OM3 or 100m on OM4

OSFP MSA Compliant
● Hot Pluggable OSFP form factor
● Compliant to OSFP Module Specification Rev 5.0
● Compliant with CMIS 5.2

Support Protocol
●Compliant with IEEE 802.3db
●Compliant to IEEE 802.3ck

Low Power Consumption
●Less than 8W in temperature range of 0 to 70℃

Applications

●800GBASE-SR8800G Ethernet
●Data center

Hot Tags: 800g osfp sr8 optical transceiver dual mpo-12/apc, China 800g osfp sr8 optical transceiver dual mpo-12/apc manufacturers, suppliers, factory, QSFP28-100G-LR4, ethernet optical module, , QSFP28-100G-ER4

Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit
Storage Temperature	Ts	-40	85	C
Case Operating Temperature	Top	0	70	℃
Relative Humidity (non-condensation)	RH	15	85	%
Supply Voltage	Vcc	-0.5	3.6	V
Receiver Damage Threshold,per Lane	PRdmg	5		dBm

Recommended Operating Conditions

Parameter	Symbol	Min	Max	Unit
Operating Case Temperature	Top	0	70	℃
Relative Humidity(non-condensing)	RH	15	85	%
Power Supply Voltage	Vcc	3.135	3.465	V
Total Power Consumption	Pc		14	W
Supply Current per end			4.465	A
Bit Rate	BR		850	Gbps
Fiber Length onOM3 MMF			60	m
Fiber Length on OM4 MMF			100	m
I2C Clock Frequency	0		400	kHz

Notes:

1,Under condition of 3.465V operating supply voltage, and 70℃case temperature

Optical Specification

(Transmitter Optical Interface)

Parameter		Symbol	Min	Typica	Max	Unit
Data rate per lane		DR		53.125		GBd
Modulation format			PAM4
Center Wavelength		λ	840	860	868	nm
RMS spectral width		σ			0.6	nm
Average Launch power,each lane		Pavg	4.6		4	dBm
Optical Power OMA,each Lane,max		PoMA	3.5			dBm
OMAouter, each lane min	max (TECQ,TDECQ)<1.8 dB		max [-2.6,max(TECQ,TECQ) -4.4]			dBm
OMAouter, each lane min	1.8		max [-2.6,max(TECQ,TECQ) -4.4]			dBm
Transmitter and dispersion eye closure (TDECQ),each lane		TDECQ			4.4	dB
Transmitter eye closure for PAM4 (TECQ),each lane		TECQ			4.4	dB
Fxtinction ratic		ER	2.5			dB
Transmitter power excursion,each lane					2.3	dBm
Optical Return Loss Tolerance		ORLT			14	dB
Optical Power for TX DISABLE						dBm
Encircled fluxb²			≥86%at 19 um ≤30%at 4.5 um
Encircled fluxb²			≥86%at 19 um ≤30%at 4.5 um

(Receiver Optical Interface)

Parameter		Symbo	Min	Typical	Max	Unit
Data rate per lane		BR		53.125		Gbd
Modulation format			PAM4
Center Wavelength		λ	842	885	948	nm
Damage threshold			5			dBm
Average receive power,each lane			-6.4		4	dBm
Receive power,each lane (OMAouter)						dBm
Receiver reflectance		Rr				dB
Receiver sensitivity,each lanei			RS=max(-4.6,TECQ-6.4)			dBm
Stressed receiver sensitivity,each lane					-2	dBm
Rx LOS	Assert		-15			dBm
	De-assert				-7.5	dBm
	Hysteresis		0.5		5	dB

Notes:

1.Receiver sensitivity is informative and is defined for a transmitter with a value of TECQ.Measured with conformance test signal at TP3for BER=2.4E-4 Pre-FEC

Electrical Specification

Parameter	Min	Typical	Max	Unit
Pre FEC Bit Error Ratio			2.4E-4
Post FEC Bit Error Ratio			1E-12
Transmitter (each Lane)
Differential pk-pk Input Voltage tolerance	750			mV
Differential Termination Mismatch			10	%
Eye height	10			mV
Common-mode to differential-mode return loss	EEE802.3ck Equation (120G-1)			dB
Vertical eye closure			12	dB
Effective return loss	7.3			dB
Transition Time	10			ps
Receiver (each Lane)
Differential data output swing	300		900	mVpp
Differential termination mismatch			10	%
Eye height	15			mV
Vertical eye closure			12	dB
Common-mode to differential-mode return loss	EEE802.3ck Equation (120G-1)
Effective return loss	8.5			dB
Transition time	8.5			ps

Ordering Information

Part Number	Description
OSFP-800G-SR8	800G OSFP SR8,MPO,100m, 850nm,MMF,PIN

FAQ

Q: What are the main features of the 800G OSFP SR8?

A: The 800G OSFP SR8 boasts key characteristics such as high-speed data transmission capabilities, low power consumption, a compact design, and compatibility with both Ethernet and InfiniBand protocols.

Q: How does the 800G OSFP SR8 work?

A: The 800G OSFP SR8 uses eight lanes of 100Gbps to transmit data over a single fiber. It supports a range of transmission distances, up to 60 meters over OM3 multi-mode fiber and 100 meters over OM4 multi-mode fiber.

Q: What impact does the 800G SR8 have on network performance?

A:D-NET's 800G SR8 enhances the performance of networks and optimizes bandwidth utilization within high-speed environments, subsequently elevating the work efficiency and processing capabilities of data centers and cloud computing systems. Furthermore, it ensures network stability and reliability.
