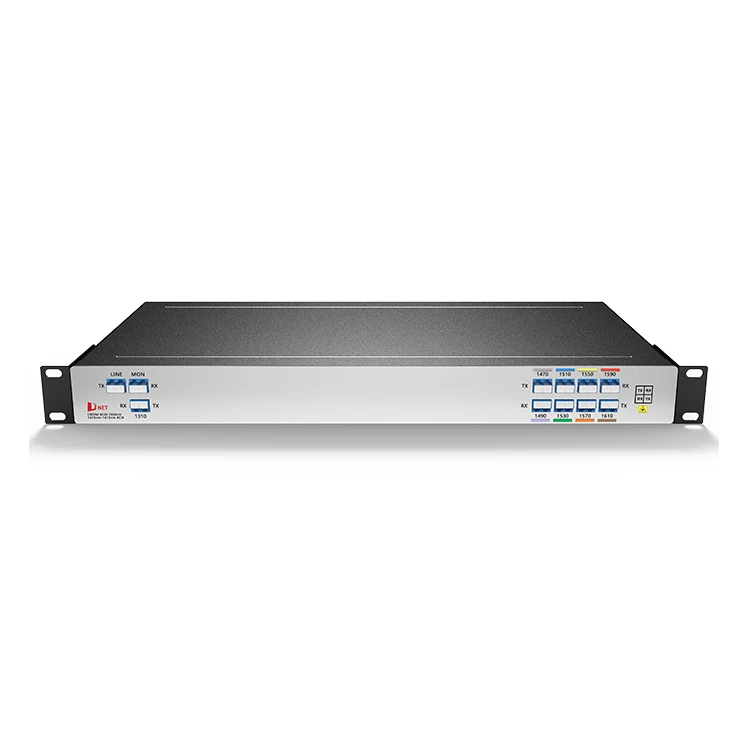

Dual Fiber CWDM Mux And Demux 8CH(1470-1610) With 1310nm 1U Rack

Dual Fiber 8CH 1470nm~1610nm CWDM MUX DEMUX With 1310nm Port, LC/UPC, 1U
CWDM MUX and DEMUX 8CH with 1310nm is a product designed by D-NET for optical communication networks, supporting point-to-point transmission of dual fiber 8-channel differential services with a wide bandwidth of 1310nm ports. The wavelength working range of CWDM MUX AND DEMUX 8CH is 1470nm to 1610nm, covering the commonly used optical communication band.

Send Inquiry

Description

Technical Parameters

Product Details

CWDM MUX and DEMUX DUAL FIBER 1U rack comes with a 1310nm port, with wide band range, supporting 1260nm to 1360nm. 1310nm port supports 40G/ 100G LR4, ER4, ZR4, and 100G BIDI 1270/ 1330 10km, 100G BIDI 1290/ 1330 20KM, and 100G BIDI 1304/1309 30KM.
The CWDM MUX AND DEMUX 8CH comes with a Mon port for monitoring optical signals, network link monitoring, or power monitoring in the system, as well as troubleshooting.

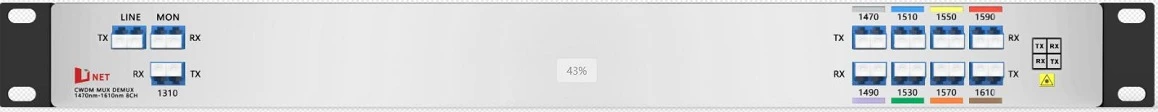

Product Panel

8CH CWDM MUX DEMUX Dual Fiber With 1310nm port and MON port

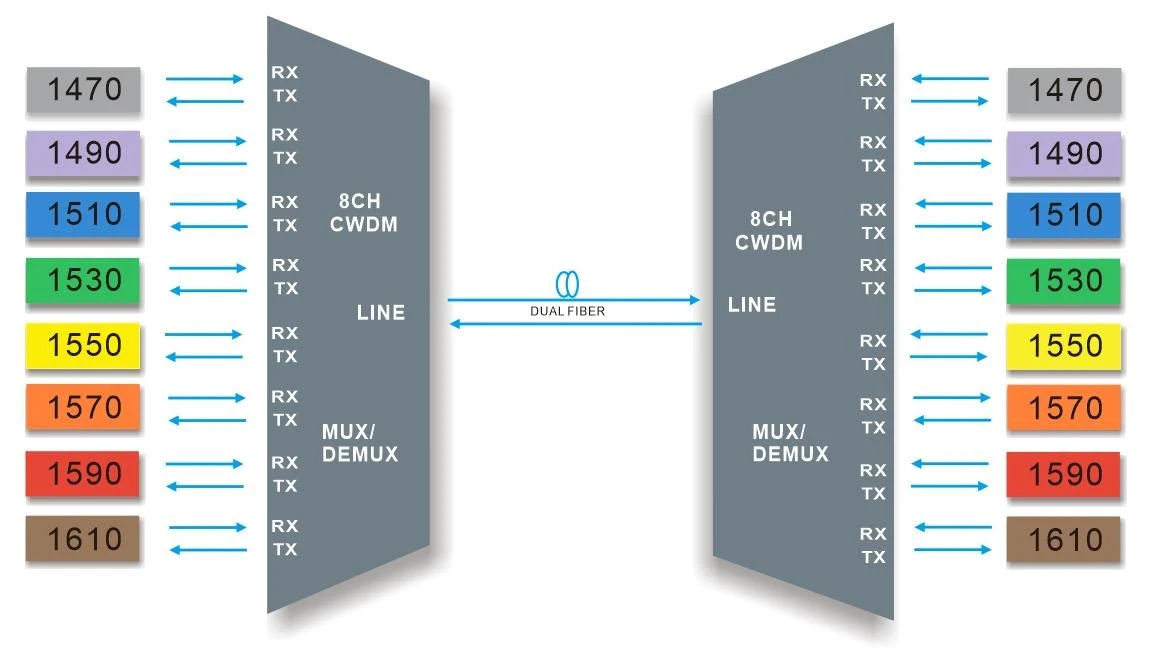

Line Link

8CH CWDM MUX DEMUX Dual fiber transmission

CWDM MUX and DEMUX DUAL FIBER 1U rack, support 8 channels difference service, such applications as 1G/10G Ethernet, SDH/SONET and 8/4/2/1G, in two optical fiber for point-to-point transmission.

Hot Tags: dual fiber cwdm mux and demux 8ch(1470-1610) with 1310nm 1u rack, China dual fiber cwdm mux and demux 8ch(1470-1610) with 1310nm 1u rack manufacturers, suppliers, factory, QSFP28-100G-SR4, SFP28-DWDM-C21, QSFP28-100G-LR4, 10G BIDI SFP , SFP28-25G-SR

Product Specification

Wavelength	8 channels 1470-1610nm	Channel Spacing	20nm
Channel Passband	±6.5nm	Technology	TFF (Thin Film Filter)
Insertion Loss	≤ 2.4dB	Center Wavelength Accuracy	±0.05nm
Return Loss	≥ 45dB	Directivity	≥ 45dB
Polarization Mode Dispersion	≤ 0.1ps	Polarization Dependent Loss	≤ 0.3dB
Channel Isolation	Adjacent ≥30dB Non-adjacent ≥ 45dB	Temperature	Operating -40 to 85°C Storage -40 to 85°C
Net Weight	3.5KG	Dimensions (HxWxD)	44440230mm

Note: Specified with connectors.

Order Information

Product No.	Product Description
CMD8-1U01-4761-31M	CWDM MUX DEMUX 8CH 1470nm~1610nm With 1310nm Port, MON port, Dual fiber, LC/UPC, 1U Rack

Note: We Support Customized Design, please contact us by email.

FAQ

Q: What is Dual Fiber 147nm~1610nm CWDM MUX and DEMUX 8CH with 1310nm Port?

A: CWDM MUX and DEMUX 8CH with 1310nm Port is a commonly used device in fiber optic transmission systems to achieve multiplexing and demultiplexing of multiple signals of different wavelengths. Its working wavelength range is from 1470nm to 1610nm. It has 8CH and also has an additional 1310nm port for transmitting specific 1310nm wavelength range signals.

Q: What is the purpose of this device?

A: CWDM MUX and DEMUX DUAL FIBER 1U rack is widely used in optical networks to increase the transmission capacity of optical fibers. It can multiplex multiple signals of different wavelengths onto a single optical fiber for transmission, and demultiplex these signals at the destination.

Q: Can signals with a wavelength of 1310nm be transmitted simultaneously?

A: Yes, CWDM MUX and DEMUX DUAL FIBER 1U rack has an additional 1310nm port,with wide band range, supporting 1260nm to 1360nm. This port supports 40G/100G LR4, ER4, ZR4, and 100G BIDI 1270/1330 10km, 100G BIDI 1290/1330 20KM, and 100G BIDI 1304/1309 30KM.
