Product Details

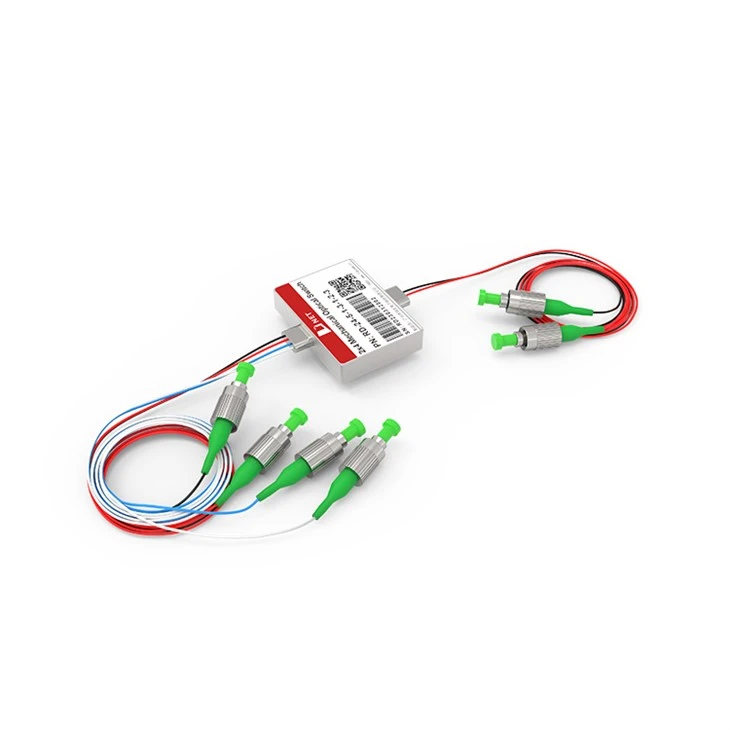

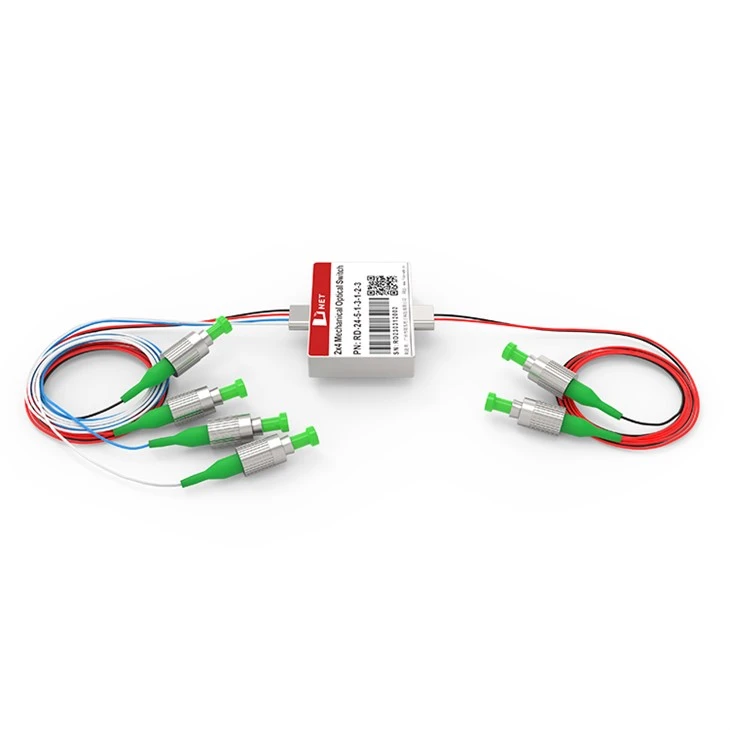

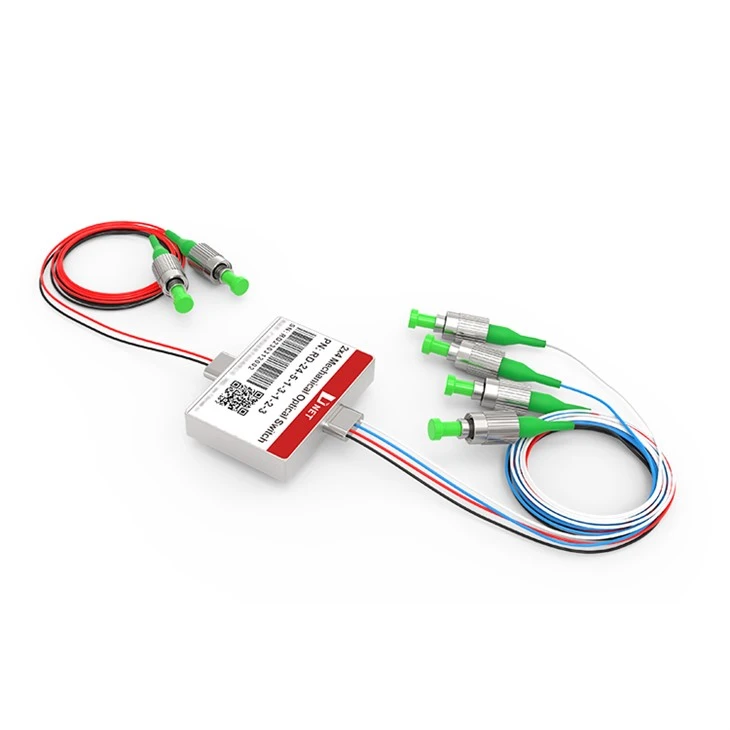

The 2x4 opto-mechanical switch operates within a wavelength range of 1240 to 1680 nanometers (single mode), boasting significant capacity and scalability. It features four output ports, enabling simultaneous connection to multiple optical fibers or devices, thereby accommodating various signal sources and targets. The minimal optical signal loss during switching ensures high-quality and stable optical signal transmission.
Hot Tags: 2x4 opto mechanical optical switch, China 2x4 opto mechanical optical switch manufacturers, suppliers, factory, SFP-10G-CWDM-1470-80, SFP28-25G-LR, QSFP-40G-LR4, QSFP-40G-IR4, QSFP-40G-SR4, Mechanical Optical Switch
Product Specifications
|
Operating Wavelength |
1240~ 1680nm (SM) |
Insertion Loss |
≤1.2dB |
|
Wavelength Dependent Loss |
≤0.25dB |
Polarization Dependent Loss |
≤0.05dB |
|
Temperature Dependent Loss |
≤0.25dB |
Return Loss |
SM≥55dB |
|
Cross Talk |
≥65dB |
Switch Time |
≤8ms |
|
Repeatability |
≤±0.02dB |
Durability |
≥107 times |
|
Operating Voltage |
3 or 5V |
Switch Type |
Latching |
|
Operating Temperature |
-20~＋70℃ |
Storage Temperature |
-40~＋85℃ |
|
Optical Power |
≤500mW |
Dimension |
52.7L×37.2W× 10.0H mm |
Pin Configurations
|
Type |
State |
Electric Drive |
State Sensor |
||||||
|
2 ×4 |
Pin 1 |
Pin 5 |
Pin 6 |
Pin 10 |
Pin 2-3 |
Pin 3-4 |
Pin 7-8 |
Pin 8-9 |
|
|
Latching |
0 |
-- |
-- |
GND |
V+ |
Close |
Open |
Open |
Close |
|
1 |
V+ |
GND |
-- |
-- |
Open |
Close |
Close |
Open |
|
|
Non-Latching |
0 |
-- |
-- |
-- |
-- |
Close |
Open |
Open |
Close |
|
1 |
V+ |
-- |
-- |
GND |
Open |
Close |
Close |
Open |
|
|

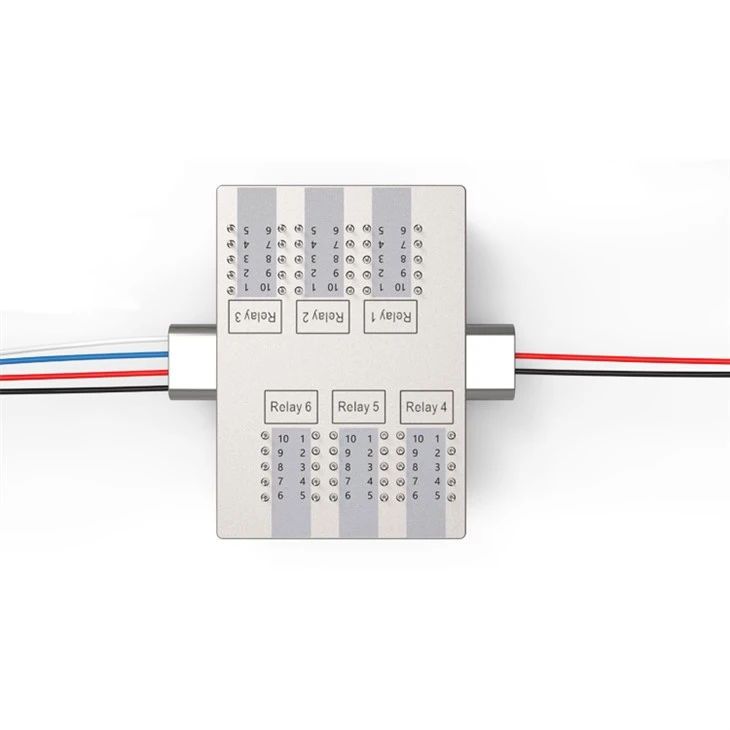

NO. |
Optical Route |
Relay |
|||||
|
1 |
2 |
3 |
4 |
5 |
6 |
||
|
1 |
A-1 ,B-2 |
0 |
0 |
0 |
1 |
0 |
1 |
|
2 |
A-1 ,B-3 |
1 |
1 |
0 |
1 |
1 |
1 |
|
3 |
A-1 ,B-4 |
1 |
1 |
0 |
1 |
1 |
0 |
|
4 |
A-2 ,B-1 |
0 |
1 |
0 |
1 |
0 |
1 |
|
5 |
A-2 ,B-3 |
1 |
1 |
1 |
1 |
1 |
1 |
|
6 |
A-2 ,B-4 |
1 |
1 |
1 |
0 |
1 |
1 |
|
7 |
A-3 ,B-1 |
0 |
0 |
1 |
1 |
1 |
1 |
|
8 |
A-3 ,B-2 |
0 |
1 |
1 |
1 |
1 |
1 |
|
9 |
A-3 ,B-4 |
1 |
1 |
1 |
0 |
0 |
1 |
|
10 |
A-4 ,B-1 |
0 |
0 |
1 |
1 |
1 |
0 |
|
11 |
A-4 ,B-2 |
0 |
1 |
1 |
1 |
1 |
0 |
|
12 |
A-4 ,B-3 |
1 |
1 |
1 |
0 |
0 |
0 |

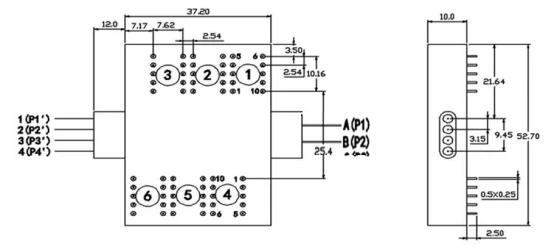

Mechanical Dimensions (Unit:mm)
Optical Route
Ordering Information
|
RD-FSW |
-2x4- |
-Wavelength- |
-Switch Type- |
-Voltage- |
-Fiber Type- |
-Package- |
-Fiber length- |
-Connector - |
|
1060＝ 1 C ＋L＝2 1310 ＝3 1410＝4 1550 ＝5 650＝6 780＝7 1260-1610=A 1310/ 1550＝9 850=8 Special ＝0 |
Latching＝ 1 Special ＝0 |
3V=3 5V=5 Special＝0 |
SM28= 1 50/ 125=5 62.5/ 125=6 Special ＝0 |
Bare fiber= 1 900um tube=3 Special＝0 |
0.25m= 1 0.5m=2 1.0m=3 Special＝0 |
None= 1 FC/PC=2 FC/APC=3 SC/PC=4 SC/APC=5 ST/PC=6 LC/PC=7 Duplex LC=8 Special ＝0 |
