Product Details

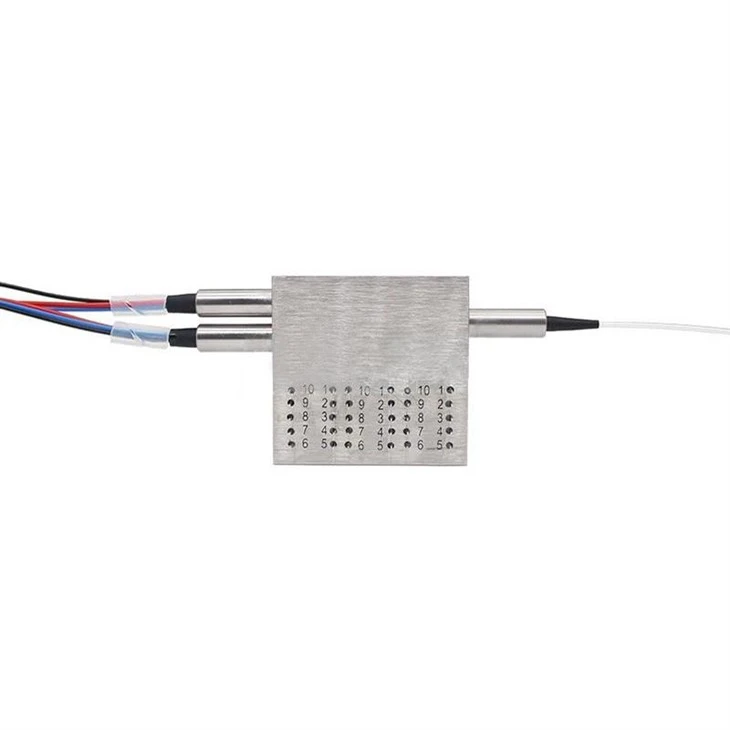

The 1x8 opto-mechanical switch comes in both single-mode and multi-mode versions. The single-mode variant operates within a wavelength range of 1260 to 1620nm, while the multi-mode variant operates at a wavelength of 850nm. This switch is capable of supporting simultaneous multi-channel optical signal transmission, thereby managing greater data traffic in optical communication systems. It is widely utilized in system monitoring, instrumentation, and various other fields.
Hot Tags: 1X8 Optical Switch, China 1X8 Optical Switch manufacturers, suppliers, factory, SFP-10G-BIDI-1490-80, SFP-10G-DWDM-C21-40, QSFP-40G-SR4, QSFP28-100G-ZR4, SFP-1G-ER, SFP-10G-ER
Specifications
|
Operating Wavelength |
1260~ 1620nm (SM) 850nm(MM) |
Insertion Loss |
≤1.2dB |
|
Wavelength Dependent Loss |
≤0.35dB |
Polarization Dependent Loss |
≤0.05dB |
|
Temperature Dependent Loss |
≤0.25dB |
Return Loss |
SM≥50dB MM≥30dB |
|
Cross Talk |
SM≥55dB MM≥35dB |
Switch Time |
≤8ms |
|
Repeatability |
≤±0.02dB |
Durability |
≥107 times |
|
Operating Voltage |
3 or 5V |
Switch Type |
Non-Latching/Latching |
|
Operating Temperature |
-20~＋70℃ |
Storage Temperature |
-40~＋85℃ |
|
Optical Power |
≤500mW |
Dimension |
35.0L×35.0W×9H mm |
Pin Configurations
Latching Type
|
Type |
Optical Route |
Relay |
Electric Drive |
State Sensor |
||||||
|
1X8 |
Pin 1 |
Pin 5 |
Pin 6 |
Pin 10 |
Pin 2-3 |
Pin 3-4 |
Pin 7-8 |
Pin 8-9 |
||
|
Latching |
Input- Port 1(Black) |
Relay1 |
-- |
-- |
GND |
V+ |
Close |
Open |
Open |
Close |
|
Relay2 |
-- |
-- |
GND |
V+ |
Close |
Open |
Open |
Close |
||
|
Relay3 |
V+ |
GND |
-- |
-- |
Open |
Close |
Close |
Open |
||
|
Input- Port 2 (red) |
Relay1 |
-- |
-- |
GND |
V+ |
Close |
Open |
Open |
Close |
|
|
Relay2 |
V+ |
GND |
-- |
-- |
Open |
Close |
Close |
Open |
||
|
Relay3 |
-- |
-- |
GND |
V+ |
Close |
Open |
Open |
Close |
||
|
Input- Port 3(blue) |
Relay1 |
-- |
-- |
GND |
V+ |
Close |
Open |
Open |
Close |
|
|
Relay2 |
-- |
-- |
GND |
V+ |
Close |
Open |
Open |
Close |
||
|
Relay3 |
-- |
-- |
GND |
V+ |
Close |
Open |
Open |
Close |
||
|
Input- Port 4(White) |
Relay1 |
-- |
-- |
GND |
V+ |
Close |
Open |
Open |
Close |
|
|
Relay2 |
V+ |
GND |
-- |
-- |
Open |
Close |
Close |
Open |
||
|
Relay3 |
V+ |
GND |
-- |
-- |
Open |
Close |
Close |
Open |
||
|
Input- Port 5(Black) |
Relay1 |
V+ |
GND |
-- |
-- |
Open |
Close |
Close |
Open |
|
|
Relay2 |
-- |
-- |
GND |
V+ |
Close |
Open |
Open |
Close |
||
|
Relay3 |
V+ |
GND |
-- |
-- |
Open |
Close |
Close |
Open |
||
|
Input- Port 6 (red) |
Relay1 |
V+ |
GND |
-- |
-- |
Open |
Close |
Close |
Open |
|
|
Relay2 |
V+ |
GND |
-- |
-- |
Open |
Close |
Close |
Open |
||
|
Relay3 |
-- |
-- |
GND |
V+ |
Close |
Open |
Open |
Close |
||
|
Input- Port 7(blue) |
Relay1 |
V+ |
GND |
-- |
-- |
Open |
Close |
Close |
Open |
|
|
Relay2 |
-- |
-- |
GND |
V+ |
Close |
Open |
Open |
Close |
||
|
Relay3 |
-- |
-- |
GND |
V+ |
Close |
Open |
Open |
Close |
||
|
Input- Port 8(White) |
Relay1 |
V+ |
GND |
-- |
-- |
Open |
Close |
Close |
Open |
|
|
Relay2 |
V+ |
GND |
-- |
-- |
Open |
Close |
Close |
Open |
||
|
Relay3 |
V+ |
GND |
-- |
-- |
Open |
Close |
Close |
Open |
||
Non-Latching Type
|
Type |
Optical Route |
Relay |
Electric Drive |
State Sensor |
||||||
|
1×8 |
Pin 1 |
Pin 5 |
Pin 6 |
Pin 10 |
Pin 2-3 |
Pin 3-4 |
Pin 7-8 |
Pin 8-9 |
||
|
Non- Latching |
Input- Port 1(Black) |
Relay1 |
-- |
-- |
-- |
-- |
Close |
Open |
Open |
Close |
|
Relay2 |
-- |
-- |
-- |
-- |
Close |
Open |
Open |
Close |
||
|
Relay3 |
V+ |
-- |
-- |
GND |
Open |
Close |
Close |
Open |
||
|
Input- Port 2 (red) |
Relay1 |
-- |
-- |
-- |
-- |
Close |
Open |
Open |
Close |
|
|
Relay2 |
V+ |
-- |
-- |
GND |
Open |
Close |
Close |
Open |
||
|
Relay3 |
-- |
-- |
-- |
-- |
Close |
Open |
Open |
Close |
||
|
Input- Port 3(blue) |
Relay1 |
-- |
-- |
-- |
-- |
Close |
Open |
Open |
Close |
|
|
Relay2 |
-- |
-- |
-- |
-- |
Close |
Open |
Open |
Close |
||
|
Relay3 |
-- |
-- |
-- |
-- |
Close |
Open |
Open |
Close |
||
|
Input- Port 4(White) |
Relay1 |
-- |
-- |
-- |
-- |
Close |
Open |
Open |
Close |
|
|
Relay2 |
V+ |
-- |
-- |
GND |
Open |
Close |
Close |
Open |
||
|
Relay3 |
V+ |
-- |
-- |
GND |
Open |
Close |
Close |
Open |
||
|
Relay1 |
V+ |
-- |
-- |
GND |
Open |
Close |
Close |
Open |
||
|
Relay2 |
-- |
-- |
-- |
-- |
Close |
Open |
Open |
Close |
||
|
Relay3 |
V+ |
-- |
-- |
GND |
Open |
Close |
Close |
Open |
||
|
Relay1 |
V+ |
-- |
-- |
GND |
Open |
Close |
Close |
Open |
||
|
Relay2 |
V+ |
-- |
-- |
GND |
Open |
Close |
Close |
Open |
||
|
Relay3 |
-- |
-- |
-- |
-- |
Close |
Open |
Open |
Close |
||
|
Relay1 |
V+ |
-- |
-- |
GND |
Open |
Close |
Close |
Open |
||
|
Relay2 |
-- |
-- |
-- |
-- |
Close |
Open |
Open |
Close |
||
|
Relay3 |
-- |
-- |
-- |
-- |
Close |
Open |
Open |
Close |
||
|
Relay1 |
V+ |
-- |
-- |
GND |
Open |
Close |
Close |
Open |
||
|
Relay2 |
V+ |
-- |
-- |
GND |
Open |
Close |
Close |
Open |
||
|
Relay3 |
V+ |
-- |
-- |
GND |
Open |
Close |
Close |
Open |
||
Mechanical Dimensions (Unit:mm)
Optical Route
Ordering Information
|
RD-FSW |
1x8 |
Wavelength |
Switch Type |
Voltage |
Fiber Type |
Package |
Fiber length |
Connector |
|
1060 ＝1 C＋L ＝2 1310 ＝3 1410 ＝4 1550 ＝5 650 ＝6 780 ＝7 1260-1610=A 1310/ 1550 ＝9 850=8 Special ＝0 |
Latching ＝1 Non-latching ＝2 MINI Latching ＝3 MINI Non-latching ＝4 Special ＝0 |
3V=3 5V=5 Special ＝0 |
SM28= 1 50/ 125=5 62.5/ 125=6 Special ＝0 |
Bare fiber= 1 900um tube=3 Special ＝0 |
0.25m= 1 0.5m=2 1.0m=3 Special ＝0 |
None= 1 FC/PC=2 FC/APC=3 SC/PC=4 SC/APC=5 ST/PC=6 LC/PC=7 Duplex LC=8 Special ＝0 |
