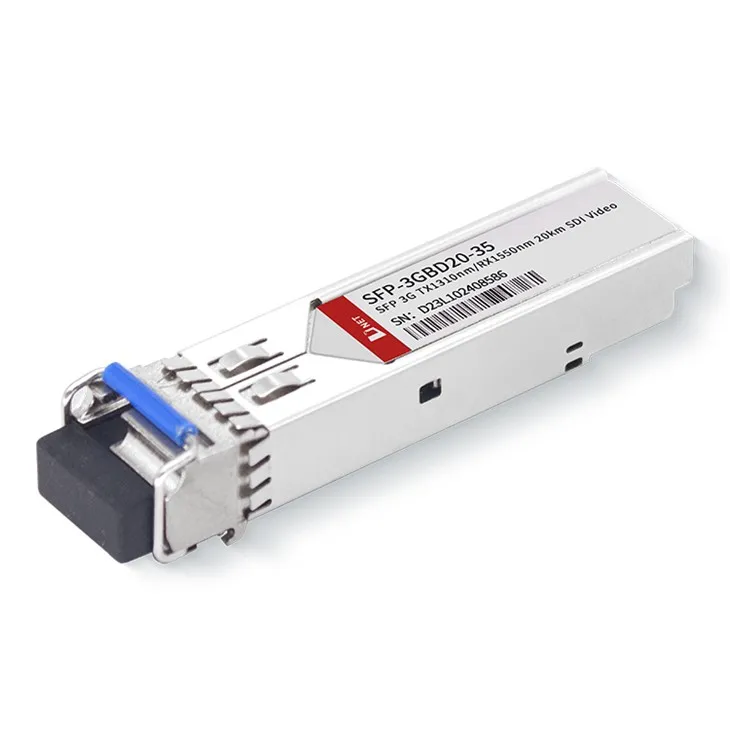

D-net`s 12G Video Optical Transceiver Module Service
● Compatibility Assistance: D-NET offers compatibility services to ensure optical modules are compatible with equipment from leading manufacturers.
● Personalized Services: D-NET provides OEM customization options for its products. Upon request, customers can have colored logo labels tailored to their needs.
● Standard Delivery Period: 3 Days
● Extensive Shipping Solutions: D-NET collaborates with highly reputable courier companies such as SF, FedEx, DHL, UPS, and others to ensure reliable shipping services.
Features
● Provides support for a 12Gb/s serial optical interface.
● Capable of transmitting data up to 10 kilometers on single-mode fiber (SMF).
● Equipped with a 1310nm DFB laser and a PIN receiver.
● Designed for hot-plug functionality with an SFP+ form factor.
● Features an SFI high-speed electrical interface.
● Incorporates built-in digital diagnostic capabilities.
● Operates with a single +3.3V power supply.
● Consumes less than 1.0 watt of power.
● Suitable for operating within a case temperature range of -5 to +70 degrees Celsius.
● Comes in an SFP+ MSA package with dual LC connectors.
Applications
● 12GBASE-LR/LW 10G Ethernet
● HD Camera
Absolute Maximum Ratings
Table 2. Absolute Maximum Ratings
(Exceeding the limits below may damage the transceiver module permanently)
|
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
Notes |
|
Maximum Supply Voltage |
VCC |
-0.5 |
- |
+4.0 |
V |
|
|
Storage Temperature |
TS |
-40 |
- |
+85 |
°C |
|
|
Case Operating Temperature |
TA |
-10 |
- |
+75 |
°C |
|
|
Relative Humidity |
RH |
5 |
- |
85 |
% |
1 |
Recommend Operation Environment
Table 3. Recommend Operation Environment
|
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
Notes |
|
Data Rate |
BR |
- |
12 |
- |
Gbps |
|
|
Power Supply Voltage |
VCC |
3.13 |
3.3 |
3.47 |
V |
|
|
Power Supply Current |
ICC |
- |
- |
300 |
mA |
|
|
Power Dissipation |
PD |
- |
- |
1.0 |
W |
|
|
Case Operating Temperature |
TA |
-5 |
- |
+70 |
°C |
|
|
Transmission Distance |
TD |
- |
- |
10 |
km |
1 |
Notes:
1. Measured with ITU-T G.652 SMF
Optical Characteristics
|
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
Notes |
|
Transmitter |
||||||
|
Optical Center Wavelength |
λC |
1290 |
1310 |
1330 |
nm |
|
|
Data Rate |
BR |
- |
12 |
- |
Gbps |
|
|
Average Output Power |
PO |
-8.2 |
- |
+0.5 |
dBm |
1 |
|
Optical Modulation Amplitude |
POMA |
-5.2 |
- |
- |
dBm |
1 |
|
Optical Extinction Ratio |
ER |
3.5 |
5.0 |
- |
dB |
2 |
|
RMS Spectral Width (-20dB) |
Δλ |
- |
- |
1 |
nm |
|
|
Side Mode Suppression Ratio |
SMSR |
30 |
- |
- |
dB |
|
|
Optical Rise/Fall time 20%~80% |
Tr/Tf |
- |
- |
26 |
ps |
|
|
Data Dependent J itter |
DDJ |
- |
- |
0.10 |
UI |
|
|
Total J itte |
TJ |
- |
- |
0.28 |
UI |
|
|
Transmitter and Dispersion Penalty |
TDP |
- |
- |
3.2 |
dB |
|
|
Average Launch power of Tx OFF |
POFF |
- |
- |
-30 |
dBm |
|
|
Optical Eye Mask |
Compliant with IEEE 802.3ae-2005 and ITU-T G.691 |
|||||
|
Receiver |
||||||
|
Center Wavelength Range |
λC |
1260 |
- |
1620 |
nm |
|
|
Data Rate |
BR |
- |
12 |
- |
Gbps |
|
|
Receiver Sensitivity |
RSEN |
- |
- |
-14.4 |
dBm |
3 |
|
Stressed Receiver Sensitivity (OMA) |
RSENS |
- |
- |
-12.6 |
dBm |
|
|
Maximum Input Power |
PMAX |
0.5 |
- |
- |
dB |
3 |
|
LOS Assert |
LOSA |
-28 |
- |
- |
dBm |
|
|
LOS De-Assert |
LOSD |
- |
- |
-16 |
dBm |
|
|
LOS Hysteresis |
LOSH |
0.5 |
- |
5 |
dB |
|
|
Receiver Reflectance |
RR |
- |
- |
-12 |
dB |
|
Notes:
1. The optical power is launched into SMF.
2. Measured with worst ER=3.5dB, RPBS 2^31-1 test pattern @ 10.3125Gbs .
3. Measured with worst ER=3.5dB, RPBS 2^31-1 test pattern @ 10.3125Gbs BER=<10^-12.
Electrical ptical Characteristics
|
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
Notes |
|
Transmitter |
||||||
|
Differential Data Input Amplitude |
VIN, P-P |
180 |
- |
850 |
mVpp |
1 |
|
Input Differential Impedance |
ZIN |
80 |
100 |
120 |
Ω |
|
|
Transmitter Fault Output-High |
VOH |
2.4 |
- |
VCC |
V |
|
|
Transmitter Fault Output-Low |
VOL |
-0.3 |
- |
0.4 |
V |
|
|
Transmitter Disable Voltage- High |
VIH |
2.0 |
- |
VCC |
V |
|
|
Transmitter Disable Voltage- low |
VIL |
0 |
- |
0.8 |
V |
|
|
Receiver |
||||||
|
Differential output voltage swing |
VOUT, P-P |
300 |
- |
850 |
mVpp |
1 |
|
Output Differential Impedance |
ZOUT |
80 |
100 |
120 |
Ω |
|
|
Data~Output Rise/Fall time |
Tr/Tf |
- |
- |
28 |
ps |
2 |
|
Deterministic Jitter |
DJ |
- |
- |
0.42 |
UI |
|
|
Total J itte |
TJ |
- |
- |
0.70 |
UI |
|
|
LOS Output Voltage-High |
VLOSH |
2.0 |
- |
VCC |
V |
3 |
|
LOS Output Voltage-Low |
VLOSL |
- |
- |
0.8 |
V |
3 |
Notes:
1. CML input/output, internally AC-coupled and terminated.
2. Measured with Module Compliance Test Board and OMA test pattern.
3. LOS is an open collector output. Should be pulled up with 4.7kΩ to 10kΩ on the host board. Normal operation is logic 0; loss of signal is logic 1.
Ordering information
|
Part Number |
Product Description |
|
SFP-12GS10-31 |
1310nm DFB, 12Gbps, SMF 10km, -5°C ~ +70°C |
FAQ
Q1: What is 12G video format ?
A : The 12G video format, also known as 12G-SDI, is a Serial Digital Interface standard developed to support higher resolutions, frame rates, and color fidelity. With a transmission rate of 12Gbps, it is particularly suitable for 4K 60p video transmission.
Q2: What is the central wavelength of the 12G video transceiver module ?
A: The central wavelength of the 12G video transceiver module is 1310nm, compatible to SMF , transmit distance up to 10KM .
Q3: Can 12G video transceiver module operate with CWDM mux and demux ?
A : D-net 12G video transceiver module have CWDM kind , central wavelength from 1270nm to 1610nm ,total 18wavelength , fit to CWDM mux and demux .
