FW8800 DCI BOX 200G Muxponder Card

D-net`s DCI BOX Service

●Compatibility Assistance: D-NET offers compatibility services to ensure optical modules are compatible with equipment from leading manufacturers.
●Personalized Services: D-NET provides OEM customization options for its products. Upon request, customers can have colored logo labels tailored to their needs.
●Standard Delivery Period: 3 Days
●Extensive Shipping Solutions: D-NET collaborates with highly reputable courier companies such as SF, FedEx, DHL, UPS, and others to ensure reliable shipping services.

● The board supports two channels of 2*100G to 200G coherent transmission, enabling dual 200G line-side transmission.
● It has adjustable wavelengths and supports a maximum of two channels of 200G with 75GHz * 64 waves or 200G with 100GHz * 48 waves.
● It features flexible coherent modulation technologies: DP-16QAM, DP-8QAM, DP-QPSK.
● It incorporates various FEC error correction technologies: oFEC, CFEC, SCFEC, SDFEC.
● It supports flexible service access functions: 100GE, 100GE KR4, OTU4, and 100G FlexE.
● It provides comprehensive performance monitoring and statistical functions.
● It supports Ethernet RMON performance statistics, DM delay and PRBS detection functions, and OTN PM and SM performance statistics.
● It supports high-precision real-time monitoring of board temperature, voltage, current, and power consumption.
● On the client side, it supports various module interface types: 100GSR4/CWDM4/LR4/PSM4.

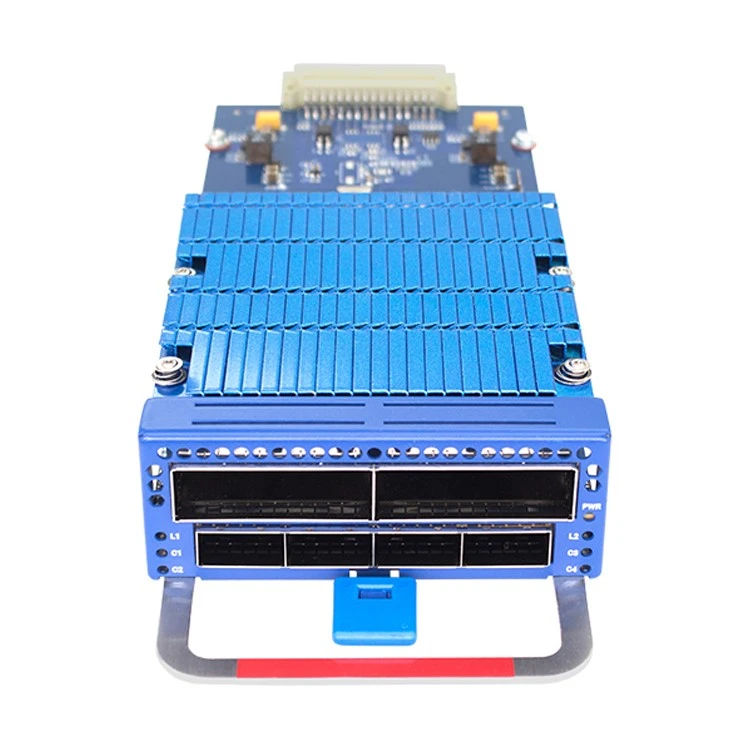

2*100G QSFP28 to 200G CFP2 TMUX card is designed for fiber optic links and provides 200G service access. It can convert two channels of 2*QSFP28 100G to CFP2 200G. The CFP2 coherent optical module has adjustable wavelengths and can be used in conjunction with DWDM multiplexers/demultiplexers to achieve wavelength division multiplexing transmission. This solution offers a high-quality resolution for addressing the challenges of limited fiber resources and high fiber line losses.

Hot Tags: fw8800 dci box 200g muxponder card, China fw8800 dci box 200g muxponder card manufacturers, suppliers, factory, SFP-10G-CWDM-1470-80, DOM80-1U01-C2160, , , SFP-10G-DWDM-C60-40, QSFP56-200G-AOC

1. What is DCI BOX ?
A:The FW8800 DCI (Data Center Interconnect) box serves as a connecting device for linking data centers, often spanning significant distances, to facilitate rapid data exchange between them. Utilizing optical networking technology, DCI boxes typically support a range of network protocols, including Ethernet, Fibre Channel, and InfiniBand. These appliances enable smooth and continuous data transfer between data centers and are frequently employed in cloud computing environments and other applications requiring high bandwidth.

2. What is CFP2 DCO coherent 100G 200G ?
A: CFP2 DCO coherent 100G 200G is a type of high-speed optical transceiver module that is designed for use in data center and telecommunications networks. It combines the functionality of a coherent optical module with a digital signal processing chip to allow for the transmission of high-speed data over longer distances. The CFP2 DCO module supports data transfer rates of 100G and 200G and is capable of transmitting data over fiber optic cables at distances of up to several hundred kilometers. It is commonly used in applications such as long-haul telecommunications and cloud-based data storage and transfer.

3. What is a muxponder?
A: A muxponder is a device used in optical networks to combine (or multiplex) multiple lower-speed signals onto a higher-speed wavelength. It allows for the efficient use of optical network capacity by combining multiple signals onto fewer wavelengths, reducing the number of fibers needed for transmission. D-NET FW8800 DCI box support 200G CFP2 coherent muxponder, it support convert 2X100G QSFP28 to 1X200G CFP2 coherent modules.
