Product Highlight
● Active optical cable with breakout from QSFP56 200G to two QSFP28 100G
● Up to 53.125Gbps data rate per channel PAM4 modulation
● Integrated 850nm VCSEL array and PD array
● DDM function implemented
● Hot-pluggable
● Low power dissipation, <4W on 200G end, <3W on 100G end
● Commercial operating case temperature range: 0℃ to 70 ℃
● Compliant with ROHS2.0
Applications
● Data centers and Cloud Networks
● 200G InfiniBand HDR systems
Hot Tags: QSFP56 200G to 2X100G breakout AOC cable, China QSFP56 200G to 2X100G breakout AOC cable manufacturers, suppliers, factory, QSFP56-2X100G-AOC, QSFP56-2X100G-AOC

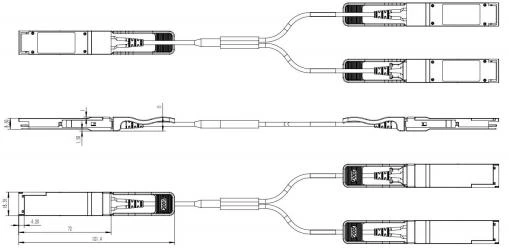

Absolute Maximum Ratings
|
Product |
Modula tion |
Protocol |
Nominal Rate |
Specifications |
|||||
|
Aggregate (Gbps) |
Electrical Lanes (Gbaud) |
ppm |
High Speed Electrical |
Pre-FEC Max BER |
Link |
||||
|
200G end |
PAM4 |
IEEE802.3cd |
212.5 |
26.5625 |
±100 |
200GAUI-4 |
1E-6 for InfiniBand HDR; 2.4E-4 for 200GBAS E-SR4 |
0.5 ~ 100m |
|
|
Per 100G end |
PAM4 |
IEEE802.3cd |
106.25 |
26.5625 |
±100 |
200GAUI-4 |
|||
|
Parameter |
Symbol |
Unit |
Min |
Max |
|
|
Case Operating Temperature |
Top |
℃ |
0 |
70 |
|
|
Storage Temperature Range |
Ts |
℃ |
-40 |
85 |
|
|
Relative Humidity |
RH |
% |
0 |
85 |
|
|
Power Supply Voltage |
Vcc |
V |
-0.5 |
3.6 |
|
Recommended Operating Conditions
|
Parameter |
Symbol |
Unit |
Min |
Typ |
Max |
|
|
Operating Case Temperature Range |
Tca |
oC |
0 |
/ |
70 |
|
|
Power Supply Voltage |
Vcc |
V |
3.135 |
3.3 |
3.465 |
|
Electric Ports Definition
|
Parameter |
Symbol |
Unit |
Min |
Typ |
Max |
Notes |
|
Supply Voltage |
VCC |
V |
3.135 |
3.3 |
3.465 |
|
|
Power Consumption |
Pc |
W |
4 |
200G end |
||
|
3 |
100G end |
|||||
|
Transmitter |
||||||
|
Input Differential Impedance |
RIN |
Ω |
80 |
100 |
120 |
|
|
Single Ended Data Input Swing |
VIN |
mVp-p |
90 |
500 |
||
|
Transmit Disable Voltage |
VDIS |
V |
2 |
VCCHOST |
||
|
Transmit Enable Voltage |
VEN |
V |
VEE |
VEE+0.8 |
||
|
Transmit Fault Assert Voltage |
VFA |
V |
2 |
VCCHOST |
||
|
Transmit Fault De-Assert Voltage |
VFDA |
V |
VEE |
VEE+0.8 |
||
|
Receiver |
||||||
|
Single Ended Data Output Swing |
VOD |
mVp-p |
200 |
500 |
||
|
LOS Fault |
VLOSFT |
V |
2 |
VCCHOST |
||
|
LOS Normal |
VLOSNR |
V |
VEE |
VEE+0.8 |
||
|
Differential termination mismatch |
% |
10 |
||||
|
IIC communication |
||||||
|
IIC Clock frequency |
- |
KHZ |
/ |
100 |
400 |
|
|
clock stretching |
- |
us |
/ |
/ |
500 |
|
Module Memory Map
Compatible with CMIS rev 4.0/ SFF8636
Ordering Information
|
Part Number |
Description |
|
Q56-2Q28-200G-1M |
200G QSFP56 SR4 to 2xQSFP28 SR2 AOC 1M |
|
Q56-2Q28-200G-3M |
200G QSFP56 SR4 to 2xQSFP28 SR2 AOC 3M |
|
Q56-2Q28-200G-5M |
200G QSFP56 SR4 to 2xQSFP28 SR2 AOC 5M |
|
Q56-2Q28-200G-7M |
200G QSFP56 SR4 to 2xQSFP28 SR2 AOC 7M |
|
Q56-2Q28-200G-10M |
200G QSFP56 SR4 to 2xQSFP28 SR2 AOC 10M |
|
Q56-2Q28-200G-15M |
200G QSFP56 SR4 to 2xQSFP28 SR2 AOC 15M |
|
Q56-2Q28-200G-20M |
200G QSFP56 SR4 to 2xQSFP28 SR2 AOC 20M |
|
Q56-2Q28-200G-30M |
200G QSFP56 SR4 to 2xQSFP28 SR2 AOC 30M |
|
Q56-2Q28-200G-40M |
200G QSFP56 SR4 to 2xQSFP28 SR2 AOC 40M |
|
Q56-2Q28-200G-50M |
200G QSFP56 SR4 to 2xQSFP28 SR2 AOC 50M |
|
Q56-2Q28-200G-xxM |
200G QSFP56 SR4 to 2xQSFP28 SR2 AOC xxM |
FAQ
1. What is active optical cable ?
A: An Active Optical Cable (AOC) is a high-speed data transmission cable that integrates optical fiber technology with electrical components to enable the transfer of data signals over extended distances. It is frequently utilized in applications like data centers, high-performance computing, and networking systems.
2. What is the difference between active and passive cables?
A: In summary, while both active and passive cables serve the purpose of transmitting signals, active cables incorporate built-in electronic components to actively manage and enhance the signal, while passive cables rely solely on the inherent properties of the conductive material for signal transmission.
3. What is the maximum length of active optical cable ?
A: The maximum length of an active optical cable can vary depending on factors such as the cable quality, data rate, and the specific technology used. However, active optical cables have the potential to reach significantly longer transmission distances compared to passive cables. In some cases, active optical cables can achieve transmission distances of up to several hundred meters or even kilometers, depending on the technology and application. It's important to note that the specific maximum length will depend on the product specifications provided by the manufacturer of the active optical cable.
